- Combination Groove – All Browning B5V Sheaves permit the running of A, 4L, B, 5L& 5V Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
- Broad horsepower coverage – The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives
- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- New Casting design – The B5V castings were developed using CAD and Finite Elements Analysis to determine where to add and eliminate material.

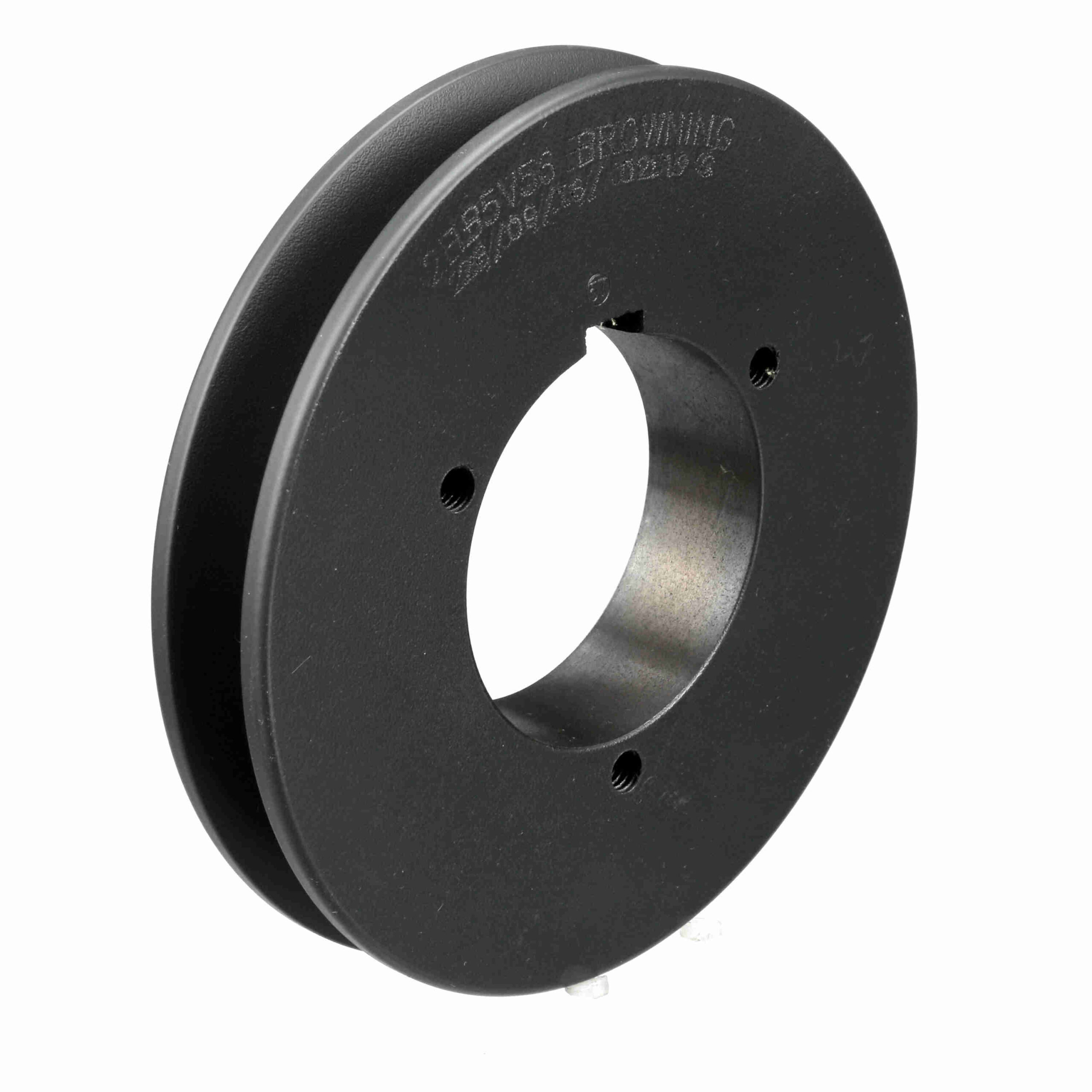

1B5V56
Browning 1 Groove Cast Iron Bushed Bore Multiple Sheave – 1B5V56
$114.51
Out of stock
Out of stock
| Pitch Diameter (B): | 5.9 | Pulley Material: | Cast Iron |
|---|---|---|---|
| Pitch Diameter (A): | 5.4 | Pitch Diameter (5V): | 5.7 |
| Overall Length (in): | 2.140625 in | Number of Grooves: | 1 |
| Model Name: | 1B5V-SheaveMaster | Material: | Cast Iron |
| Bushing Used: | B | Outside Diameter (in): | 5.88 in |
| Datum Diameter (B): | 5.6 | Datum Diameter (A): | 5.2 |
| Belt Section: | A, B, 5V | Product Type: | Multiple Sheaves |
| Bore (Min) (in): | 0.5 in | Bore Type: | Split Taper Bushed |
| Bushing Bore Range: | 0.500 - 2.4375 | Pulley Construction: | Plain |
| Keyway Size: | .500 | Face Width (in): | 1 |
| Overall Width (in): | 2.1875 | UPC: | 662289033942 |
| Weight: | 4.45 LB | Packaged Length: | 6.10 Inches |
| Packaged Width: | 6.20 Inches | Packaged Height: | 1.70 Inches |
| HTC: | 8483.50.9040 | Country of Origin: | Mexico |
