- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Browning type A steel plate roller chain sprockets are offered in single pitch range of 25-200
60A27

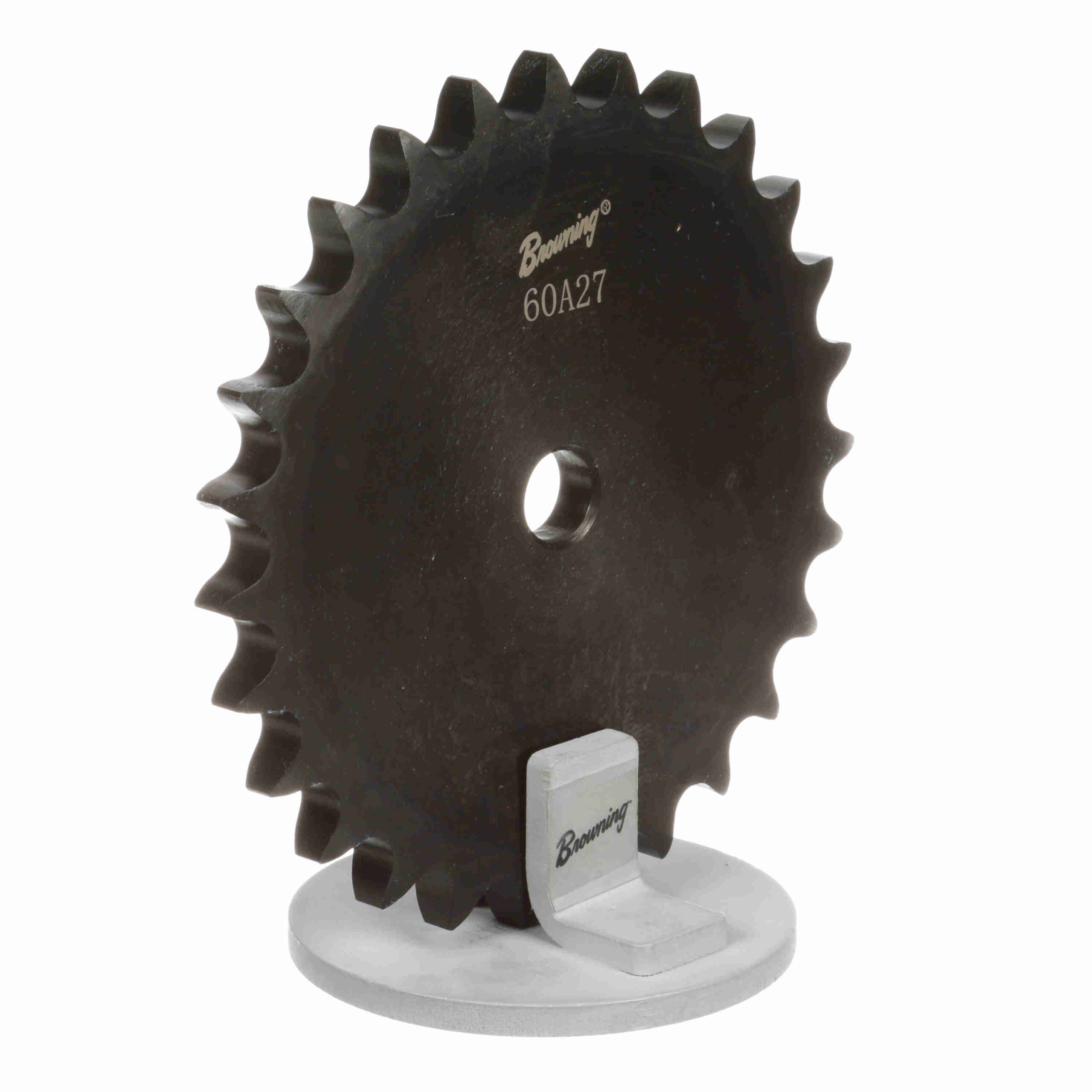

Browning Steel Minimum Plain Bore Roller Chain Sprocket – 60A27
$83.86
Out of stock
Out of stock
| Number of teeth: | 27 | Material: | Steel |
|---|---|---|---|
| Chain Pitch (in): | 0.75 in | Product Type: | Type "A" Plate Sprocket |
| Chain Used: | No. 60, 3/4 in. Pitch ANSI Chain | Bore Type: | Minimum Plain Bore |
| Outside Diameter (in): | 6.867 in | Pitch Diameter (in): | 6.460343 in |
| Number of Strands/Width: | 1 | Bore (in): | 0.75 in |
| Hub Type: | Type A | Length Through Bore (in): | 0.459 in |
| Maximum Bore (in): | 2.75 | Hardened Teeth: | With Hardened Teeth |
| Width Across Tooth Sets: | 0.459 | Number of Hubs: | 0 |
| UPC: | 662289221974 | Weight: | 4.09 LB |
| Packaged Length: | 7.00 Inches | Packaged Width: | 7.00 Inches |
| Packaged Height: | 0.70 Inches | HTC: | 8483.90.1050 |
| Country of Origin: | China |
