- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Sheaves are Statically Balanced – All sheaves are statically balanced to assure smooth, vibration free performance.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
5TC80

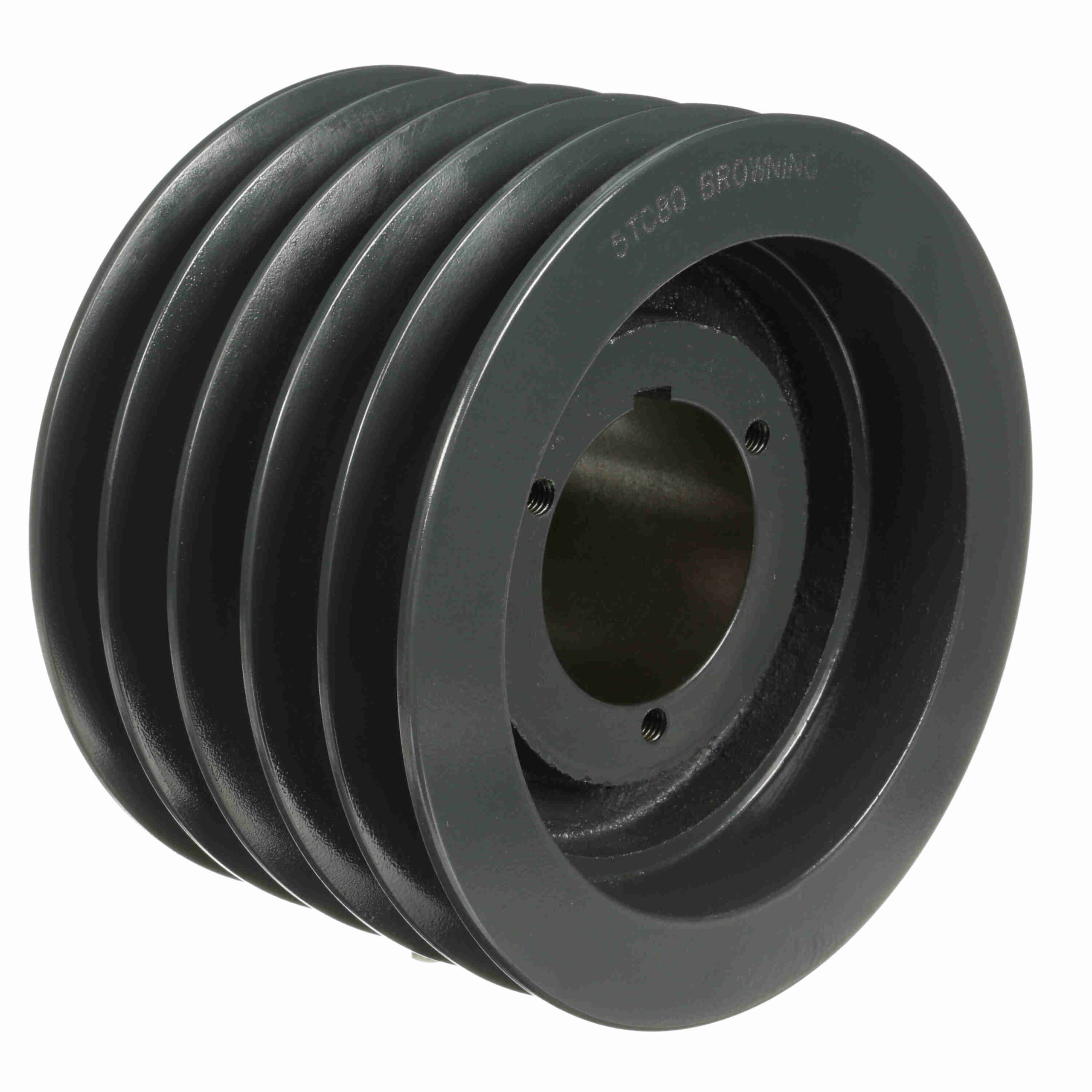

Browning 5 Groove Cast Iron Bushed Bore Multiple Sheave – 5TC80
$570.05
Availability: 2 in stock
Availability: 2 in stock
| Pitch Diameter (C): | 8.4 | Outside Diameter (in): | 8.4 in |
|---|---|---|---|
| Overall Length (in): | 5.25 in | Material: | Cast Iron |
| Model Name: | 5TC-L_Sheave_Master | Number of Grooves: | 5 |
| Pulley Material: | Cast Iron | Datum Diameter (C): | 8 |
| Bushing Used: | Q2 | Bore (Min) (in): | 1 in |
| Product Type: | Multiple Sheaves | Belt Section: | C |
| Bore Type: | Split Taper Bushed | Pulley Construction: | Webbed |
| Bushing Bore Range: | 1.000 - 2.625 | Overall Width (in): | 5.25 |
| Face Width (in): | 5.25 | Keyway Size: | .500 |
| UPC: | 662289293001 | Weight: | 32.02 LB |
| Packaged Length: | 8.50 Inches | Packaged Width: | 8.50 Inches |
| Packaged Height: | 5.25 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
