- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Sheaves are Statically Balanced – All sheaves are statically balanced to assure smooth, vibration free performance.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
3C56P

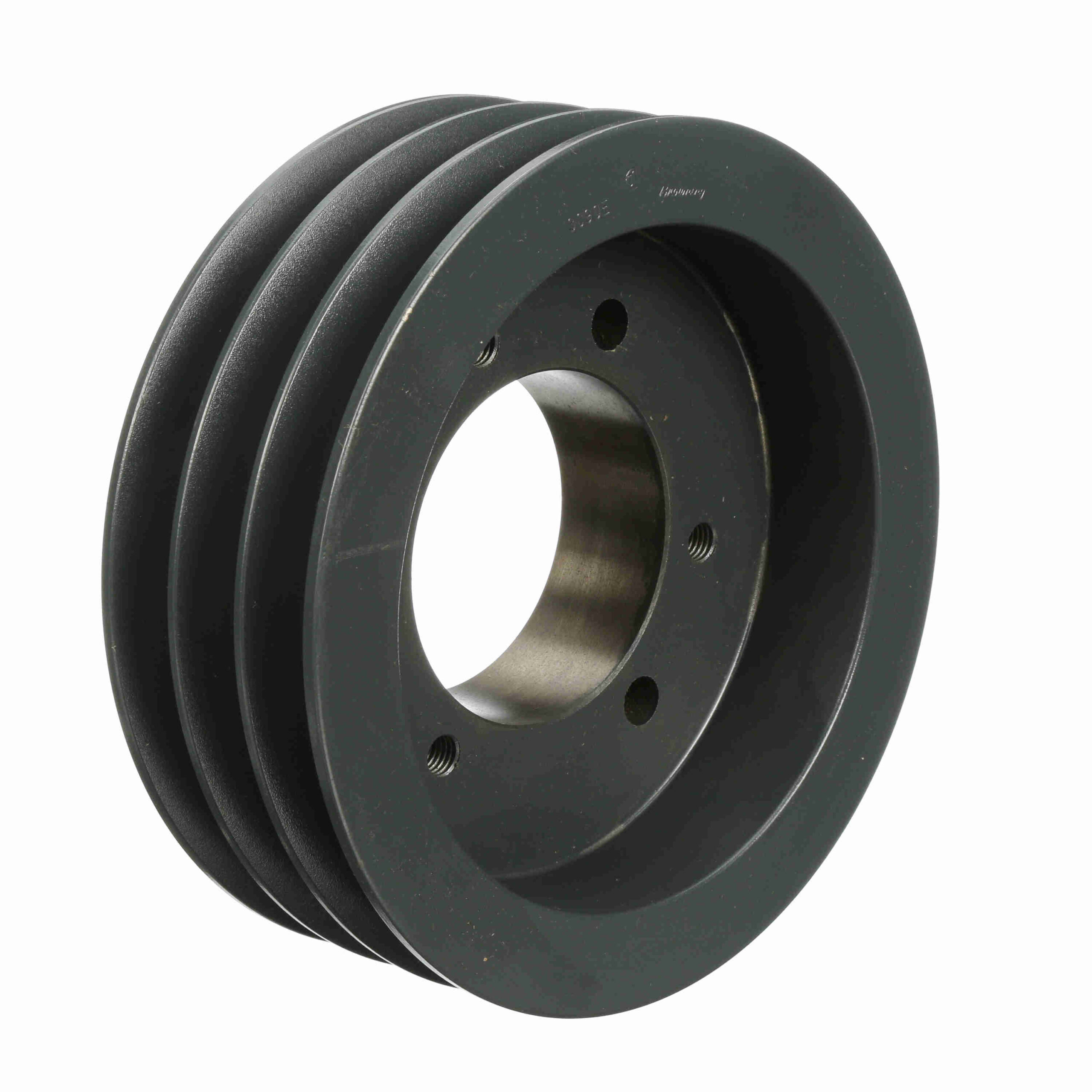

Browning 3 Groove Cast Iron Bushed Bore Multiple Sheave – 3C56P
Out of stock
| Datum Diameter (C): | 5.6 | Overall Length (in): | 3.453125 in |
|---|---|---|---|
| Number of Grooves: | 3 | Pulley Material: | Cast Iron |
| Bushing Used: | P2 | Pitch Diameter (C): | 6 |
| Outside Diameter (in): | 6 in | Material: | Cast Iron |
| Bore (Min) (in): | 0.75 in | Belt Section: | C |
| Product Type: | Multiple Sheaves | Bore Type: | Split Taper Bushed |
| Keyway Size: | .375 | Bushing Bore Range: | 0.750 - 1.750 |
| UPC: | 662289185702 | Weight: | 13.12 LB |
| Packaged Length: | 6.06 Inches | Packaged Width: | 6.06 Inches |
| Packaged Height: | 3.25 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
