- Unmatched Quality and Performance in Morse Brand Chain
- Reduces friction, heat and elongation due to lubrincant retention
- Reduces friction, heat and elongation due to lubrincant retention
50XLO 10 FT

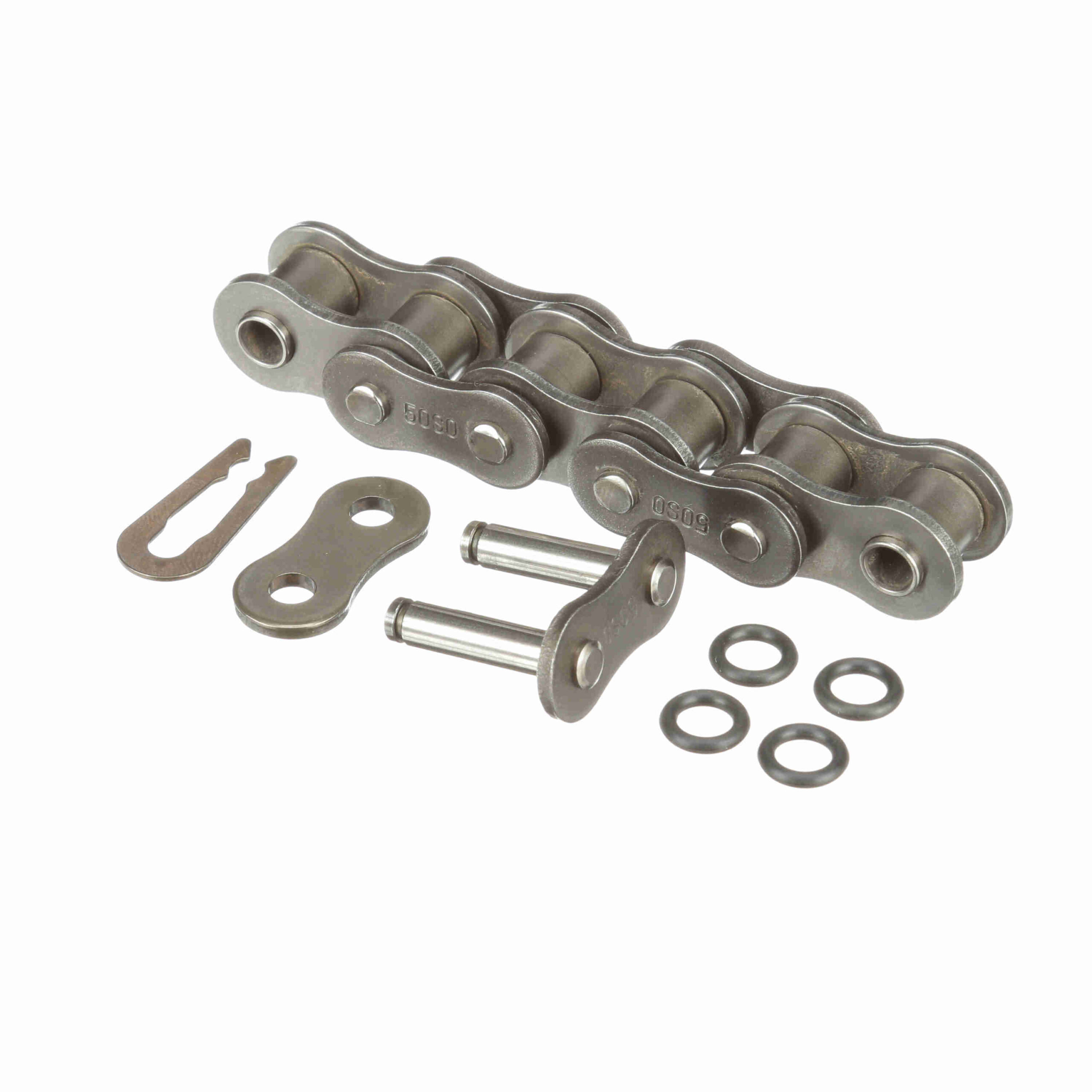

Morse O Ring Cottered Roller Chain – 50XLO 10 FT
$66.50
Out of stock
Out of stock
| Pin Diameter (in): | 0.2 in | Material: | Carbon Steel |
|---|---|---|---|
| Number of Connecting Links Included: | 1 | Plate Thickness: | 0.08 |
| Roller Diameter (in): | 0.4 in | Side Plate Cfg.: | Hourglass |
| Inside Plate Height: | 0.594 | Chain Construction: | Cottered |
| Number of Strands/Width: | 1 | Width Over Pins/Total Width: | 0.95 |
| Average Ultimate Tensile Strength (psi): | 6, 500 | Chain Size: | 50 |
| Centerline to Outside of cotter Pin: | 0.505 | Roller Width (in): | 0.375 in |
| Centerline to Opposite cotter Pin Side: | 0.445 | Chain Type: | O Ring |
| Chain Pitch (in): | 0.625 in | Product Type: | Roller Chain |
| Coating: | Uncoated | Total Length: | 10 FT ft |
| Measurement System: | Imperial | Standard Met: | ANSI B29.1 |
| Pin Length - Riveted: | 0.95 | UPC: | 662460389851 |
| Weight: | 0.83 LB | Packaged Length: | 9.30 Inches |
| Packaged Width: | 9.50 Inches | Packaged Height: | 1.40 Inches |
| HTC: | 7315.11.0060 | Country of Origin: | Japan |
