- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
50Q70

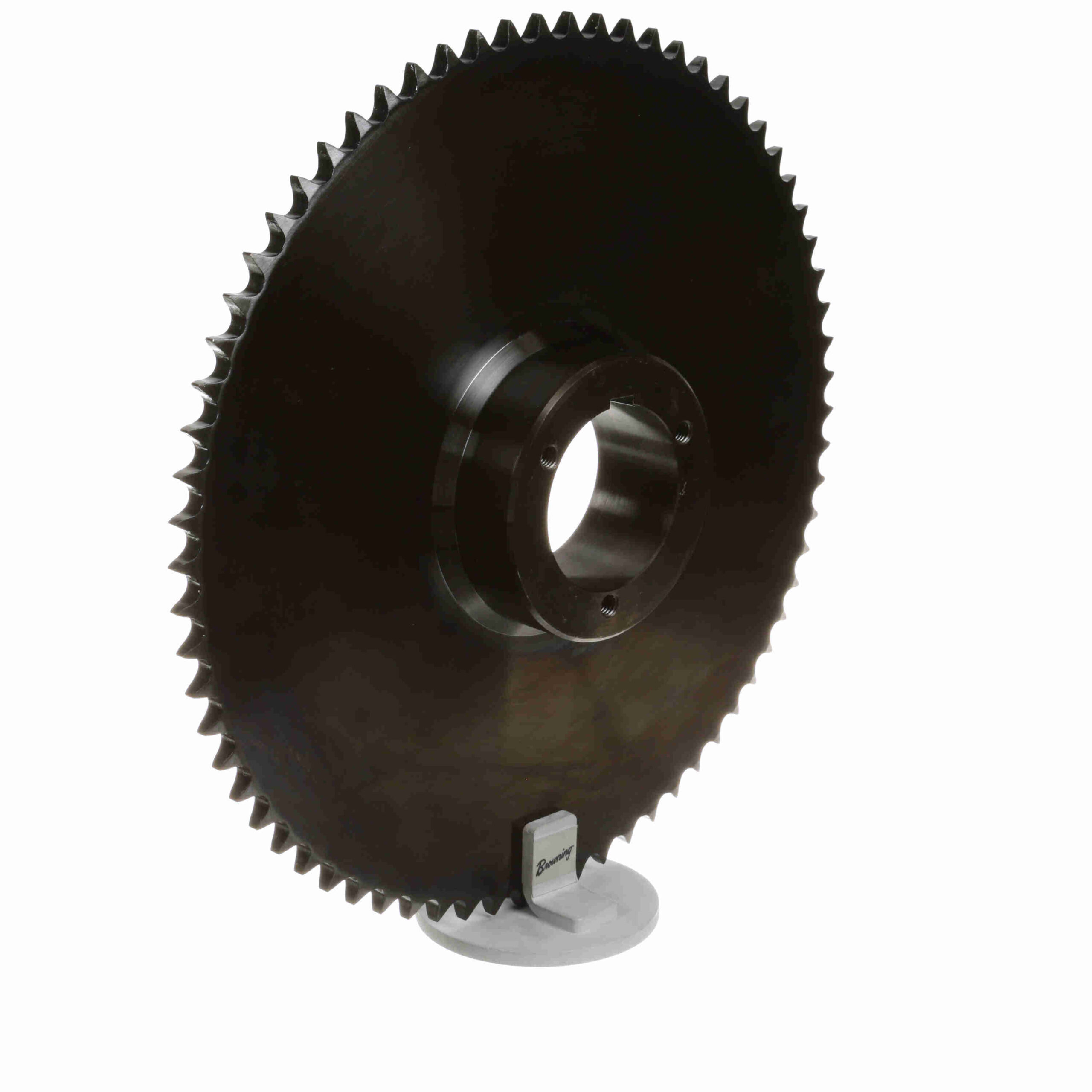

Browning Steel Bushed Bore Roller Chain Sprocket – 50Q70
$414.41
Out of stock
Out of stock
| Bore (Min) (in): | 0.75 in | Pitch Diameter (in): | 13.931 in |
|---|---|---|---|
| Number of teeth: | 70 | Bore (Max) (in): | 2.6875 in |
| Product Type: | Bushed Roller Chain Sprocket | Bushing Used: | Split Taper |
| Chain Used: | No. 50, 5/8 in. Pitch ANSI Chain | Chain Pitch (in): | 0.625 in |
| Material: | Steel | Bore Type: | Bushed Bore |
| Outside Diameter (in): | 14.292 in | Overall Length (in): | 2.828125 in |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 4.125 in |
| Maximum Bore (in): | 2.6875 | Minimum Bore (in): | 0.75 |
| Width Across Tooth Sets: | 0.343 | Number of Hubs: | 1 |
| Pitch Type: | Single | UPC: | 662289135844 |
| Weight: | 17.60 LB | Packaged Length: | 14.29 Inches |
| Packaged Width: | 14.29 Inches | Packaged Height: | 2.78 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
