- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Browning type A steel plate roller chain sprockets are offered in single pitch range of 25-200
50A48

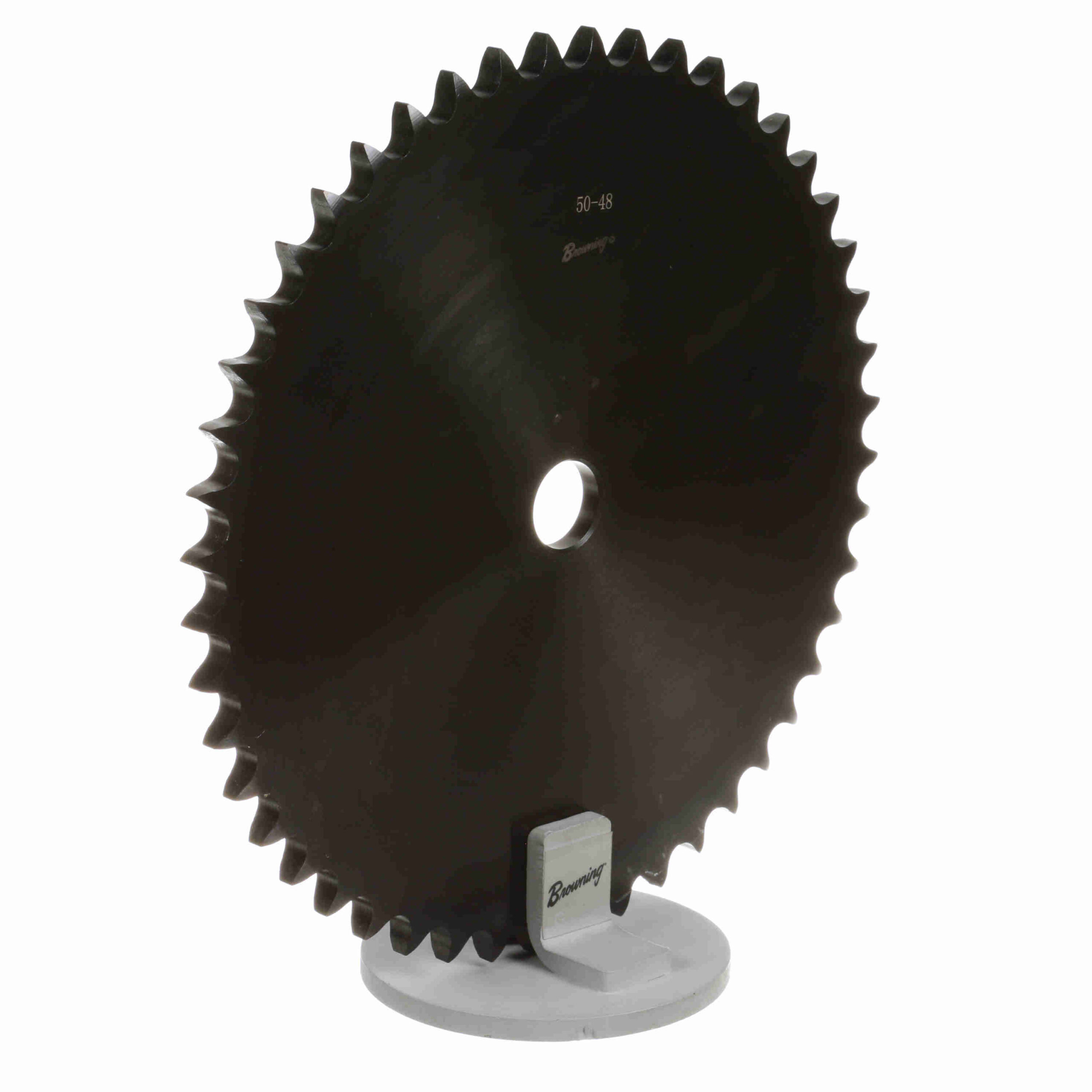

Browning Steel Minimum Plain Bore Roller Chain Sprocket – 50A48
$88.05
Availability: 1 in stock
Availability: 1 in stock
| Number of teeth: | 48 | Chain Pitch (in): | 0.625 in |
|---|---|---|---|
| Material: | Steel | Product Type: | Type "A" Plate Sprocket |
| Chain Used: | No. 50, 5/8 in. Pitch ANSI Chain | Bore Type: | Minimum Plain Bore |
| Outside Diameter (in): | 9.911 in | Pitch Diameter (in): | 9.556118 in |
| Number of Strands/Width: | 1 | Bore (in): | 0.9375 in |
| Hub Type: | Type A | Length Through Bore (in): | 0.343 in |
| Maximum Bore (in): | 2.5 | Width Across Tooth Sets: | 0.343 |
| Number of Hubs: | 0 | Hardened Teeth: | Non-Hardened Teeth |
| UPC: | 662289121670 | Weight: | 6.77 LB |
| Packaged Length: | 10.40 Inches | Packaged Width: | 10.60 Inches |
| Packaged Height: | 1.30 Inches | HTC: | 8483.90.1050 |
| Country of Origin: | China |
