- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Combination Groove – All Browning B Sheaves permit the running of A& B Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
6TB136

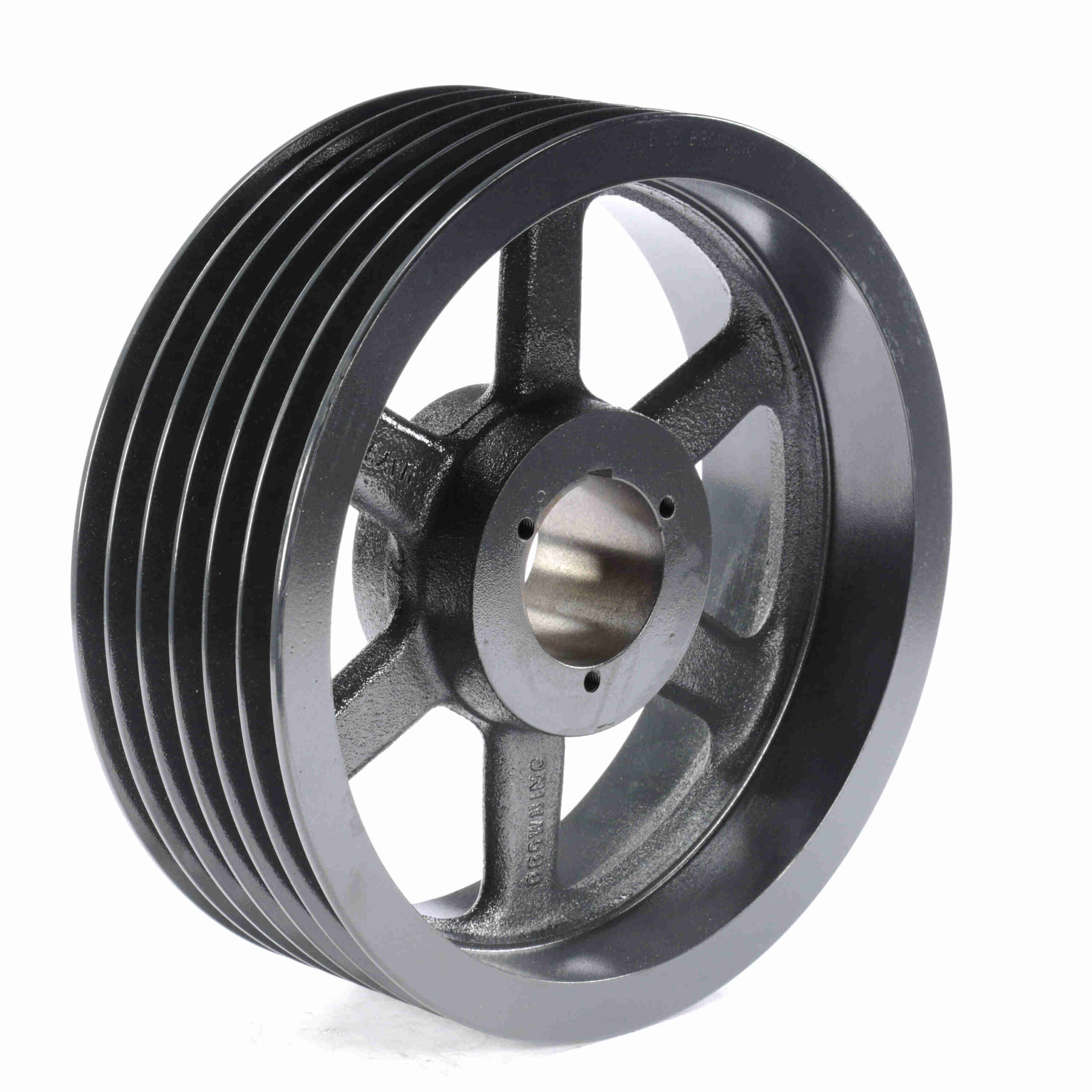

Browning 6 Groove Cast Iron Bushed Bore Multiple Sheave – 6TB136
$939.00
Out of stock
Out of stock
| Pitch Diameter (A): | 13.4 | Overall Length (in): | 4.828125 in |
|---|---|---|---|
| Model Name: | 6TB-L_Sheave_Master | Bushing Used: | Q2 |
| Outside Diameter (in): | 13.95 in | Number of Grooves: | 6 |
| Material: | Cast Iron | Pulley Material: | Cast Iron |
| Pitch Diameter (B): | 13.9 | Datum Diameter (B): | 13.6 |
| Datum Diameter (A): | 13.2 | Product Type: | Multiple Sheaves |
| Belt Section: | A, B | Bore (Min) (in): | 1 in |
| Bore Type: | Split Taper Bushed | Keyway Size: | .500 |
| Bushing Bore Range: | 1.000 - 2.625 | UPC: | 662289182336 |
| Weight: | 47.42 LB | Packaged Length: | 14.00 Inches |
| Packaged Width: | 14.00 Inches | Packaged Height: | 4.75 Inches |
| HTC: | 8483.50.9040 | Country of Origin: | Mexico |
