- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Combination Groove – All Browning B Sheaves permit the running of A& B Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
4TB200

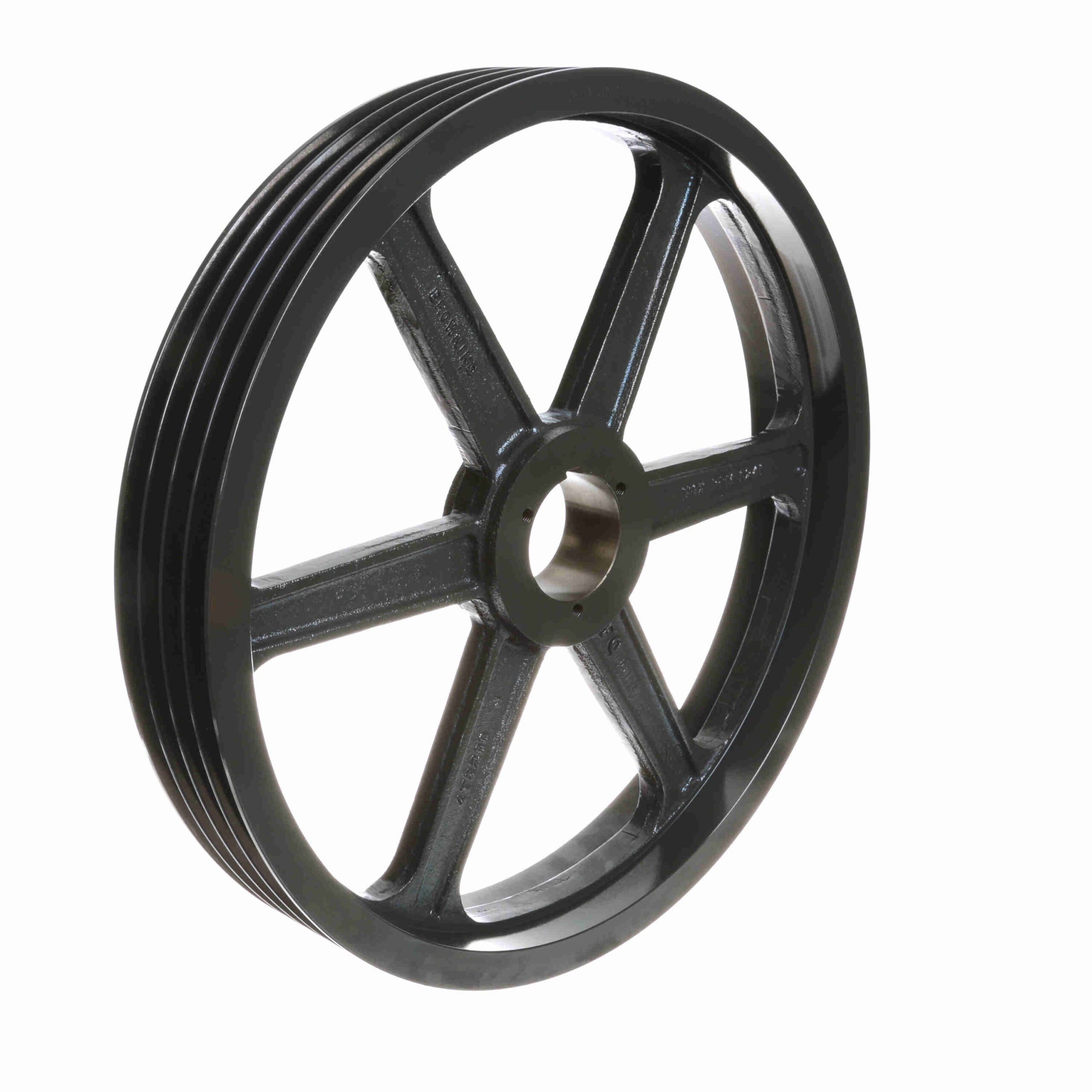

Browning 4 Groove Cast Iron Bushed Bore Multiple Sheave – 4TB200
$1,044.59
Out of stock
Out of stock
| Material: | Cast Iron | Model Name: | 4TB-L_Sheave_Master |
|---|---|---|---|
| Bushing Used: | Q1 | Number of Grooves: | 4 |
| Pulley Material: | Cast Iron | Outside Diameter (in): | 20.35 in |
| Overall Length (in): | 3.578125 in | Datum Diameter (A): | 19.6 |
| Datum Diameter (B): | 20 | Pitch Diameter (A): | 19.8 |
| Pitch Diameter (B): | 20.3 | Product Type: | Multiple Sheaves |
| Belt Section: | A, B | Bore (Min) (in): | 0.75 in |
| Bore Type: | Split Taper Bushed | Bushing Bore Range: | 2.6875 - 2.6875 |
| Keyway Size: | .500 | Overall Width (in): | 3.53125 |
| Face Width (in): | 3.25 | Pulley Construction: | Spoked |
| UPC: | 662289122585 | Weight: | 51.30 LB |
| Packaged Length: | 20.38 Inches | Packaged Width: | 20.38 Inches |
| Packaged Height: | 3.25 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
