- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
4C500J

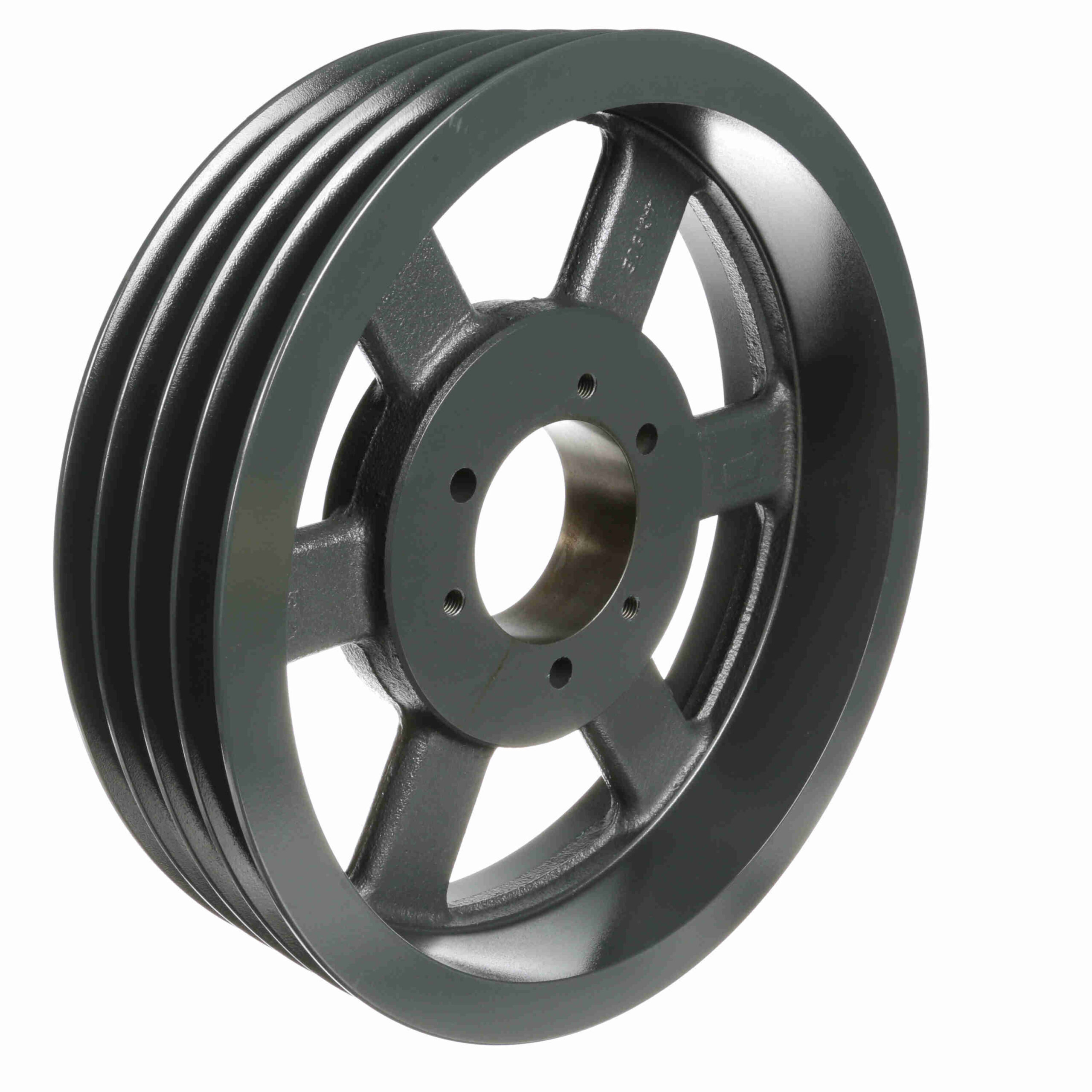

Browning 4 Groove Cast Iron Bushed Bore Multiple Sheave – 4C500J
Out of stock
| Pulley Material: | Cast Iron | Pitch Diameter (C): | 50.4 |
|---|---|---|---|
| Datum Diameter (C): | 50 | Material: | Cast Iron |
| Number of Grooves: | 4 | Model Name: | 4C_LG_Sheavemaster |
| Bushing Used: | J | Outside Diameter (in): | 50.4 in |
| Bore (Min) (in): | 1.5 in | Belt Section: | C |
| Product Type: | Multiple Sheaves | Bore Type: | QD Bushed |
| Bushing Bore Range: | 1.500 - 4.500 | UPC: | 662289409594 |
| Weight: | 260.00 LB | Packaged Length: | 50.40 Inches |
| Packaged Width: | 50.40 Inches | Packaged Height: | 4.25 Inches |
| HTC: | 8483.50.9040 |
