- Largest selection in the Industry – Browning offers the widest range of variable speed sheaves in the market today. One and two Groove product are available in 1.6″ to 8.5″ covering up to 25 horsepower.
- VP sheaves consist of a male with a threaded barrel, and a female with a threaded bore.
- The male section with threaded barrel has flat surfaces at 180 degree increments that allow a flat surface for the setscrew to mate with.
- When discs are moved toward each other, the belt rides higher in the groove and the pitch diameter of the sheave is larger which increases the driven speed.
- When discs are moved away from each other, the belt rides lower and the pitch diameter is smaller decreasing the driven speed.
2VP75X40MM

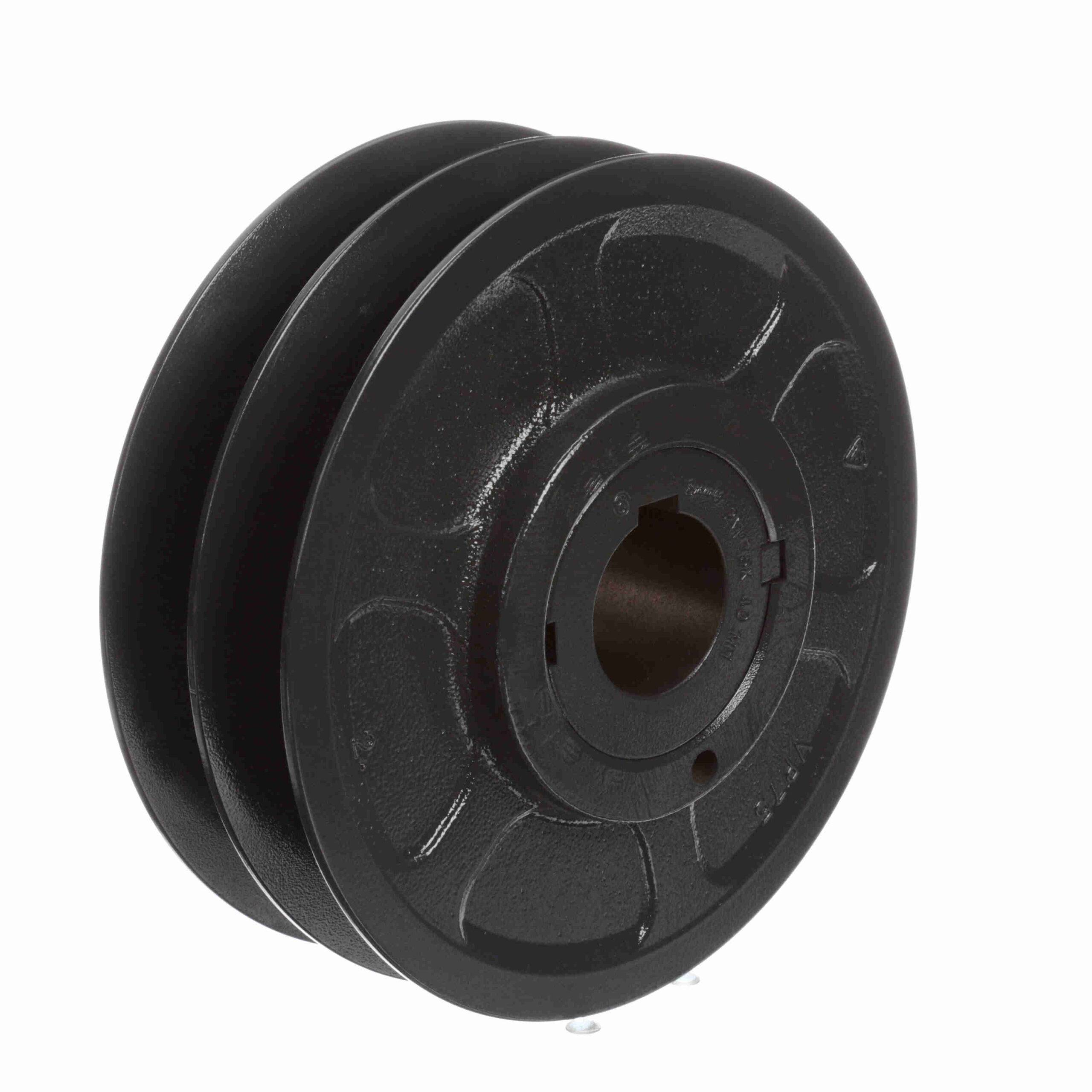

Browning 2 Groove Cast Iron Finish Bore FHP Variable Pitch Sheave – 2VP75X40MM
$1,244.90
Out of stock
Out of stock
| Bore (mm): | 40 mm | Number of Grooves: | 2 |
|---|---|---|---|
| Type of Bore: | Finished | Turns Open (5V) (For Min PD): | 6 |
| Material: | Cast Iron | Outside Diameter (in): | 7.5 in |
| Outside Diameter (mm): | 190.5 mm | Turns Open (B or 5L) (For Min PD): | 6 |
| Turns Open (A or 4L) (For Min PD): | 5 | Product Type: | FHP Variable Pitch Sheaves |
| Belt Section: | 4L or A, 5L or B, 5V | UPC: | 662460606712 |
| Weight: | 16.16 LB | Packaged Length: | 7.90 Inches |
| Packaged Width: | 7.90 Inches | Packaged Height: | 3.50 Inches |
| HTC: | 8483.50.9040 | Country of Origin: | Mexico |
