- Combination Groove – All Browning B5V Sheaves permit the running of A, 4L, B, 5L& 5V Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
- Broad horsepower coverage – The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives
- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- New Casting design – The B5V castings were developed using CAD and Finite Elements Analysis to determine where to add and eliminate material.
4B5V86

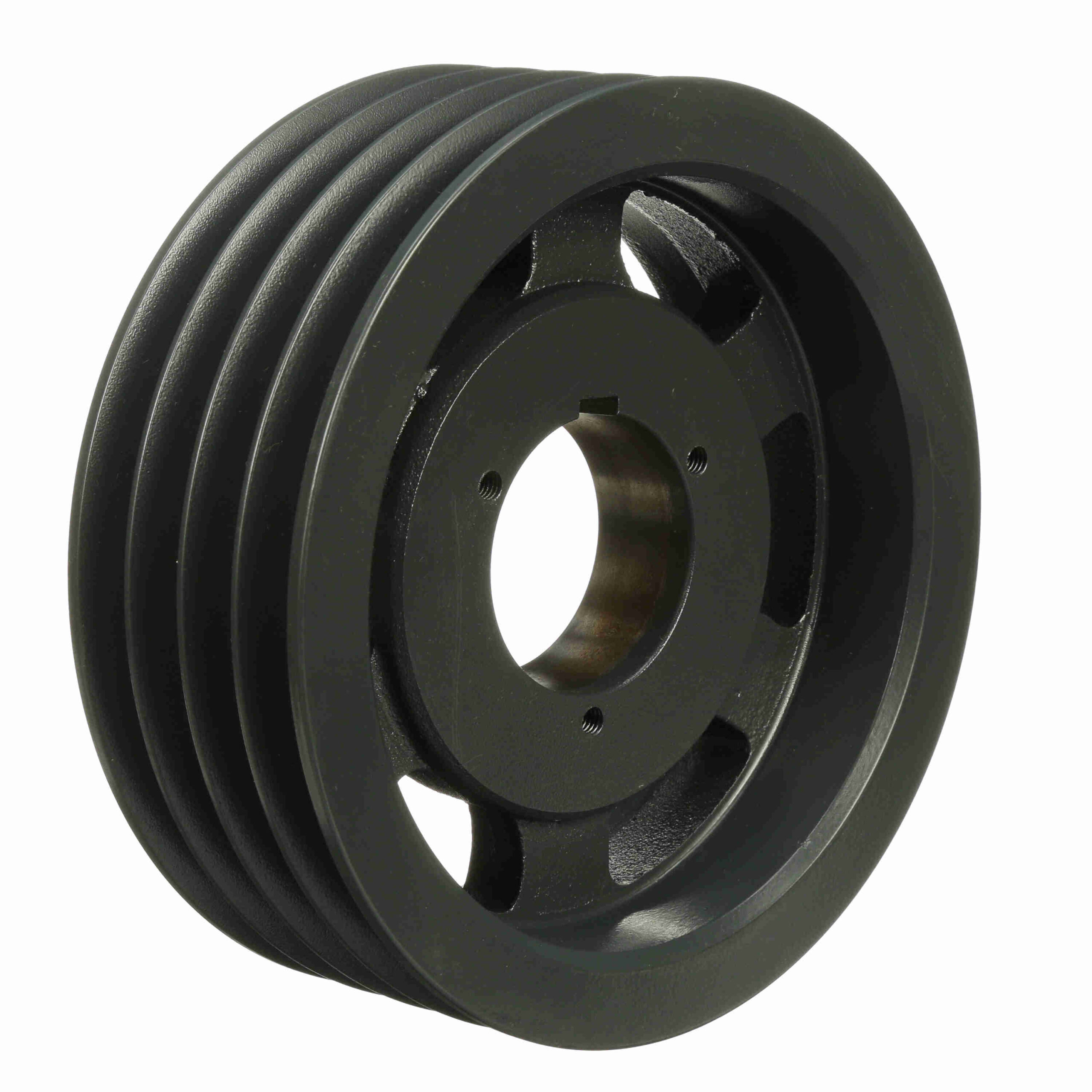

Browning 4 Groove Cast Iron Bushed Bore Multiple Sheave – 4B5V86
$318.31
Out of stock
Out of stock
| Bushing Used: | B | Material: | Cast Iron |
|---|---|---|---|
| Pitch Diameter (B): | 8.9 | Model Name: | 4B5V-SheaveMaster |
| Datum Diameter (A): | 8.2 | Outside Diameter (in): | 8.88 in |
| Overall Length (in): | 3.265625 in | Pitch Diameter (A): | 8.4 |
| Pitch Diameter (5V): | 8.7 | Datum Diameter (B): | 8.6 |
| Number of Grooves: | 4 | Pulley Material: | Cast Iron |
| Belt Section: | A, B, 5V | Product Type: | Multiple Sheaves |
| Bore (Min) (in): | 0.5 in | Bore Type: | Split Taper Bushed |
| Pulley Construction: | Spoked | Bushing Bore Range: | 0.500 - 2.4375 |
| Overall Width (in): | 3.203125 | Keyway Size: | .500 |
| Face Width (in): | 3.1563 | UPC: | 662289037490 |
| Weight: | 17.56 LB | Packaged Length: | 9.60 Inches |
| Packaged Width: | 9.60 Inches | Packaged Height: | 3.80 Inches |
| HTC: | 8483.50.9040 | Country of Origin: | Mexico |
