- Combination Groove – All Browning B Sheaves permit the running of A& B Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
4B250E

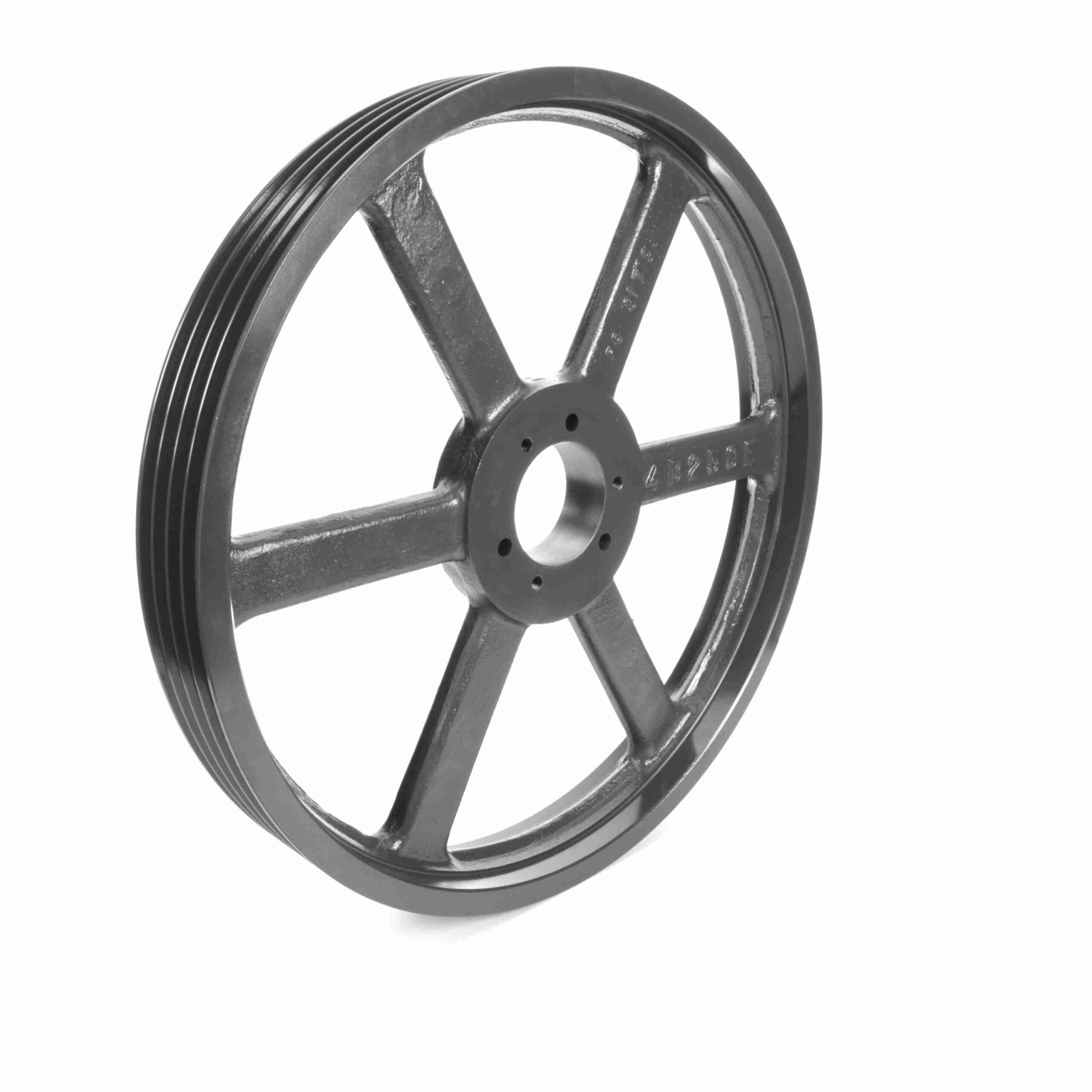

Browning 4 Groove Cast Iron Bushed Bore Multiple Sheave – 4B250E
$1,593.74
Out of stock
Out of stock
| Pulley Material: | Cast Iron | Model Name: | 4AB_LG_Sheavemaster |
|---|---|---|---|
| Outside Diameter (in): | 25.35 in | Bushing Used: | E |
| Material: | Cast Iron | Number of Grooves: | 4 |
| Pitch Diameter (B): | 25.3 | Pitch Diameter (A): | 24.8 |
| Datum Diameter (B): | 25 | Datum Diameter (A): | 24.6 |
| Bore (Min) (in): | 0.875 in | Product Type: | Multiple Sheaves |
| Belt Section: | A, B | Bore Type: | QD Bushed |
| Bushing Bore Range: | 0.875 - 3.500 | UPC: | 662289357673 |
| Weight: | 73.00 LB | Packaged Length: | 25.35 Inches |
| Packaged Width: | 25.35 Inches | Packaged Height: | 3.25 Inches |
| HTC: | 8483.50.9040 | Country of Origin: | Mexico |
