- Combination Groove – All Browning B Sheaves permit the running of A& B Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
4B54SD

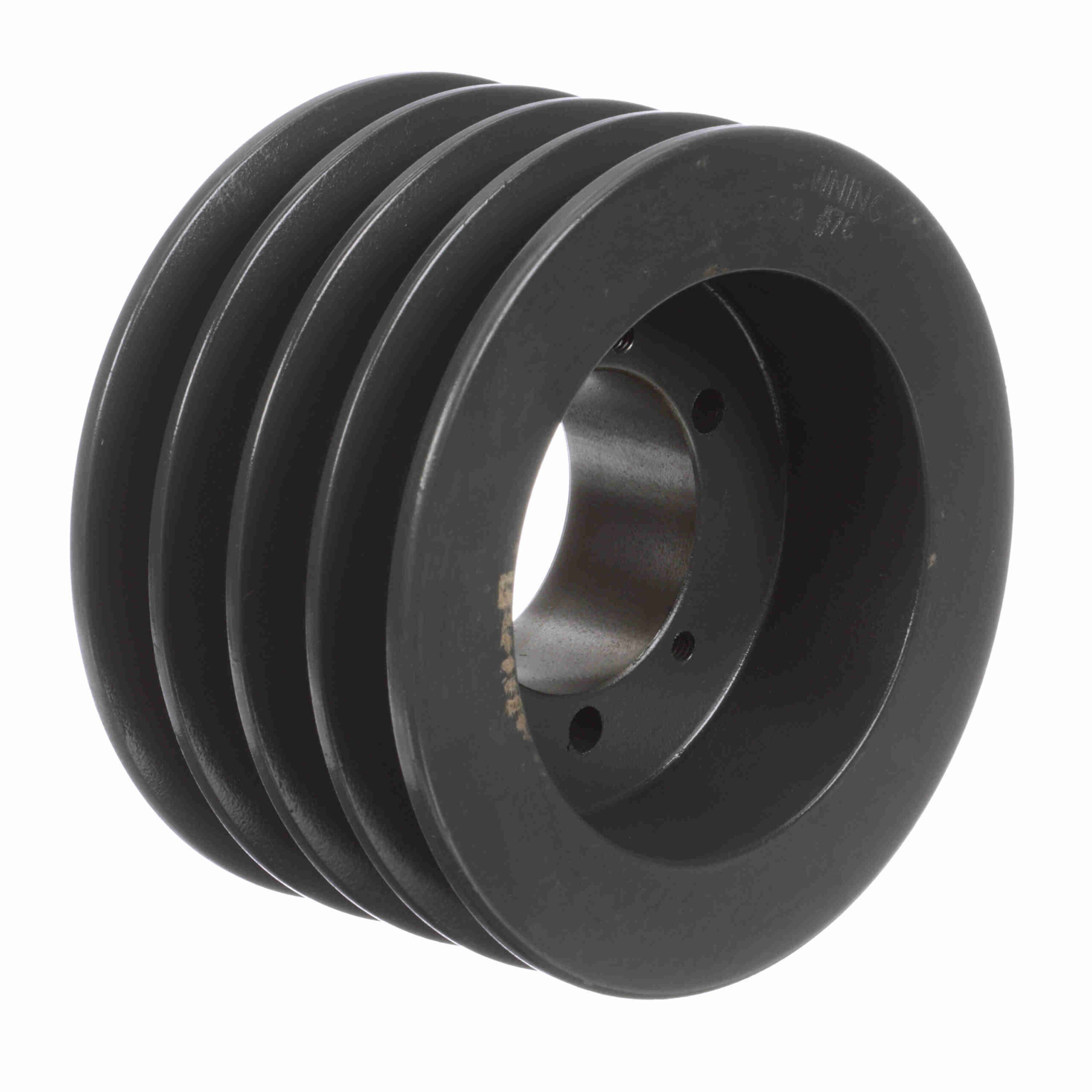

Browning 4 Groove Cast Iron Bushed Bore Multiple Sheave – 4B54SD
$393.55
Out of stock
Out of stock
| Outside Diameter (in): | 5.75 in | Model Name: | 4AB_LG_Sheavemaster |
|---|---|---|---|
| Datum Diameter (B): | 5.4 | Datum Diameter (A): | 5 |
| Material: | Cast Iron | Pitch Diameter (A): | 5.2 |
| Number of Grooves: | 4 | Bushing Used: | SD |
| Pitch Diameter (B): | 5.7 | Pulley Material: | Cast Iron |
| Product Type: | Multiple Sheaves | Belt Section: | A, B |
| Bore (Min) (in): | 0.5 in | Bore Type: | QD Bushed |
| Bushing Bore Range: | 0.500 - 2.000 | UPC: | 662289373291 |
| Weight: | 9.96 LB | Packaged Length: | 6.06 Inches |
| Packaged Width: | 6.06 Inches | Packaged Height: | 3.25 Inches |
| HTC: | 8483.50.9040 | Country of Origin: | Mexico |
