- Combination Groove – All Browning B Sheaves permit the running of A& B Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
4B48SD

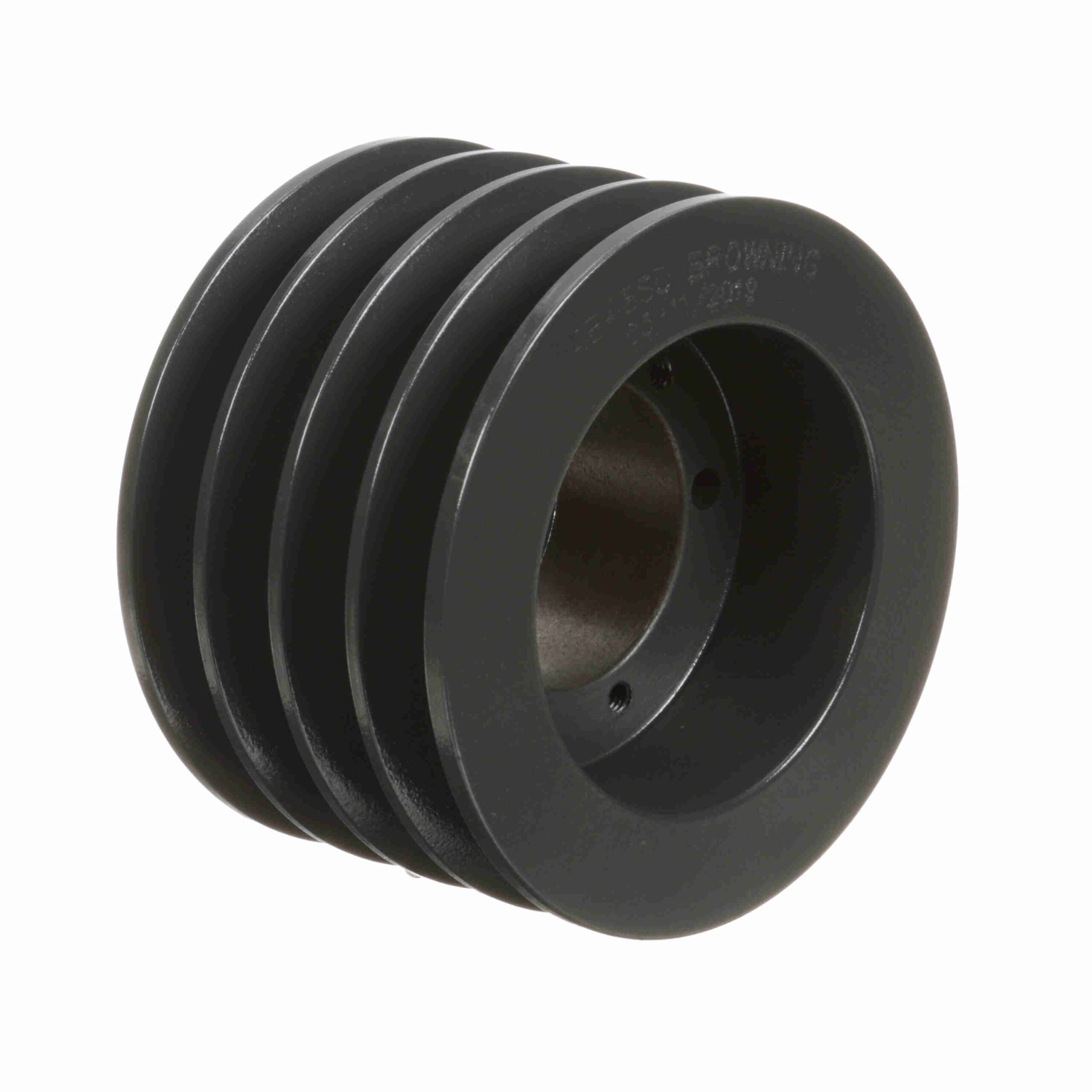

Browning 4 Groove Cast Iron Bushed Bore Multiple Sheave – 4B48SD
$383.00
Out of stock
Out of stock
| Outside Diameter (in): | 5.15 in | Model Name: | 4AB_LG_Sheavemaster |
|---|---|---|---|
| Number of Grooves: | 4 | Material: | Cast Iron |
| Pulley Material: | Cast Iron | Bushing Used: | SD |
| Pitch Diameter (A): | 4.6 | Pitch Diameter (B): | 5.1 |
| Datum Diameter (B): | 4.8 | Datum Diameter (A): | 4.4 |
| Bore (Min) (in): | 0.5 in | Product Type: | Multiple Sheaves |
| Belt Section: | A, B | Bore Type: | QD Bushed |
| Bushing Bore Range: | 0.500 - 2.000 | UPC: | 662289393282 |
| Weight: | 7.54 LB | Packaged Length: | 6.06 Inches |
| Packaged Width: | 6.06 Inches | Packaged Height: | 3.25 Inches |
| HTC: | 8483.50.9040 | Country of Origin: | Mexico |
