- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Combination Groove – All Browning B Sheaves permit the running of A& B Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
4B160R

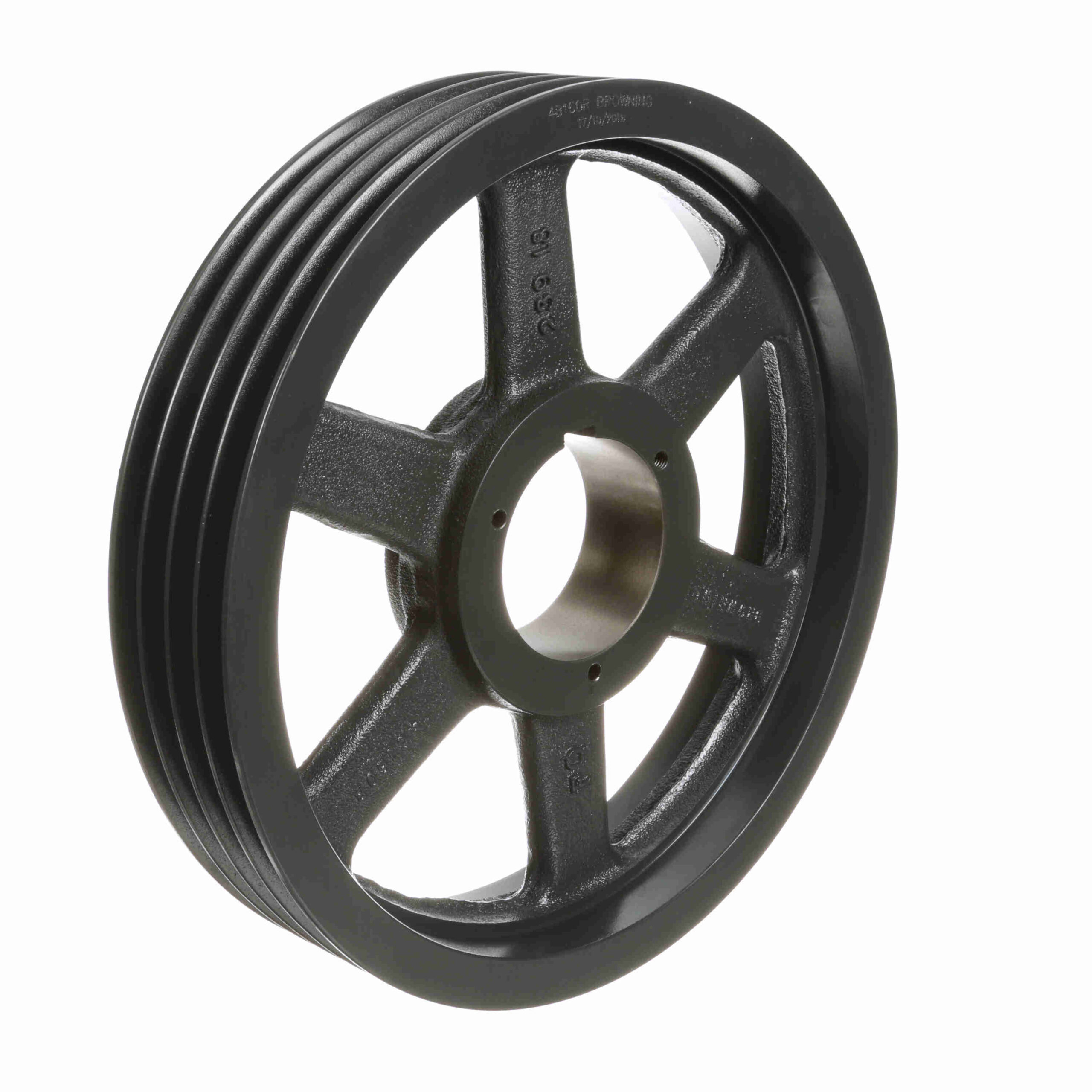

Browning 4 Groove Cast Iron Bushed Bore Multiple Sheave – 4B160R
$607.14
Out of stock
Out of stock
| Material: | Cast Iron | Overall Length (in): | 3.796875 in |
|---|---|---|---|
| Bushing Used: | R1 | Datum Diameter (B): | 16 |
| Datum Diameter (A): | 15.6 | Outside Diameter (in): | 16.35 in |
| Number of Grooves: | 4 | Pulley Material: | Cast Iron |
| Pitch Diameter (A): | 15.8 | Pitch Diameter (B): | 16.3 |
| Product Type: | Multiple Sheaves | Bore (Min) (in): | 1.125 in |
| Belt Section: | A, B | Bore Type: | Split Taper Bushed |
| Pulley Construction: | Spoked | Bushing Bore Range: | 1.125 - 3.750 |
| Face Width (in): | 3.25 | Overall Width (in): | 3.78125 |
| Keyway Size: | .750 | UPC: | 662289310999 |
| Weight: | 47.10 LB | Packaged Length: | 17.30 Inches |
| Packaged Width: | 17.20 Inches | Packaged Height: | 3.40 Inches |
| HTC: | 8483.50.9040 | Country of Origin: | Mexico |
