- This Product has the Browning Exclusive Twice the Life Guarantee
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
H40H19

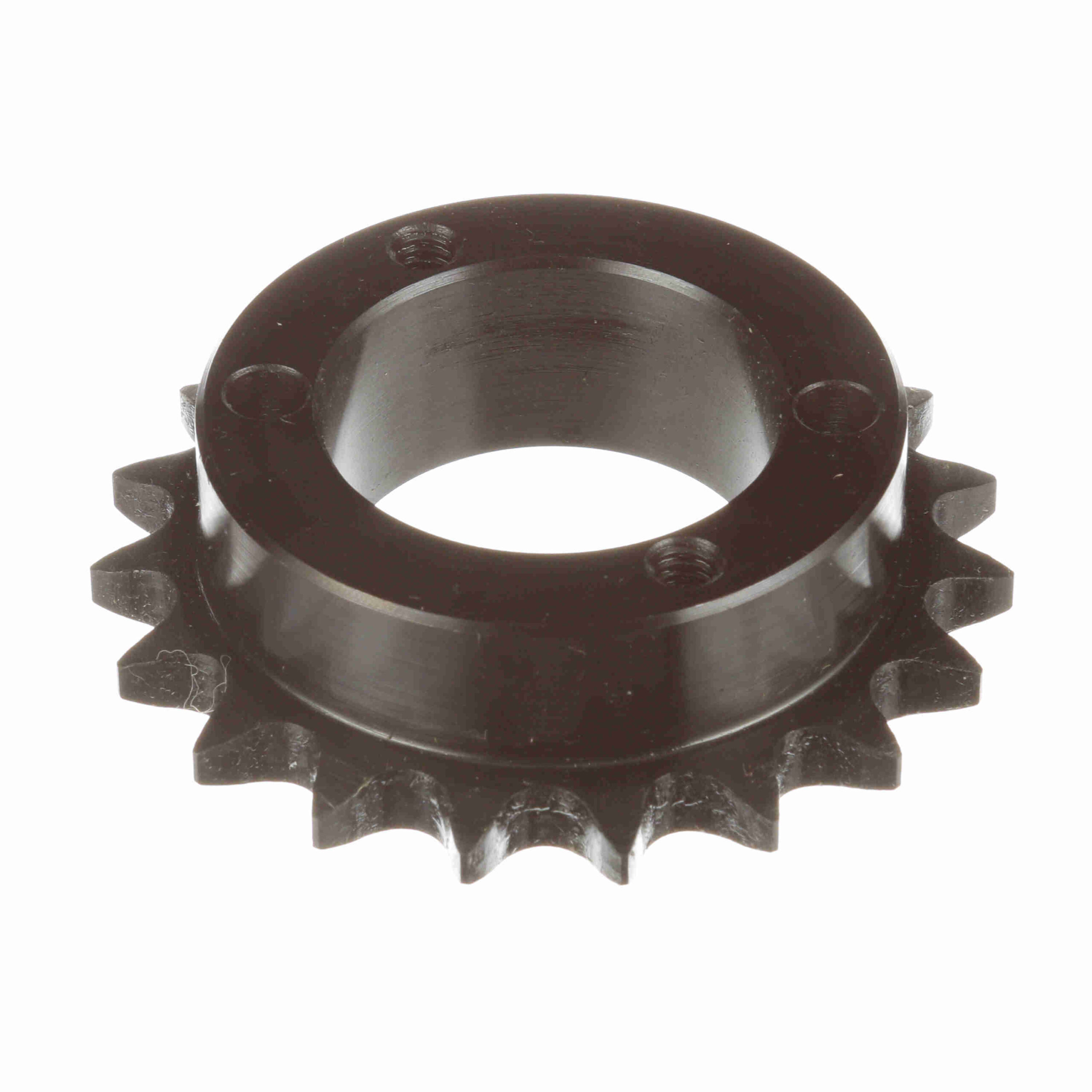

Browning Steel Bushed Bore Roller Chain Sprocket – H40H19
$103.53
Availability: 1 in stock
Availability: 1 in stock
| Product Type: | Bushed Roller Chain Sprocket | Number of teeth: | 19 |
|---|---|---|---|
| Bore (Min) (in): | 0.375 in | Bore (Max) (in): | 1.5 in |
| Chain Used: | No. 40, 1/2 in. Pitch ANSI Chain | Material: | Steel, Hardened Teeth |
| Bushing Used: | Split Taper | Chain Pitch (in): | 0.5 in |
| Pitch Diameter (in): | 3.038 in | Bore Type: | Bushed Bore |
| Overall Length (in): | 1.51225 in | Outside Diameter (in): | 3.296 in |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 2.494 in |
| Maximum Bore (in): | 1.5 | Minimum Bore (in): | 0.375 |
| Number of Hubs: | 1 | Width Across Tooth Sets: | 0.284 |
| Pitch Type: | Single | UPC: | 662289204748 |
| Weight: | 1.29 LB | Packaged Length: | 4.30 Inches |
| Packaged Width: | 4.40 Inches | Packaged Height: | 1.30 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
