- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
40Q60

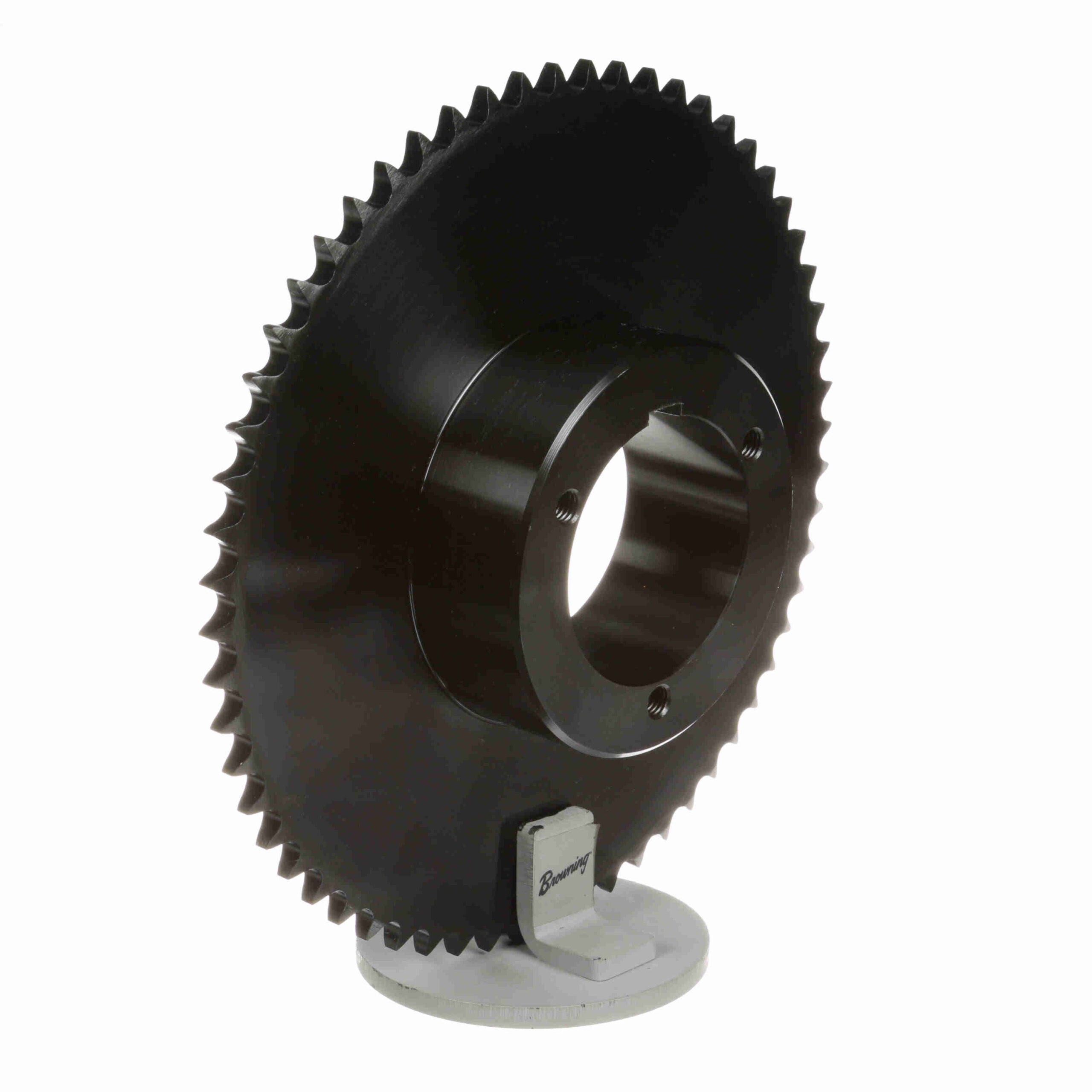

Browning Steel Bushed Bore Roller Chain Sprocket – 40Q60
$324.66
Out of stock
Out of stock
| Bushing Used: | Split Taper | Number of teeth: | 60 |
|---|---|---|---|
| Product Type: | Bushed Roller Chain Sprocket | Material: | Steel |
| Chain Pitch (in): | 0.5 in | Chain Used: | No. 40, 1/2 in. Pitch ANSI Chain |
| Bore (Min) (in): | 0.75 in | Pitch Diameter (in): | 9.554 in |
| Bore (Max) (in): | 2.6875 in | Overall Length (in): | 2.887375 in |
| Outside Diameter (in): | 9.841 in | Bore Type: | Bushed Bore |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 4.125 in |
| Maximum Bore (in): | 2.6875 | Minimum Bore (in): | 0.75 |
| Pitch Type: | Single | Number of Hubs: | 1 |
| Width Across Tooth Sets: | 0.284 | UPC: | 662289225156 |
| Weight: | 9.28 LB | Packaged Length: | 10.60 Inches |
| Packaged Width: | 10.40 Inches | Packaged Height: | 2.70 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
