- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
40P31

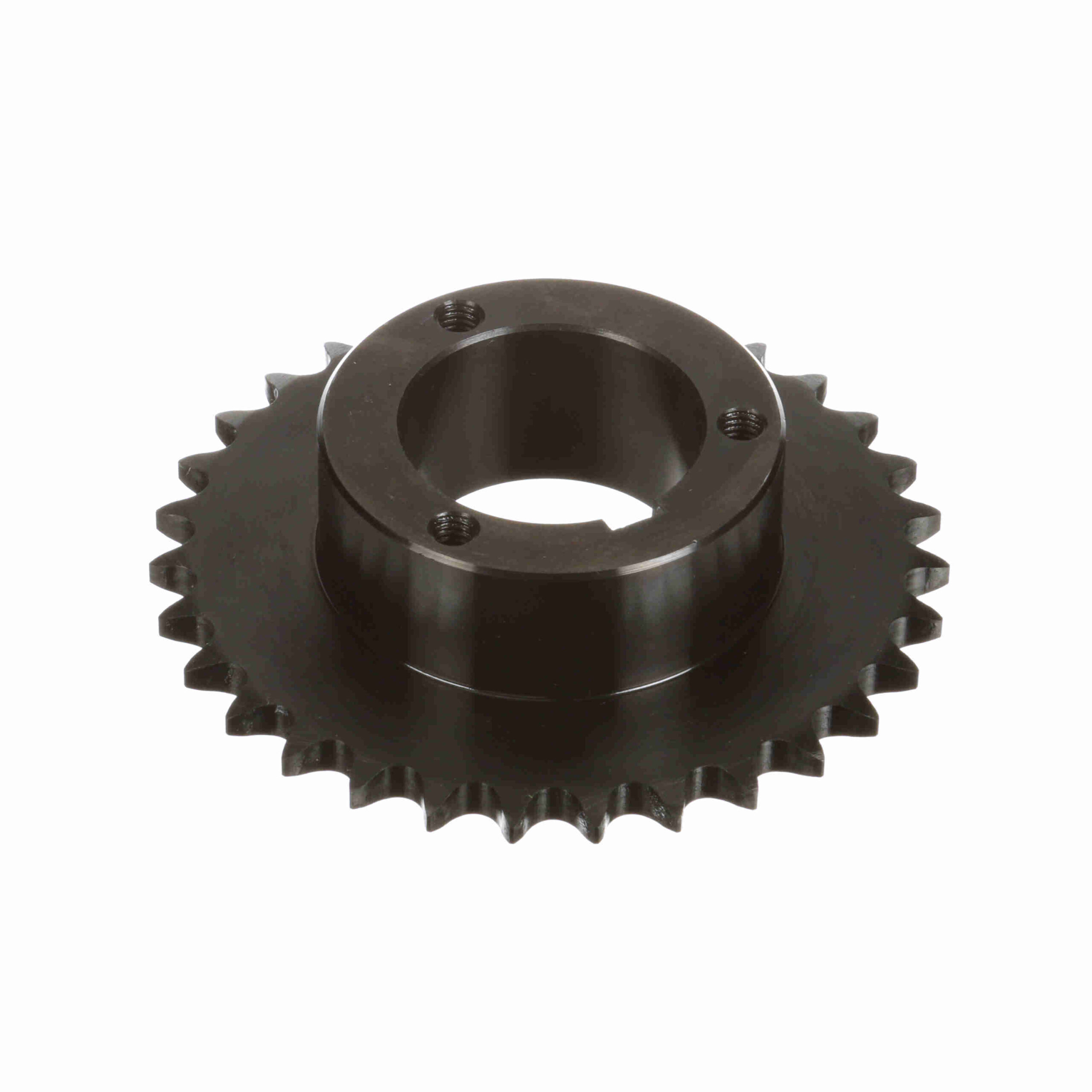

Browning Steel Bushed Bore Roller Chain Sprocket – 40P31
$258.29
Out of stock
Out of stock
| Number of teeth: | 31 | Chain Used: | No. 40, 1/2 in. Pitch ANSI Chain |
|---|---|---|---|
| Chain Pitch (in): | 0.5 in | Bore (Max) (in): | 1.75 in |
| Pitch Diameter (in): | 4.942 in | Material: | Steel |
| Bore (Min) (in): | 0.5 in | Product Type: | Bushed Roller Chain Sprocket |
| Bushing Used: | Split Taper | Hub Diameter (in): | 3 in |
| Bore Type: | Bushed Bore | Overall Length (in): | 2.221225 in |
| Hub Type: | Bushed | Sprocket Material: | Steel, Hardened Teeth |
| Outside Diameter (in): | 5.217 in | Length Through Bore (in): | 1.9375 in |
| Tooth Width (in): | 0.284 in | Bushing Bore (Min) (in): | 0.5 in |
| Number of Strands/Width: | 1 | Bushing Bore (Max) (in): | 1.75 in |
| Maximum Bore (in): | 1.75 | Minimum Bore (in): | 0.5 |
| Pitch Type: | Single | Number of Hubs: | 1 |
| Width Across Tooth Sets: | 0.284 | UPC: | 662289284986 |
| Weight: | 2.48 LB | Packaged Length: | 5.56 Inches |
| Packaged Width: | 5.56 Inches | Packaged Height: | 1.31 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
