- When you think Sprockets – Think Browning
- Made with Minimum bore, no keyseat or setscrew. This can be bored to size with keyseat and setscrew for a reasonable extra charge.
- Maximum Bore Shown will accommodate standard keyways and setscrews over keyway. Slightly larger bores are possible with no keyway, shallow keyway or setscrew at angle to keyway.
40B21

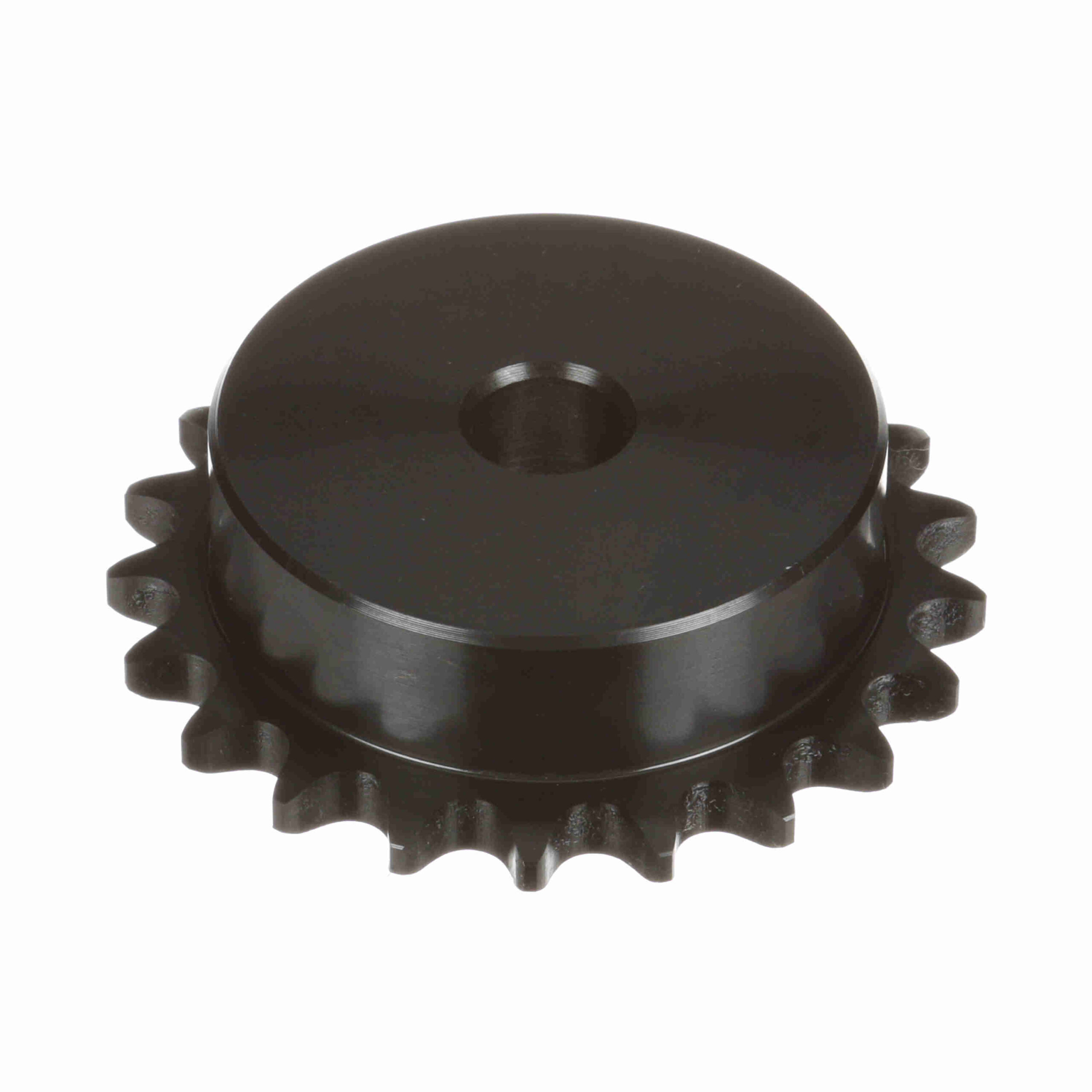

Browning Steel Minimum Plain Bore Roller Chain Sprocket – 40B21
Out of stock
| Chain Pitch (in): | 0.5 in | Chain Used: | No. 40, 1/2 in. Pitch ANSI Chain |
|---|---|---|---|
| Product Type: | Type "B" Minimum Bore Sprocket | Number of teeth: | 21 |
| Material: | Steel | Bore (Max) (in): | 1.875 in |
| Bore Type: | Minimum Plain Bore | Outside Diameter (in): | 3.62 in |
| Pitch Diameter (in): | 3.355 in | Number of Strands/Width: | 1 |
| Bore (in): | 0.625 in | Hub Type: | Type B |
| Length Through Bore (in): | 1 in | Hub Diameter (in): | 2.75 in |
| Minimum Bore (in): | 0.625 | Maximum Bore (in): | 1.875 |
| Number of Hubs: | 1 | Width Across Tooth Sets: | 0.284 |
| Hub Projection (in): | 0.71875 | UPC: | 662289189212 |
| Weight: | 1.82 LB | Packaged Length: | 4.10 Inches |
| Packaged Width: | 4.00 Inches | Packaged Height: | 1.40 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
