- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available from Stock
40-2 C/L S/C S/F

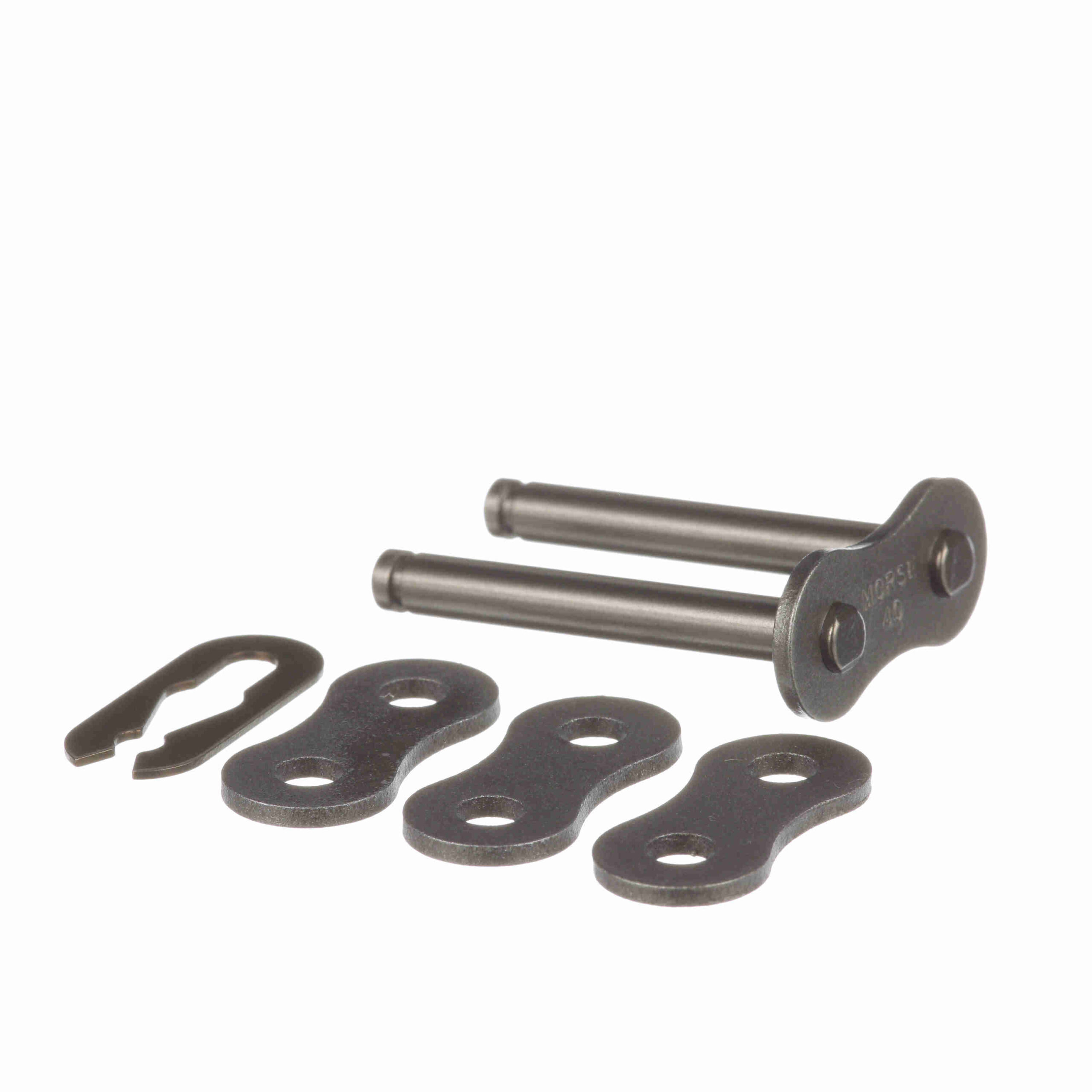

Morse Standard Roller Chain Spring Clip Connecting Link – 40-2 C/L S/C S/F
$4.32
Out of stock
Out of stock
| Number of Connecting Links Included: | 10 | Side Plate Cfg.: | Hourglass |
|---|---|---|---|
| Pin Diameter (in): | 0.156 in | Average Ultimate Tensile Strength (psi): | 7, 400 |
| Roller Diameter (in): | 0.312 in | Width Over Pins/Total Width: | 1.215 |
| Connecting Link - Slip Fit: | Spring Clip | Number of Strands/Width: | 2 |
| Roller Width (in): | 0.3125 in | Inside Plate Height: | 0.466 |
| Material: | Steel | Centerline to Outside of cotter Pin: | 0.662 |
| Centerline to Opposite cotter Pin Side: | 0.597 | Plate Thickness: | 0.06 |
| Chain Size: | 40 | Product Type: | Roller Chain |
| Chain Type: | Standard | Chain Pitch (in): | 0.5 in |
| Chain Construction: | Spring Clip | Link Type: | Connecting Link |
| UPC: | 662288395386 | Weight: | 0.04 LB |
| Packaged Length: | 1.05 Inches | Packaged Width: | 2.45 Inches |
| Packaged Height: | 0.45 Inches | HTC: | 7315.19.0000 |
| Country of Origin: | Taiwan, Republic of China |
