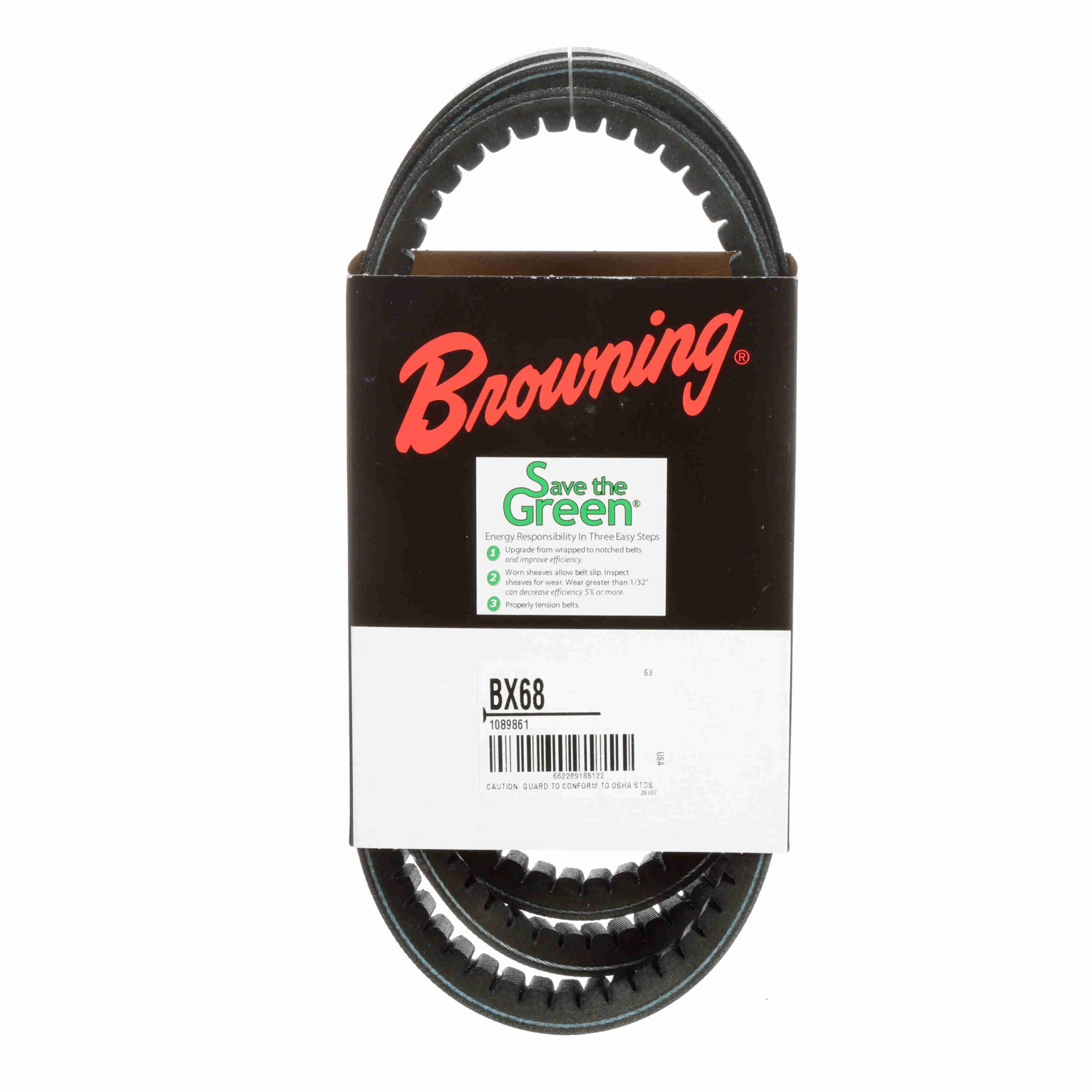

BX68

EPDM Material provides expanded operating temperature range to -60F degrees to 250F degrees which helps ensure long-life and reliable performance in the moste demanding climates and heat sensitive applications.
Precision Molded Cogs – Provide more surface area for heat dissipation and increase belt flexibility. Cooler running means longer life. Browning Notched belts assure longer life when replacing existing Wrapped V-Belts.
Close Belt tolerance – Browning Belts offer the “Code 1” Match belt system on all classical and “358” Belts, allowing easy selection of just one match number for each belt size. This ensures tighter than RMA standards.
High Tensile Cord – Specially treated cords to provide strength and additional flex life while providing resistance to elongation for the belt.
Raw-Edge Sidewalls – Improved gripping contract with pulley sidewalls. Assures less vibration and Smoother , quieter performance. Notched belts provide higher horsepower than wrapped belts.

Type:	Gripnotch Notched V-Belts	Pitch Length:	69.8
Belt Section:	BX	Material:	EPDM
Product Type:	Notched Belt	Operating Temperature [Max] ?C:	121 ?C
Outside Length/Diameter (in):	71 in	Operating Temperature [Max] ?F:	250 ?F
Outside Diameter (in):	71 in	Efficiency (%):	0.98
Section Size:	BX	Width (in):	0.656 in
Construction Type:	Cogged	Belt Series:	Classical Series - Inch
Reinforcing cord material:	Polyester	Height:	0.406
Number of Ribs:	1	Standards met:	ARPM IP-20
Operating Temperature Range:	-70 to +250 ?F	Resistance Features:	Oil & Chemical per ARPM IP-3-2, Static Dissipating per ARPM IP-3-3
UPC:	662289185122	Weight:	1.01 LB
Packaged Length:	4.95 Inches	Packaged Width:	10.55 Inches
Packaged Height:	2.05 Inches	HTC:	4010.34.3000
