- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Sheaves are Statically Balanced – All sheaves are statically balanced to assure smooth, vibration free performance.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
3Q5V75

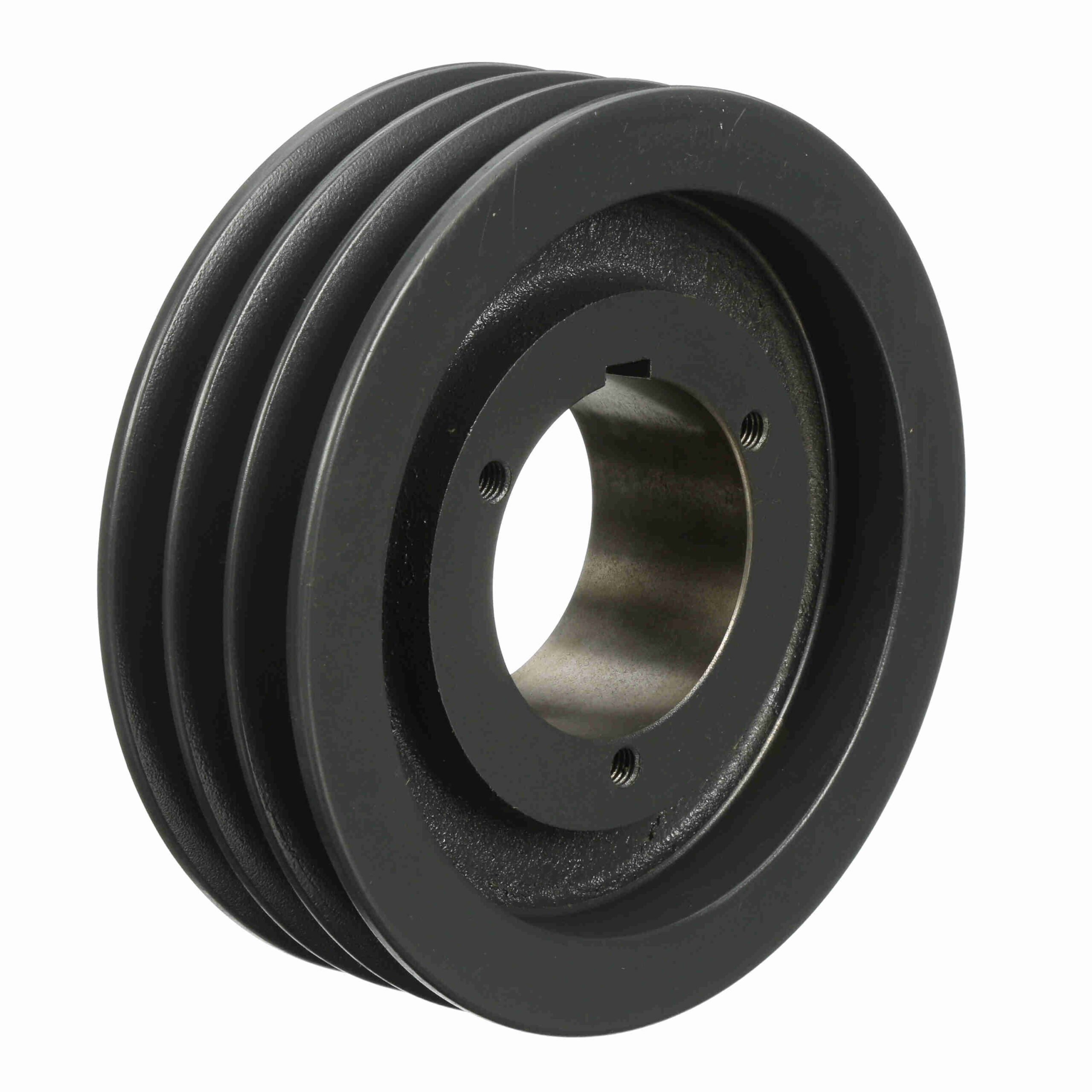

Browning 3 Groove Cast Iron Bushed Bore Multiple Sheave – 3Q5V75
$474.03
Out of stock
Out of stock
| Pulley Material: | Cast Iron | Bushing Used: | Q1 |
|---|---|---|---|
| Number of Grooves: | 3 | Outside Diameter (in): | 7.5 in |
| Material: | Cast Iron | Pitch Diameter (5V): | 7.4 |
| Overall Length (in): | 3.078125 in | Product Type: | Multiple Sheaves |
| Bore (Min) (in): | 0.75 in | Belt Section: | 5V |
| Bore Type: | Split Taper Bushed | Bushing Bore Range: | 2.6875 - 2.6875 |
| Face Width (in): | 2.375 | Keyway Size: | .500 |
| Overall Width (in): | 2.96875 | Pulley Construction: | Webbed |
| UPC: | 662289190430 | Weight: | 12.67 LB |
| Packaged Length: | 9.10 Inches | Packaged Width: | 9.00 Inches |
| Packaged Height: | 2.70 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
