- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Combination Groove – All Browning B Sheaves permit the running of A& B Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
3B66Q

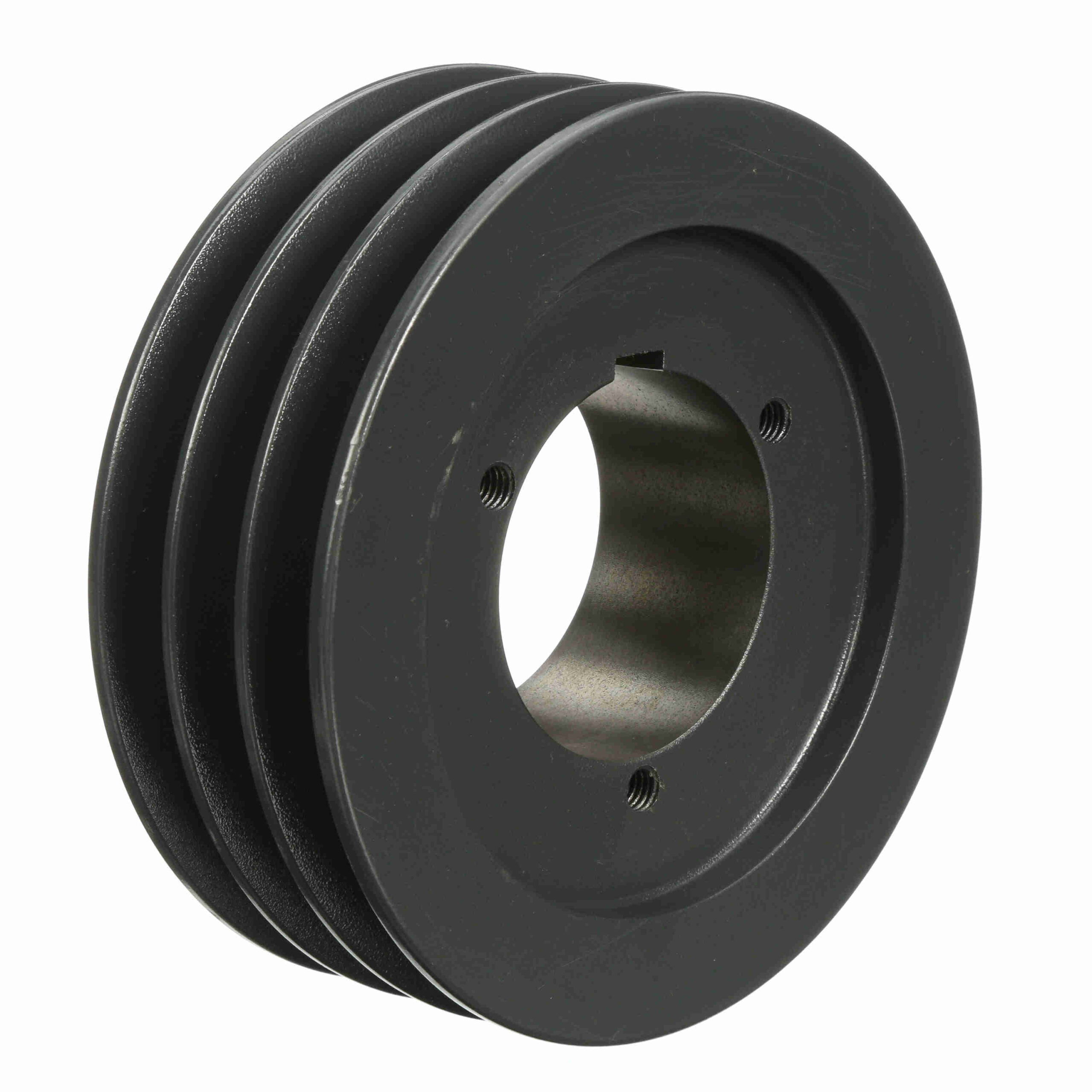

Browning 3 Groove Cast Iron Bushed Bore Multiple Sheave – 3B66Q
$247.35
Out of stock
Out of stock
| Pitch Diameter (B): | 6.9 | Pitch Diameter (A): | 6.4 |
|---|---|---|---|
| Overall Length (in): | 3.203125 in | Material: | Cast Iron |
| Number of Grooves: | 3 | Datum Diameter (B): | 6.6 |
| Pulley Material: | Cast Iron | Outside Diameter (in): | 6.95 in |
| Bushing Used: | Q1 | Datum Diameter (A): | 6.2 |
| Product Type: | Multiple Sheaves | Belt Section: | A, B |
| Bore (Min) (in): | 0.75 in | Bore Type: | Split Taper Bushed |
| Bushing Bore Range: | 2.6875 - 2.6875 | Overall Width (in): | 3.15625 |
| Face Width (in): | 2.5 | Pulley Construction: | Webbed |
| Keyway Size: | .500 | UPC: | 662289214648 |
| Weight: | 13.50 LB | Packaged Length: | 7.19 Inches |
| Packaged Width: | 7.19 Inches | Packaged Height: | 2.50 Inches |
| HTC: | 8483.50.9040 | Country of Origin: | Mexico |
