- Reverse mounting ability – This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face.
- 3/4″/ft. Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
SH 11/16

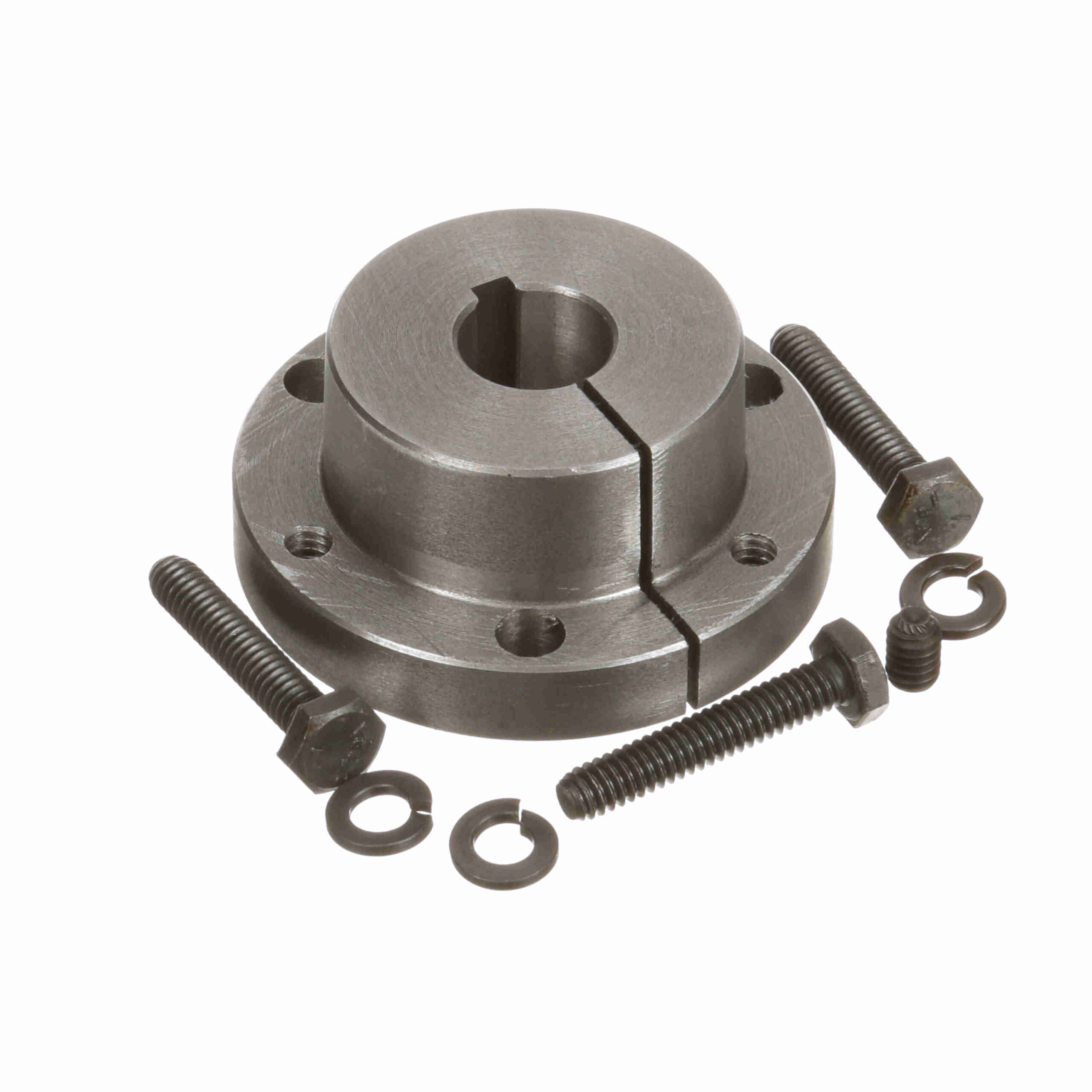

Browning Q-D Bushing – Inch Bore Type – SH 11/16
$93.94
Out of stock
Out of stock
| Product Type: | Q-D Bushing | Length Through Bore (in): | 1.2 in |
|---|---|---|---|
| Compatible Bore Size [Max] (in): | 0.6875 in | Torque Capacity (in-lb): | 3, 500 |
| Outside Diameter (in): | 2.6875 in | Wrench Torque (ft.-lbs.): | 9 |
| Cap Screws (No.): | 3 | Model Name: | QD-SH_Bushing_Master |
| Cap Screws (Size): | 1/4-20 x 1 3/8 | Total Length (in): | 1.2 in |
| Bushing Type: | SH | Keyway: | 3/16 x 3/32 |
| Mounting Type: | Conventional | Cap Screws (Bolt Circle): | 2.25 |
| Bore Type: | Inch | Bore Size (in): | 0.6875 in |
| Barrel Diameter: | 1.871 in | Flange Thickness: | 0.45 in |
| Material: | Ductile Iron - 65-45-23 | Barrel Length: | 0.75 in |
| UPC: | 662289415403 | Weight: | 1.14 LB |
| Packaged Length: | 3.9 Inches | Packaged Width: | 3.7 Inches |
| Packaged Height: | 1.5 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
