- Reverse mounting ability – This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face.
- 3/4″/ft. Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
SF 2 7/8

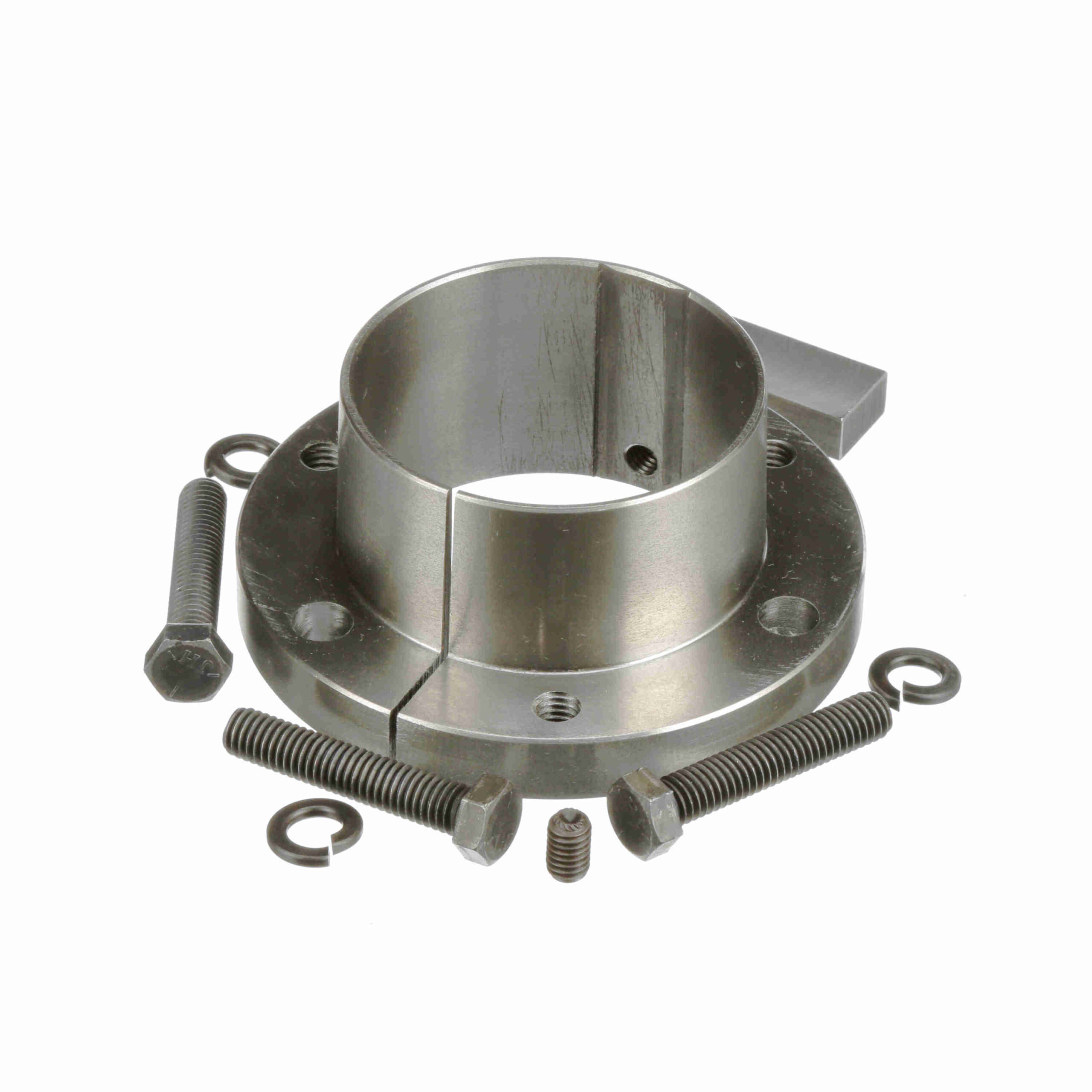

Browning Q-D Bushing – Inch Bore Type – SF 2 7/8
Out of stock
| Wrench Torque (ft.-lbs.): | 30 | Cap Screws (No.): | 3 |
|---|---|---|---|
| Compatible Bore Size [Max] (in): | 2.875 in | Bushing Type: | SF |
| Keyway: | 3/4 x 3/8 | Cap Screws (Bolt Circle): | 3.875 |
| Model Name: | QD-SF_Bushing_Master | Mounting Type: | Conventional |
| Cap Screws (Size): | 3/8-16 x 2 | Product Type: | Q-D Bushing |
| Outside Diameter (in): | 4.625 in | Total Length (in): | 1.995 in |
| Torque Capacity (in-lb): | 11, 000 | Length Through Bore (in): | 1.995 in |
| Bore Type: | Inch | Bore Size (in): | 2.875 in |
| Flange Thickness: | 0.5625 in | Barrel Length: | 1.4375 in |
| Barrel Diameter: | 3.125 in | Material: | Gray Iron - G3033 |
| UPC: | 662289385393 | Weight: | 2.24 LB |
| Packaged Length: | 5 Inches | Packaged Width: | 5.1 Inches |
| Packaged Height: | 2.4 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
