- Combination Groove – All Browning B5V Sheaves permit the running of A, 4L, B, 5L& 5V Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
- Broad horsepower coverage – The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives
- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- New Casting design – The B5V castings were developed using CAD and Finite Elements Analysis to determine where to add and eliminate material.

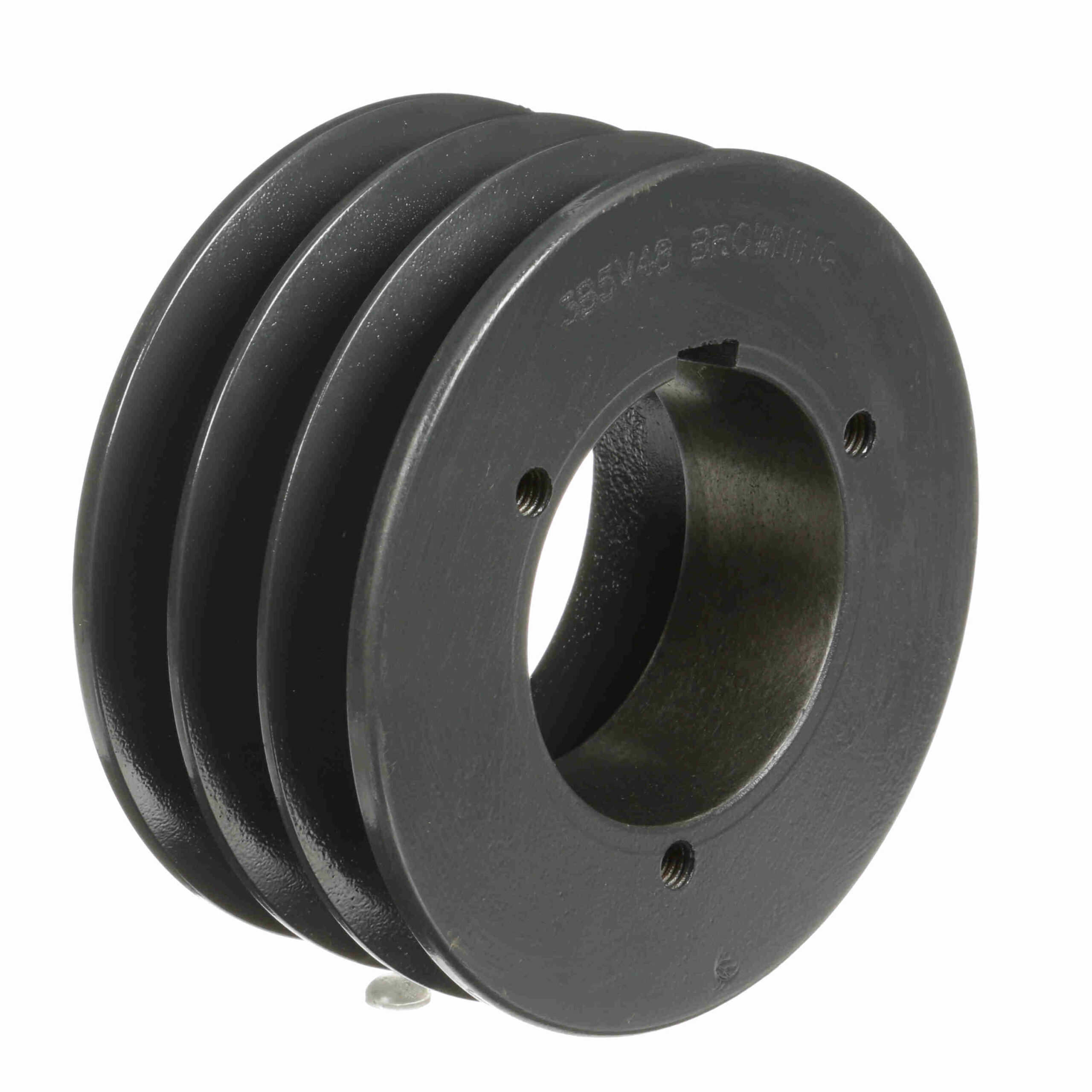

3B5V48
Browning 3 Groove Cast Iron Bushed Bore Multiple Sheave – 3B5V48
$121.74
Out of stock
Out of stock
| Pitch Diameter (A): | 4.6 | Overall Length (in): | 3.5 in |
|---|---|---|---|
| Datum Diameter (A): | 4.4 | Pitch Diameter (5V): | 4.9 |
| Model Name: | 3B5V-SheaveMaster | Pulley Material: | Cast Iron |
| Pitch Diameter (B): | 5.1 | Number of Grooves: | 3 |
| Outside Diameter (in): | 5.08 in | Datum Diameter (B): | 4.8 |
| Bushing Used: | B | Material: | Cast Iron |
| Belt Section: | A, B, 5V | Product Type: | Multiple Sheaves |
| Bore (Min) (in): | 0.5 in | Bore Type: | Split Taper Bushed |
| Number of Hubs: | 1 | Overall Width (in): | 3.52 |
| Pulley Construction: | Solid | Bushing Bore Range: | .500 - 2.4375 |
| Keyway Size: | 0.5 | Face Width (in): | 2.44 |
| UPC: | 662289034970 | Weight: | 5.44 LB |
| Packaged Length: | 5.20 Inches | Packaged Width: | 5.40 Inches |
| Packaged Height: | 2.60 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
