RCI 407C

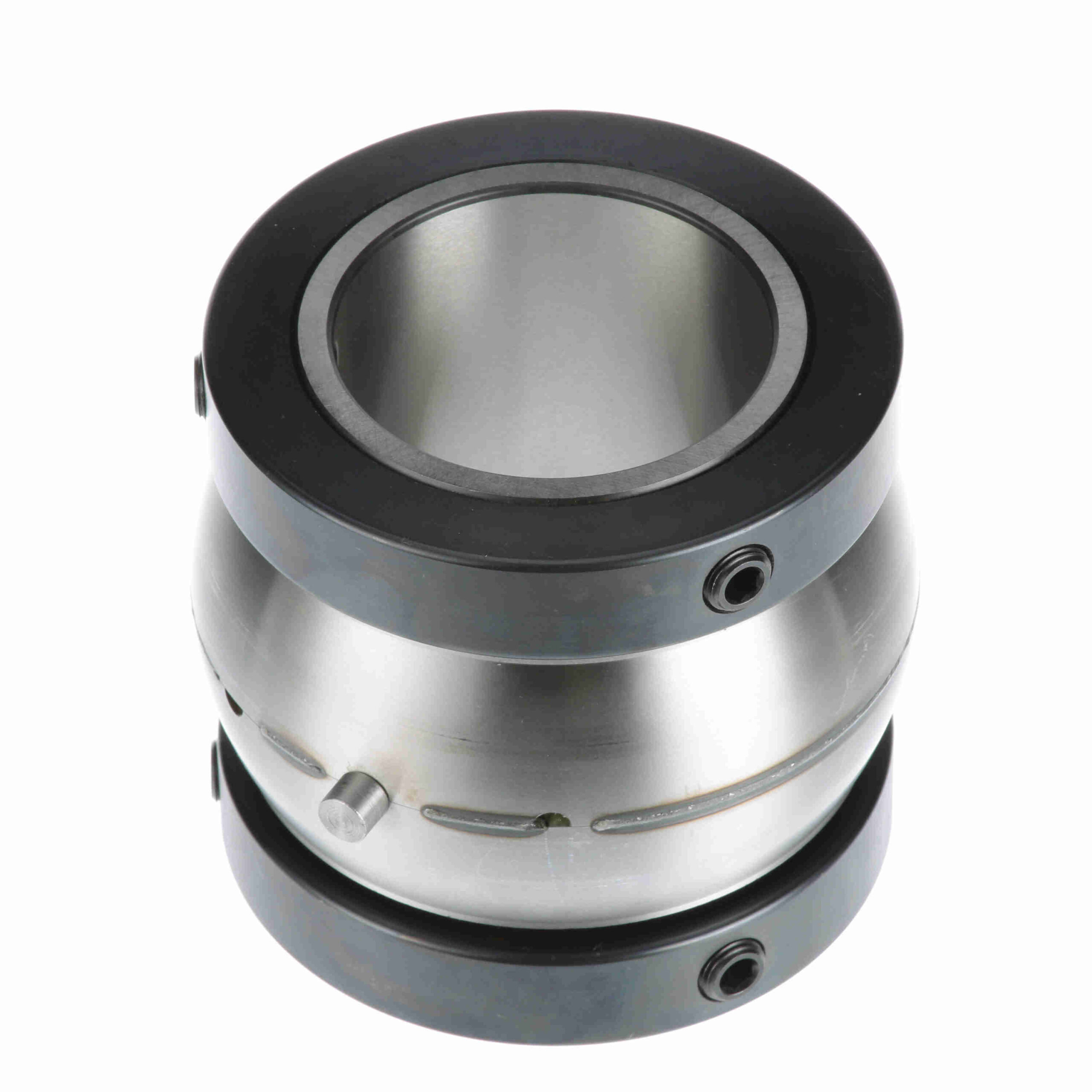

Sealmaster Mounted Insert Only Tapered Roller – 52100 Bearing Steel – Double Collar Mount Lock – RCI 407C
$4,353.28
Out of stock
Out of stock
| Rolling Element: | Tapered Roller | Bore Shape: | Straight |
|---|---|---|---|
| Inner-Race Heat-Treat Method: | Case Carburized Inner Ring | Housing Type: | Insert Only |
| Seal Type: | Single Lip Contact Seal | Insert Material: | 52100 Bearing Steel |
| Measure Units: | Inch | Maximum Operating Temperature: | 220 °F |
| Expansion: | No | Speed (Max): | 1250 |
| Locking Type: | Double Collar Mount | Duty Series: | Standard |
| Internal Clearance: | Standard | Misalignment: | ±3.0° Misalignment - Static Only |
| Relubricatable: | Yes | Lubrication: | Lithium; EP; NLGI#2 |
| Bearing Insert Coating: | Uncoated | Platform: | RPB Series |
| End Cap: | No | Outer Ring Land Profile: | Standard |
| Misalignment Type: | Static Only | Retainer Material: | Steel |
| Outer Race Profile: | Spherical | Inner Race Profile: | Wide Inner Ring |
| UPC: | 662288480945 | Weight: | 30.40 LB |
| Packaged Length: | 12.63 Inches | Packaged Width: | 12.63 Inches |
| Packaged Height: | 8.13 Inches | HTC: | 8482.20.0061 |
| Country of Origin: | United States of America |
