- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Combination Groove – All Browning B Sheaves permit the running of A& B Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
3B154R

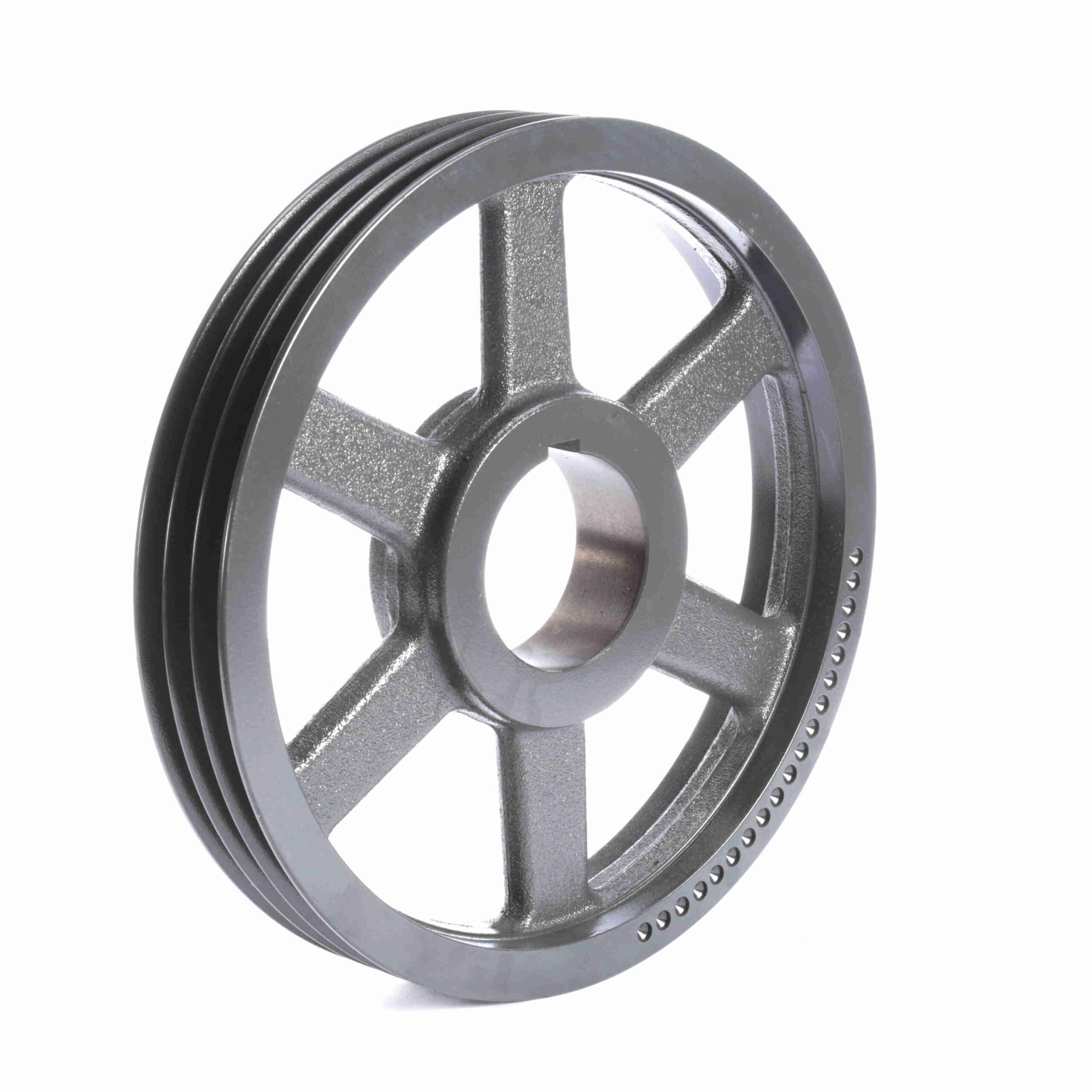

Browning 3 Groove Cast Iron Bushed Bore Multiple Sheave – 3B154R
$340.41
Out of stock
Out of stock
| Pulley Material: | Cast Iron | Datum Diameter (B): | 15.4 |
|---|---|---|---|
| Pitch Diameter (A): | 15.2 | Datum Diameter (A): | 15 |
| Outside Diameter (in): | 15.75 in | Overall Length (in): | 3.421875 in |
| Bushing Used: | R1 | Pitch Diameter (B): | 15.7 |
| Number of Grooves: | 3 | Material: | Cast Iron |
| Bore (Min) (in): | 1.125 in | Belt Section: | A, B |
| Product Type: | Multiple Sheaves | Bore Type: | Split Taper Bushed |
| Overall Width (in): | 3.40625 | Pulley Construction: | Spoked |
| Bushing Bore Range: | 1.125 - 3.750 | Keyway Size: | .750 |
| Face Width (in): | 2.5 | UPC: | 662289145126 |
| Weight: | 36.69 LB | Packaged Length: | 16.30 Inches |
| Packaged Width: | 16.30 Inches | Packaged Height: | 2.70 Inches |
| HTC: | 8483.50.9040 | Country of Origin: | Mexico |
