- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
35H21

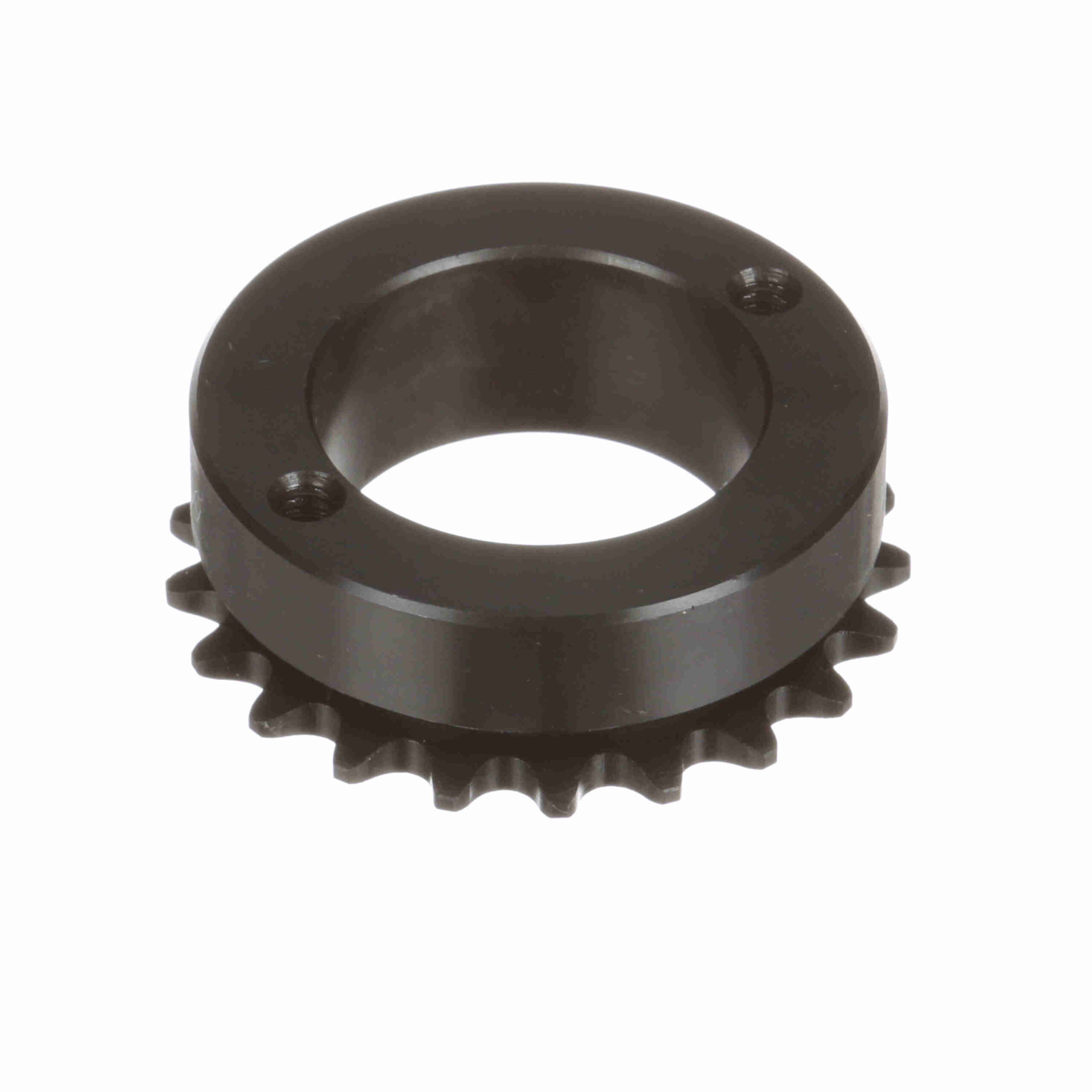

Browning Steel Bushed Bore Roller Chain Sprocket – 35H21
$127.73
Availability: 4 in stock
Availability: 4 in stock
| Product Type: | Bushed Roller Chain Sprocket | Bushing Used: | Split Taper |
|---|---|---|---|
| Material: | Steel | Bore (Min) (in): | 0.375 in |
| Bore (Max) (in): | 1.5 in | Pitch Diameter (in): | 2.516 in |
| Chain Used: | No. 35, 3/8 in. Pitch ANSI Chain | Chain Pitch (in): | 0.375 in |
| Number of teeth: | 21 | Overall Length (in): | 1.50625 in |
| Outside Diameter (in): | 2.713 in | Bore Type: | Bushed Bore |
| Number of Strands/Width: | 1 | Tooth Width (in): | 0.168 in |
| Hub Diameter (in): | 2.494 in | Length Through Bore (in): | 1.25 in |
| Minimum Bore (in): | 0.375 | Maximum Bore (in): | 1.5 |
| Number of Hubs: | 1 | Hardened Teeth: | Yes |
| Width Across Tooth Sets: | 0.168 | Hub Projection (in): | 1.156 |
| Pitch Type: | Single | Overall Width (in): | 1.5 in |
| UPC: | 662289184002 | Weight: | 0.68 LB |
| Packaged Length: | 4.30 Inches | Packaged Width: | 4.10 Inches |
| Packaged Height: | 1.10 Inches | HTC: | 8483.90.1050 |
| Country of Origin: | China |
