- Exclusive Taper Bushing: Single TorqTaper Bushing installs from either side of the unit for easy on – easy off mounting, with stabilizer ring.
- Standard Bearings: Commercially available Tapered Roller Bearings provide maximum overhung load capacity.
- Commercially available double lip seals ride on plunge ground shafts, with exclusive barrier seal arrangement.
- Options and Accessories: Complete range of motor mounts, belt guards, fan kits, backstops, and screw conveyor drive options.
315SMTP15

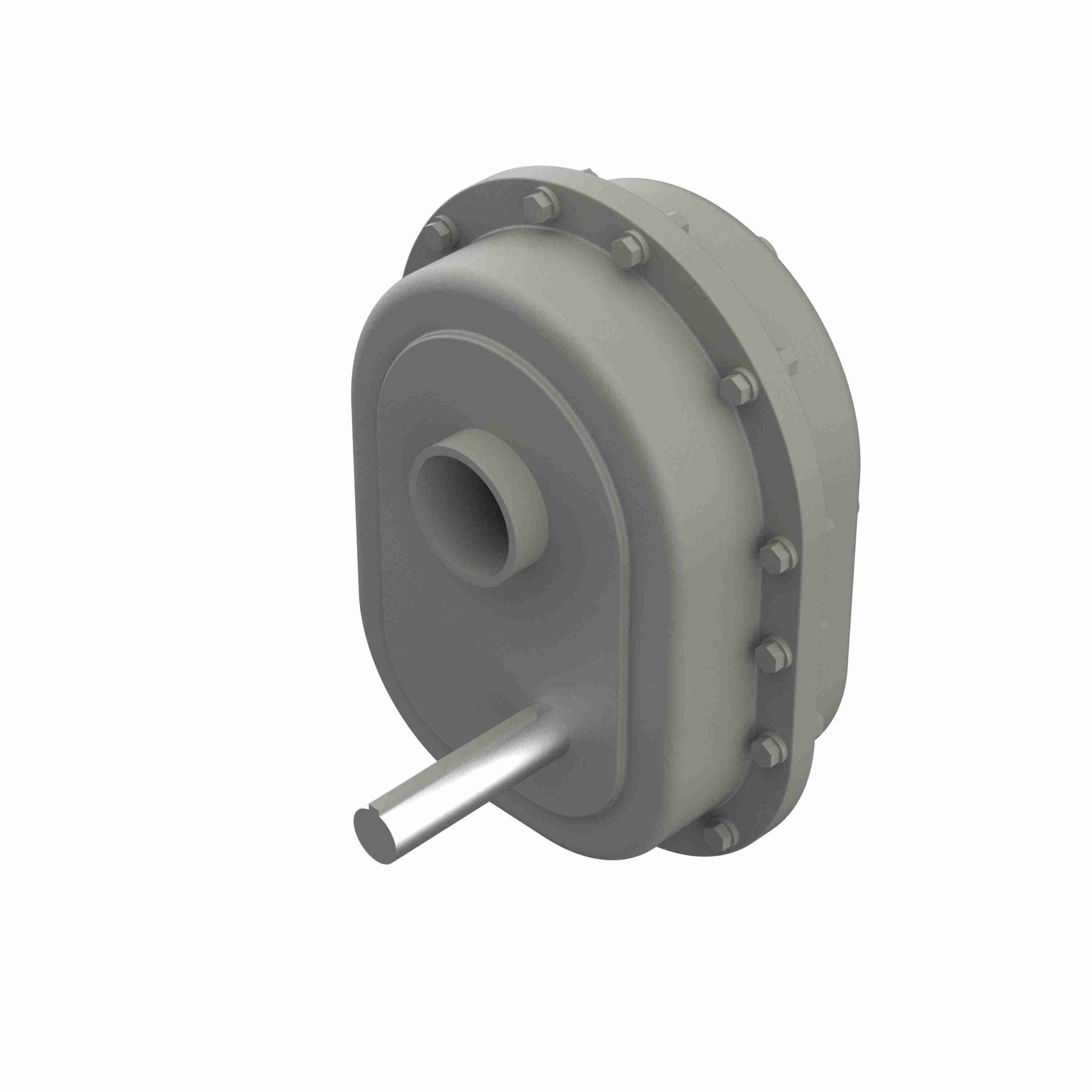

Browning Torque Taper Plus Shaft Mount Reducers Cast Iron Shaft Mount Tapered Bore Reducer – 315SMTP15
$30,971.43
Out of stock
Out of stock
| Bolt Size (in): | 0.625 in | Output Speed: | 116.67 |
|---|---|---|---|
| Product Type: | TorqTaper Plus (SMTP) | Input Torque: | 36.013 in-Lbs @1750 input rpm, 1 HP |
| Input Speed: | 1750 | Efficiency: | 80 |
| Ratio: | 15:1 | Housing Height (in): | 26.35 in |
| Standards met: | AGMA | Housing Width (in): | 19.9 in |
| Housing Length (in): | 14.5 in | Maximum Output Size (in): | 3.9375 in |
| Ratio Range: | 15:1 | Maximum Output Bore: | 3.9375 |
| Input Style: | Shaft | Mounting Style: | Shaft mount |
| Reducer Size: | 315 | Gear Type: | Helical |
| Maximum Output RPM: | 130 | Reduction: | Double |
| Output Bore: | Tapered Bushing | Drive Type: | Torque Arm |
| Input Shaft Diameter: | 2.125 | Input Shaft Keyseat (in): | 1/2 x 1/2 x 7 1/2 in |
| Output Torque Rating (in-lb): | 540.19 in-Lbs @1750 input rpm, 1 HP in/lbs | Housing Material: | Cast Iron |
| Output Shaft: | Tapered Bore | UPC: | 662460500355 |
| Weight: | 474.00 LB | Packaged Length: | 27.5 Inches |
| Packaged Width: | 20 Inches | Packaged Height: | 23.5 Inches |
| HTC: | 8483.40.1000 | Country of Origin: | United States of America |
