- Exclusive Taper Bushing: Single TorqTaper Bushing installs from either side of the unit for easy on – easy off mounting, with stabilizer ring.
- Standard Bearings: Commercially available Tapered Roller Bearings provide maximum overhung load capacity.
- Commercially available double lip seals ride on plunge ground shafts, with exclusive barrier seal arrangement.
- Options and Accessories: Complete range of motor mounts, belt guards, backstops, and screw conveyor drive options.
207SMTP25

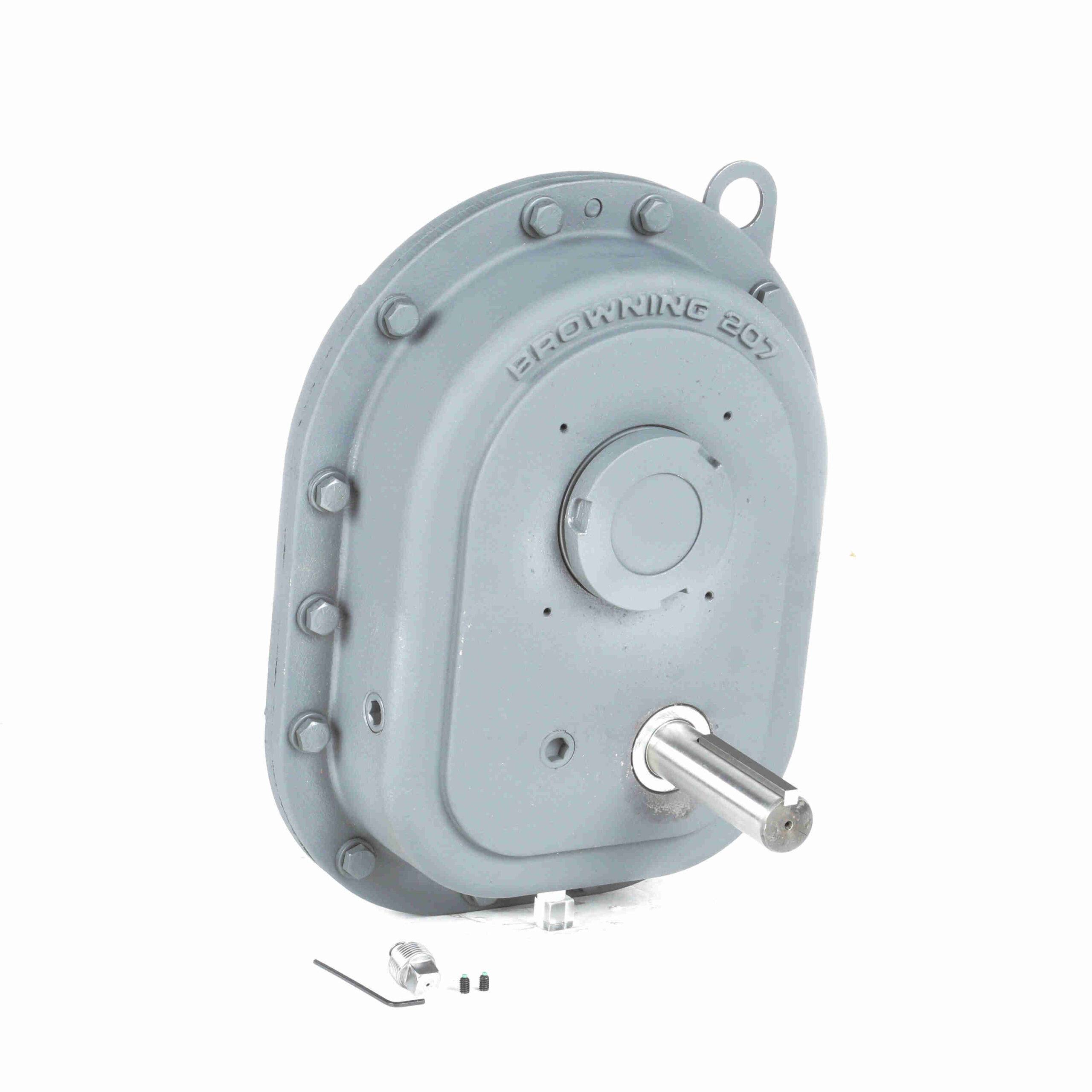

Browning Torque Taper Plus Shaft Mount Reducers Cast Iron Shaft Mount Tapered Bore Reducer – 207SMTP25
$11,552.59
Out of stock
Out of stock
| Ratio: | 25:1 | Bolt Size (in): | 0.4375 in |
|---|---|---|---|
| Output Speed: | 70 | Efficiency: | 80 |
| Input Speed: | 1750 | Product Type: | TorqTaper Plus (SMTP) |
| Input Torque: | 36.013 in-Lbs @1750 input rpm, 1 HP | Maximum Output Bore: | 2.4375 |
| Mounting Style: | Shaft mount | Input Style: | Shaft |
| Ratio Range: | 25:1 | Gear Type: | Helical |
| Reducer Size: | 207 | Input Shaft Diameter: | 1.438 |
| Input Shaft Keyseat (in): | .375 x .375 x 3.75 in | Housing Material: | Cast Iron |
| Output Shaft: | Tapered Bore | Output Torque Rating (in-lb): | 900.34 in-Lbs @1750 input rpm, 1 HP in/lbs |
| UPC: | 662288911661 | Weight: | 155.00 LB |
| Packaged Length: | 22.5 Inches | Packaged Width: | 18.5 Inches |
| Packaged Height: | 16.5 Inches | HTC: | 8483.40.1000 |
| Country of Origin: | United States of America |
Related products

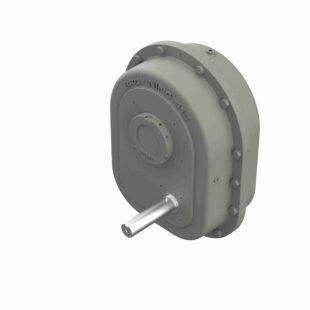

415SMTP25B
