- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
300ULR30

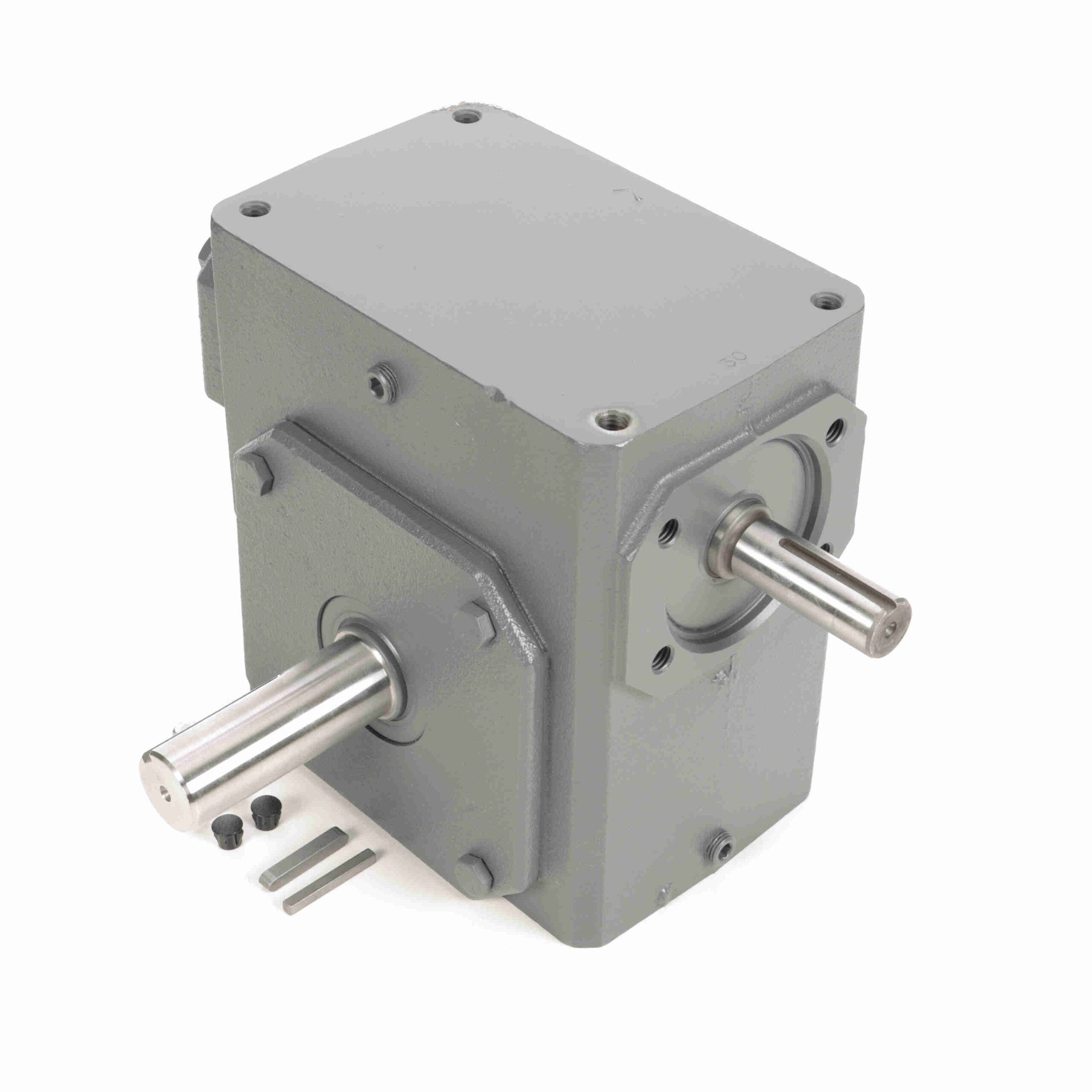

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 300ULR30
$2,089.49
Out of stock
Out of stock
| Thrust Rating - output shaft: | 3410 | Ratio: | 30:1 |
|---|---|---|---|
| Efficiency: | 80 | Key Length: | 1.31 |
| Input Speed: | 1750 | Reducer Style: | Standard |
| Shaft Seal Material: | Nitrile | Key Sq.: | 0.188 |
| Output Diameter (in): | 1.250 in | Output Shaft Assembly Code: | D |
| Ratio Range: | 30:1 | Series Code: | Raider |
| Product Type: | Worm Speed Reducer | Assembly: | U-LR |
| Center Distance (in): | 3 | Output Shaft Orientation: | LR |
| Output RPM: | 58.3 | No. of Gear Reductions: | Single |
| Output Key: | 1/4 X 2.25 | Input Keyway: | 3/16 X 1.31 in |
| Input Style: | Solid Shaft | Gear Type: | Worm |
| Input Diameter (in): | 0.875 in | Mounting Style: | No Base |
| Model Code: | 300U | Service Factor: | 1 |
| Input RPM: | 1, 75 | Input HP @ 1750 RPM: | 2.63 |
| Reducer: | Worm - Right Angle | Output Shaft Direction: | Double |
| Output Shaft: | Solid Shaft | Overhung Load Rating (Output Shaft(lb)): | 987 lb |
| Output Torque Rating (in-lb): | 2519 in-lbs @1750 input RPM in/lbs | Housing Material: | Cast Iron |
| UPC: | 6, 62288E+11 | Weight: | 64.00 LB |
