- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
206UR60

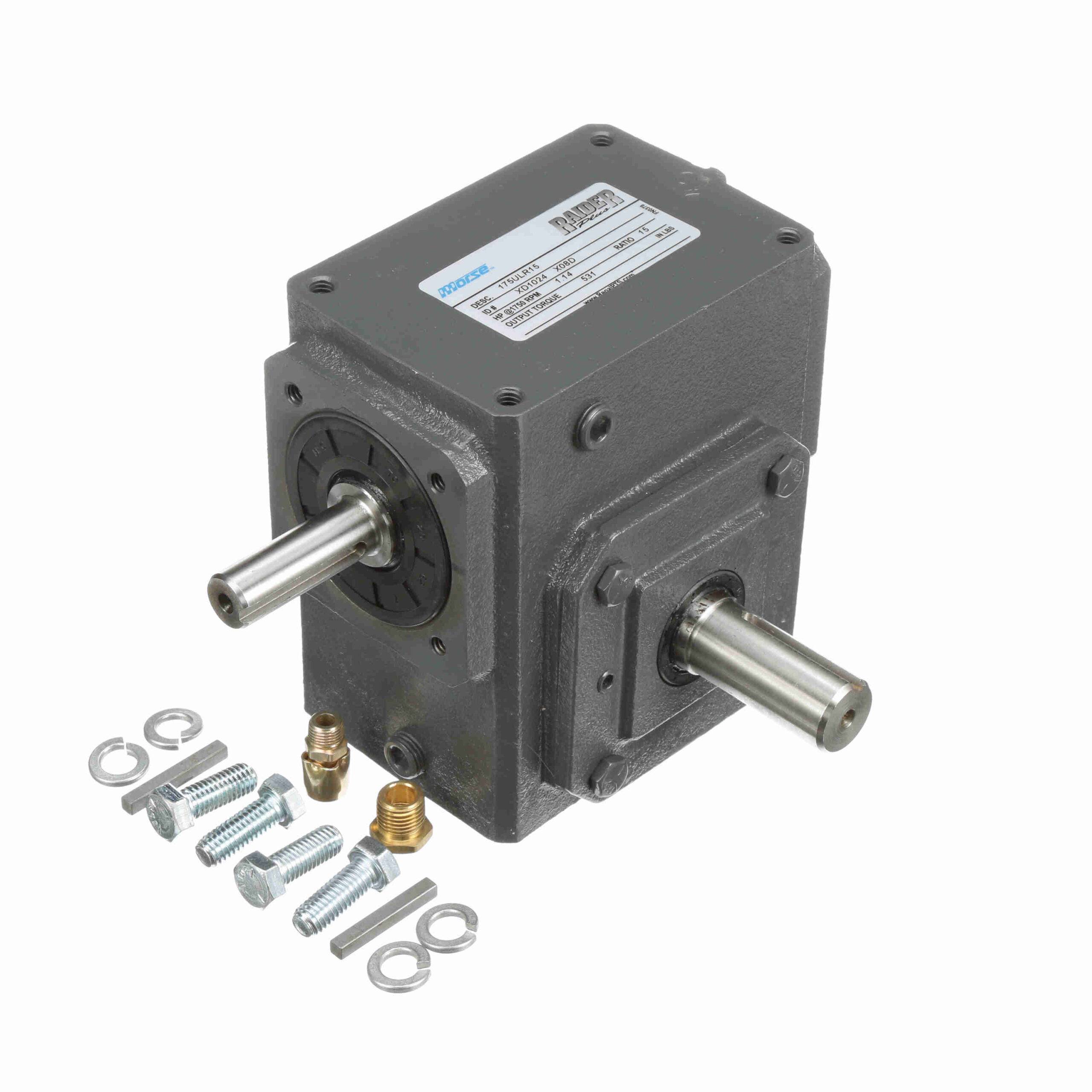

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 206UR60
$1,245.15
Out of stock
Out of stock
| Efficiency: | 80 | Reducer Style: | Standard |
|---|---|---|---|
| Key Length: | 1.38 | Thrust Rating - output shaft: | 2305 |
| Key Sq.: | 0.1875 | Input Speed: | 1750 |
| Ratio: | 60:1 | Shaft Seal Material: | Nitrile |
| Center Distance (in): | 2.06 | Gear Type: | Worm |
| Model Code: | 206U | Input RPM: | 1, 750 |
| Input Keyway: | 3/16 X 1.50 in | Output RPM: | 29.1 |
| Output Shaft Assembly Code: | R | Output Diameter (in): | 1.000 in |
| Product Type: | Worm Speed Reducer | Input Style: | Solid Shaft |
| Series Code: | Raider | Ratio Range: | 60:01:00 |
| Input Diameter (in): | 0.625 in | No. of Gear Reductions: | Single |
| Reducer: | Worm - Right Angle | Assembly: | U-R |
| Input HP @ 1750 RPM: | 0.52 | Mounting Style: | No Base |
| Output Key: | 1/4 X 1.75 | Service Factor: | 1 |
| Output Shaft Direction: | Right | Overhung Load Rating (Output Shaft(lb)): | 1, 078 lb |
| Output Shaft: | Solid Shaft | Output Torque Rating (in-lb): | 940 in-lbs @1750 input RPM in/lbs |
| Housing Material: | Cast Iron | UPC: | 6, 62288E+11 |
| Weight: | 25.00 LB |
