- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
300UL5

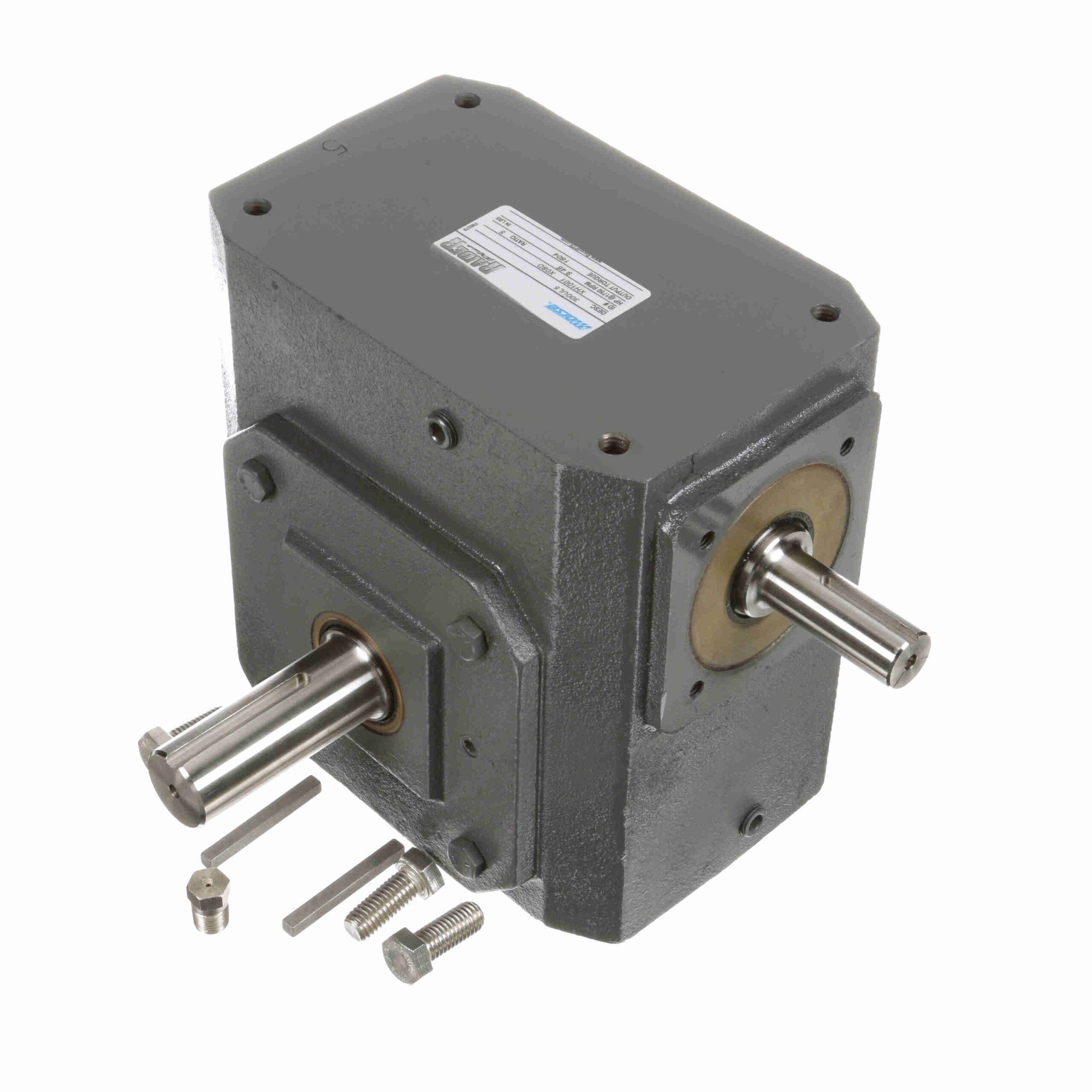

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 300UL5
$2,089.49
Out of stock
Out of stock
| Efficiency: | 80 | Key Length: | 1.31 |
|---|---|---|---|
| Thrust Rating - output shaft: | 2692 | Shaft Seal Material: | Nitrile |
| Ratio: | 5:1 | Key Sq.: | 0.188 |
| Input Speed: | 1750 | Reducer Style: | Standard |
| Output Shaft Assembly Code: | L | Product Type: | Worm Speed Reducer |
| Model Code: | 300U | Output Key: | 1/4 X 2.25 |
| Input HP @ 1750 RPM: | 9.46 | Ratio Range: | 5:1 |
| Mounting Style: | No Base | Reducer: | Worm - Right Angle |
| Gear Type: | Worm | No. of Gear Reductions: | Single |
| Center Distance (in): | 3 | Assembly: | U-L |
| Input RPM: | 1, 75 | Output RPM: | 350 |
| Input Keyway: | 3/16 X 1.31 in | Service Factor: | 1 |
| Input Diameter (in): | 0.875 in | Input Style: | Solid Shaft |
| Series Code: | Raider | Output Diameter (in): | 1.250 in |
| Output Shaft Direction: | Left | Output Torque Rating (in-lb): | 1544 in-lbs @1750 input RPM in/lbs |
| Housing Material: | Cast Iron | Output Shaft: | Solid Shaft |
| Overhung Load Rating (Output Shaft(lb)): | 987 lb | UPC: | 6, 62288E+11 |
| Weight: | 64.00 LB |
