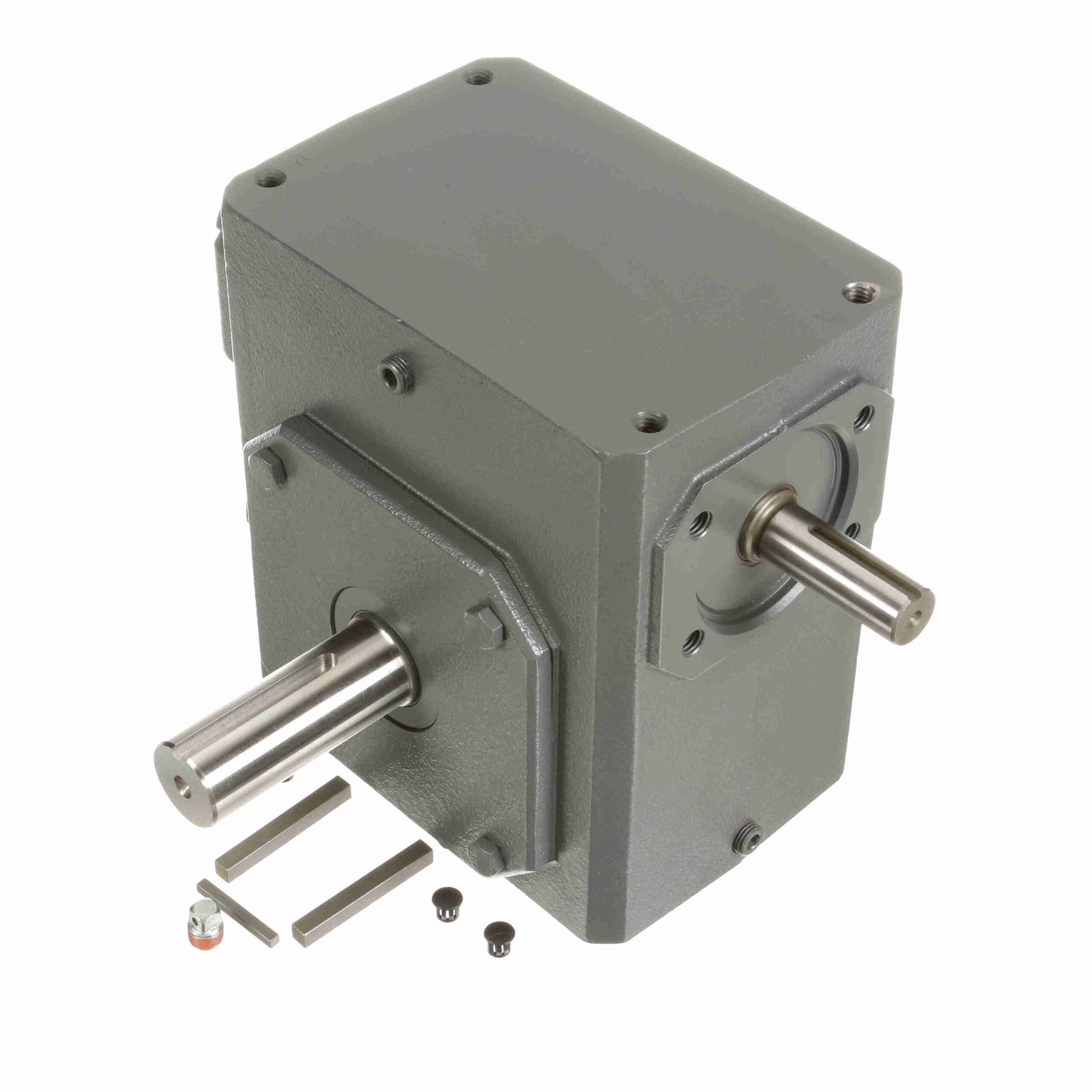

325ULR30

Rugged Cast-Iron Housing: Provides maximum strength and dependability.
High lead angle worm is case hardened, ground and polished.
Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Shaft Seal Material:	Nitrile	Key Sq.:	0.188
Key Length:	1.63	Reducer Style:	Standard
Input Speed:	1750	Ratio:	30:1
Thrust Rating - output shaft:	3410	Efficiency:	80
Output Diameter (in):	1.375 in	Input Style:	Solid Shaft
No. of Gear Reductions:	Single	Input HP @ 1750 RPM:	3.14
Ratio Range:	30:1	Output Shaft Assembly Code:	D
Input Keyway:	3/16 X 1.63 in	Center Distance (in):	3.25
Series Code:	Raider	Service Factor:	1
Input RPM:	1, 750	Assembly:	U-LR
Reducer:	Worm - Right Angle	Product Type:	Worm Speed Reducer
Mounting Style:	No Base	Input Diameter (in):	0.875 in
Output Key:	5/16 X 2.88	Output RPM:	58.3
Output Shaft Orientation:	LR	Gear Type:	Worm
Model Code:	325U	Output Shaft Direction:	Double
Housing Material:	Cast Iron	Output Shaft:	Solid Shaft
Output Torque Rating (in-lb):	3226 in-lbs @1750 input RPM in/lbs	Overhung Load Rating (Output Shaft(lb)):	2, 401 lb
UPC:	6, 62288E+11	Weight:	71.00 LB
Packaged Length:	17 Inches	Packaged Width:	17 Inches
Packaged Height:	15 Inches
