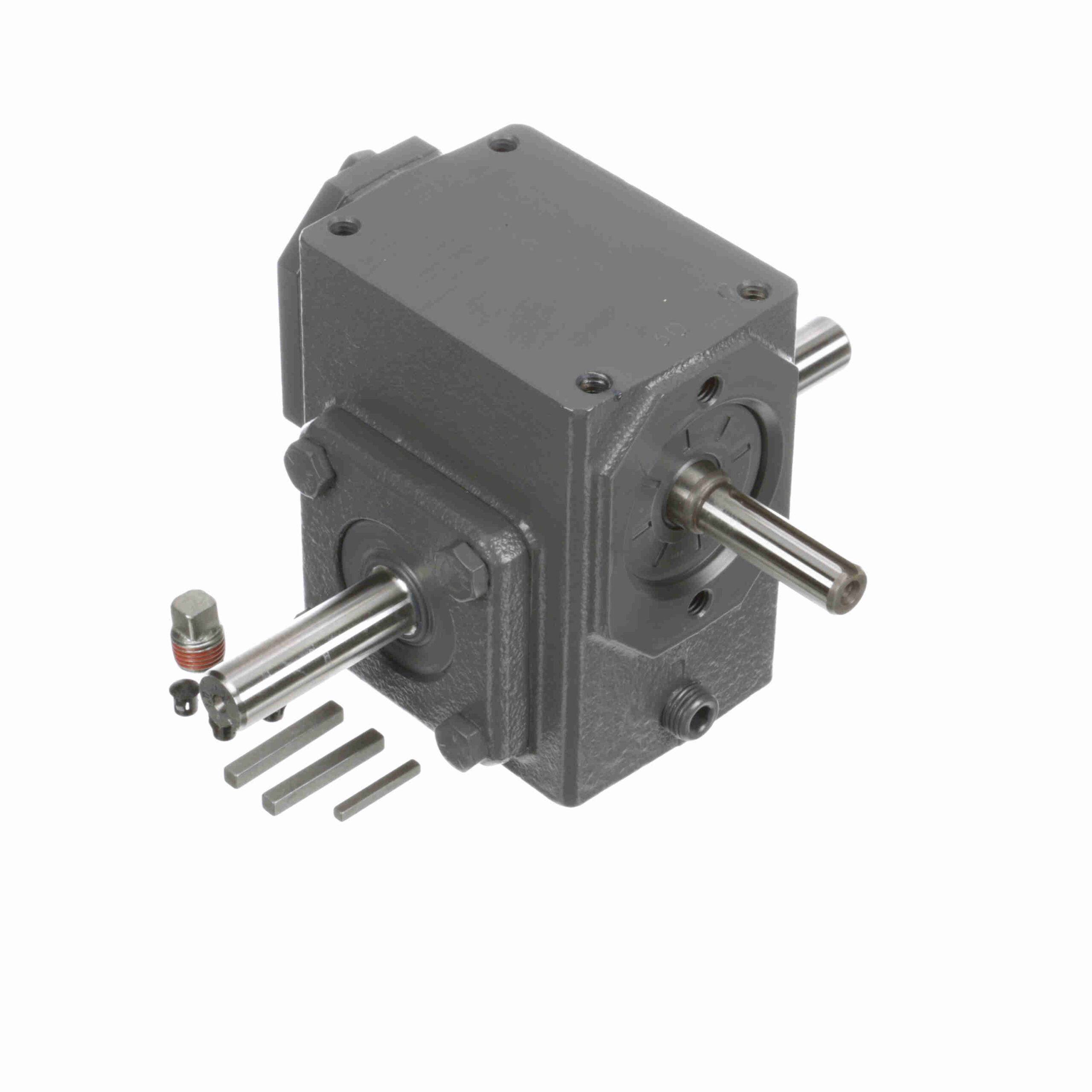

133ULR30

Rugged Cast-Iron Housing: Provides maximum strength and dependability.
High lead angle worm is case hardened, ground and polished.
Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Reducer Style:	Standard	Key Sq.:	0.125
Input Speed:	1750	Thrust Rating - output shaft:	1399
Ratio:	30:1	Key Length:	1
Shaft Seal Material:	Nitrile	Efficiency:	80
Output Diameter (in):	0.625 in	Assembly:	U-LR
Input Keyway:	1/8 X 1.38 in	Output Shaft Orientation:	LR
Output Shaft Assembly Code:	D	Output RPM:	58.3
Input HP @ 1750 RPM:	0.32	Ratio Range:	30:1
Service Factor:	1	Output Key:	3/16 X 1.31
Input Diameter (in):	0.5 in	Gear Type:	Worm
Center Distance (in):	1.33	Model Code:	133U
Product Type:	Worm Speed Reducer	Input Style:	Solid Shaft
Mounting Style:	No Base	Reducer:	Worm - Right Angle
Input RPM:	1, 75	No. of Gear Reductions:	Single
Series Code:	Raider	Output Shaft Direction:	Double
Housing Material:	Cast Iron	Output Shaft:	Solid Shaft
Output Torque Rating (in-lb):	314 in-lbs @1750 input RPM in/lbs	Overhung Load Rating (Output Shaft(lb)):	458 lb
UPC:	6, 62288E+11	Weight:	17.00 LB
