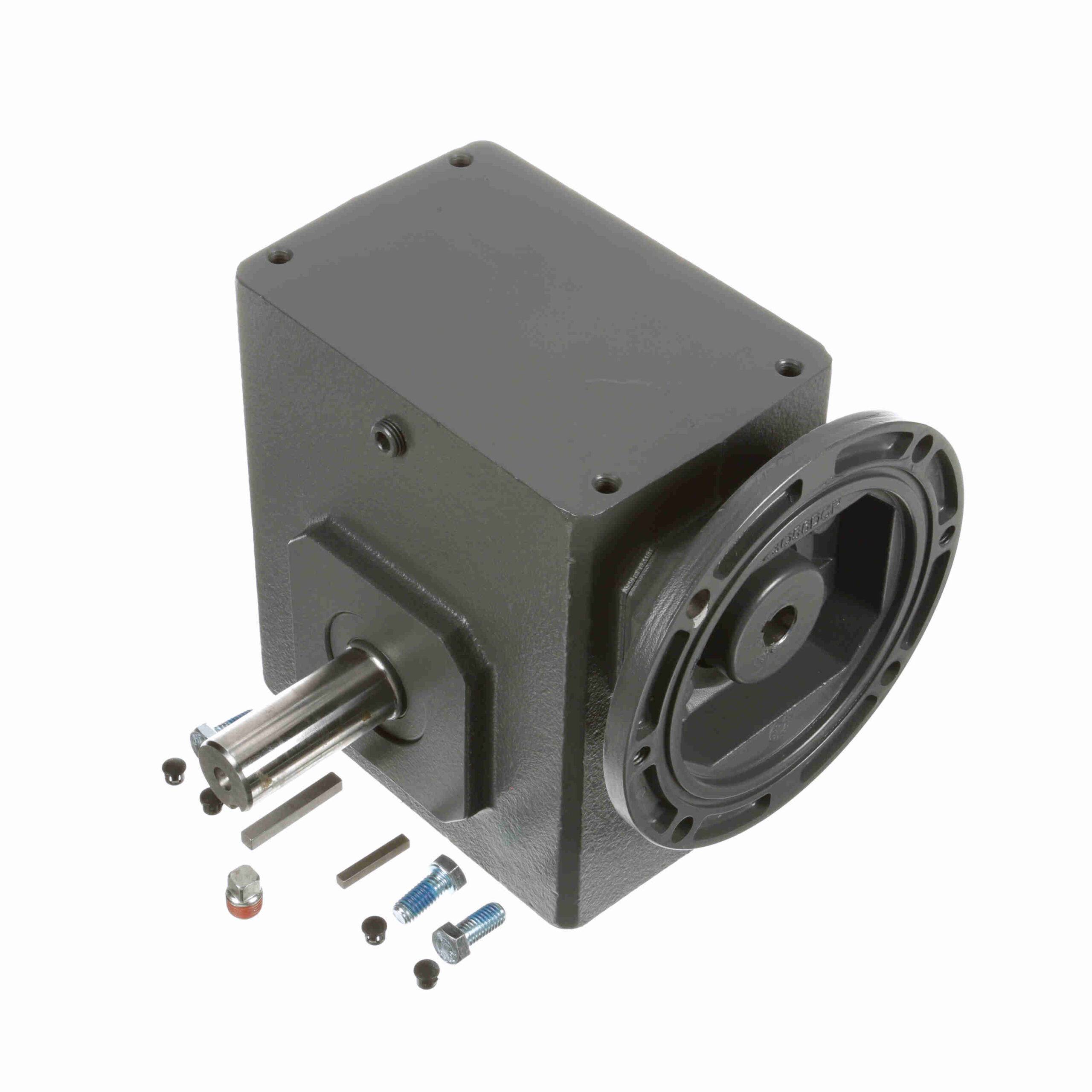

262Q56L10

Rugged Cast-Iron Housing: Provides maximum strength and dependability.
High lead angle worm is case hardened, ground and polished.
Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Input Speed:	1750	Ratio:	10:1
Input Bore (C Face):	0.625	Thrust Rating - output shaft:	1976
Efficiency:	80	Input Keyway (C Face):	3/16 X 3/32
Reducer Style:	Standard	Motor Frame Size:	56C
Shaft Seal Material:	Nitrile	Ratio Range:	10:1
Input RPM:	1, 750	Input Style:	C-Face Quill
Output Key:	1/4 X 2.00	Output Diameter (in):	1.125 in
Model Code:	262Q	Gear Type:	Worm
Center Distance (in):	2.62	Output RPM:	175
Series Code:	Raider	Reducer:	Worm - Right Angle
Input HP @ 1750 RPM:	4.07	Assembly:	Q-L
Mounting Style:	No Base	Service Factor:	1
Output Shaft Assembly Code:	L	No. of Gear Reductions:	Single
Product Type:	Worm Speed Reducer	Frame Size:	56C
Input Diameter (in):	0.625 in	Output Shaft Direction:	Left
Output Torque Rating (in-lb):	1475 in-lbs @1750 input RPM in/lbs	Overhung Load Rating (Output Shaft(lb)):	1, 295 lb
Housing Material:	Cast Iron	Output Shaft:	Solid Shaft
UPC:	6, 62288E+11	Weight:	45.82 LB
Packaged Length:	16.4 Inches	Packaged Width:	13 Inches
Packaged Height:	12.8 Inches
