- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
300Q56L30

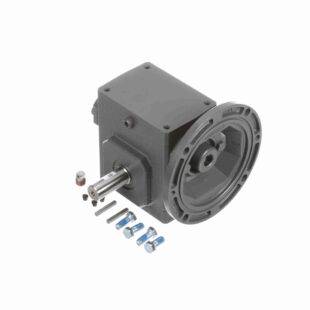

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 300Q56L30
$2,296.17
Out of stock
Out of stock
| Thrust Rating - output shaft: | 3410 | Efficiency: | 80 |
|---|---|---|---|
| Shaft Seal Material: | Nitrile | Ratio: | 30:1 |
| Input Bore (C Face): | 0.625 | Motor Frame Size: | 56C |
| Input Keyway (C Face): | 3/16 X 3/32 | Reducer Style: | Standard |
| Input Speed: | 1750 | Center Distance (in): | 3 |
| Series Code: | Raider | Output Diameter (in): | 1.250 in |
| Mounting Style: | No Base | Frame Size: | 56C |
| Service Factor: | 1 | Output RPM: | 58.3 |
| Input Style: | C-Face Quill | Product Type: | Worm Speed Reducer |
| Output Key: | 1/4 X 2.25 | No. of Gear Reductions: | Single |
| Input HP @ 1750 RPM: | 2.63 | Model Code: | 300Q |
| Gear Type: | Worm | Assembly: | Q-L |
| Output Shaft Assembly Code: | L | Ratio Range: | 30:01:00 |
| Reducer: | Worm - Right Angle | Input Diameter (in): | 0.625 in |
| Input RPM: | 1, 75 | Output Shaft Direction: | Left |
| Housing Material: | Cast Iron | Output Torque Rating (in-lb): | 2519 in-lbs @1750 input RPM in/lbs |
| Output Shaft: | Solid Shaft | Overhung Load Rating (Output Shaft(lb)): | 987 lb |
| UPC: | 6, 62288E+11 | Weight: | 68.00 LB |
