- Sealmaster® wide outer ring bearing insert for use in Sealmaster machined housings only
- Zone hardened double lock inner ring with 120° spacing setscrew lock with diamond faceted setscrews on each side of ball path
- Felt labyrinth seal and flinger for dry and dusty environment
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
3-23D

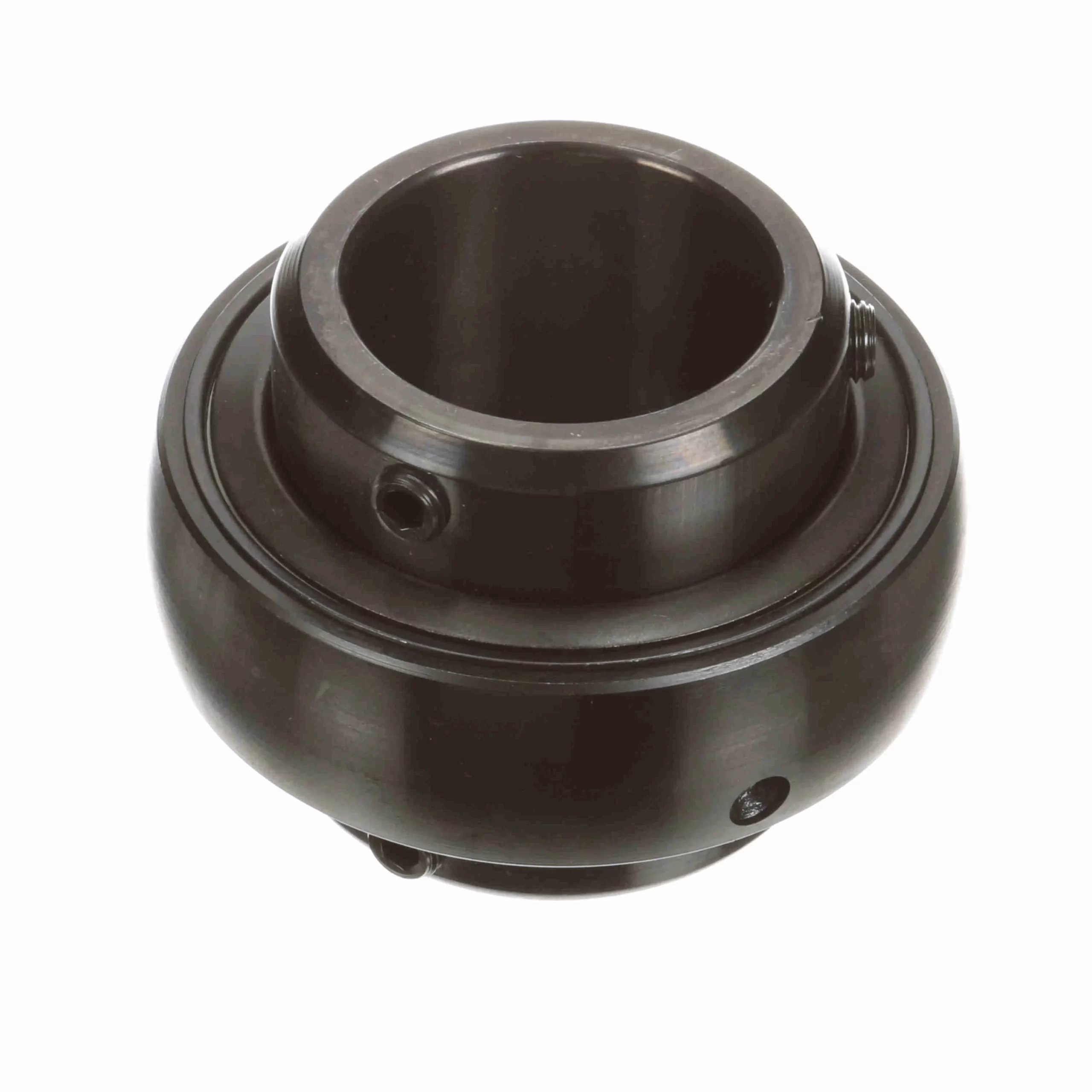

Sealmaster Mounted Insert Only Ball Bearing – 52100 Bearing Steel, Black Oxided – Double Setscrew Lock – 3-23D
$353.39
Out of stock
Out of stock
| Set Screw Thread: | 7/16-20 | Housing Type: | Insert Only |
|---|---|---|---|
| Insert Material: | 52100 Bearing Steel, Black Oxided | Radius: | 0.1 |
| Rolling Element: | Ball Bearing | Measure Units: | Inch |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 11, 789 lb |
| Misalignment: | ±2.0° Misalignment - Static Only | Speed (Max) (RPM): | 4100 rpm |
| Internal Clearance: | Standard | Outer Ring Land Profile: | Standard |
| Platform: | Gold Line Ball Bearing | Bearing Insert Coating: | Black Oxide Coated |
| End Cap: | No | Misalignment Type: | Static Only |
| Radial Static Load Capacity (lb): | 8, 150 lb | Cage Material: | PPS |
| Precision Rating: | ABEC 1 | Outer Race Profile: | Spherical |
| Inner Race Profile: | Wide Inner Ring | Type of Seal: | Felt Labyrinth Seal |
| Fixed vs. Expansion: | No | Locking Type: | Double Setscrew |
| Ability to Relubricate: | Yes | Retainer Type: | Land Riding Retainer |
| Lubrication Type: | Lithium Complex NLGI 2 Grease | Inner Race Heat Treat Method: | Zone-Hardened |
| Duty/Series: | Medium | Maximum Operating Temperature (F): | 220 °F |
| UPC: | 662461015209 | Weight: | 4.60 LB |
| Packaged Length: | 5.5 Inches | Packaged Width: | 3.13 Inches |
| Packaged Height: | 5.56 Inches | HTC: | 8482.10.5056 |
| Country of Origin: | Mexico |
