- Largest Selection of finished bore sheaves of any other manufacturer – Browning offers finished bore sheaves in both A& B Combination (A/B) configuration. 1& 2 Grooves are available to meet any fractional horsepower requirement.
- Combination Groove – All Browning BK Sheaves permit the running of A, 4L, B& 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
2BK62X 1 1/8

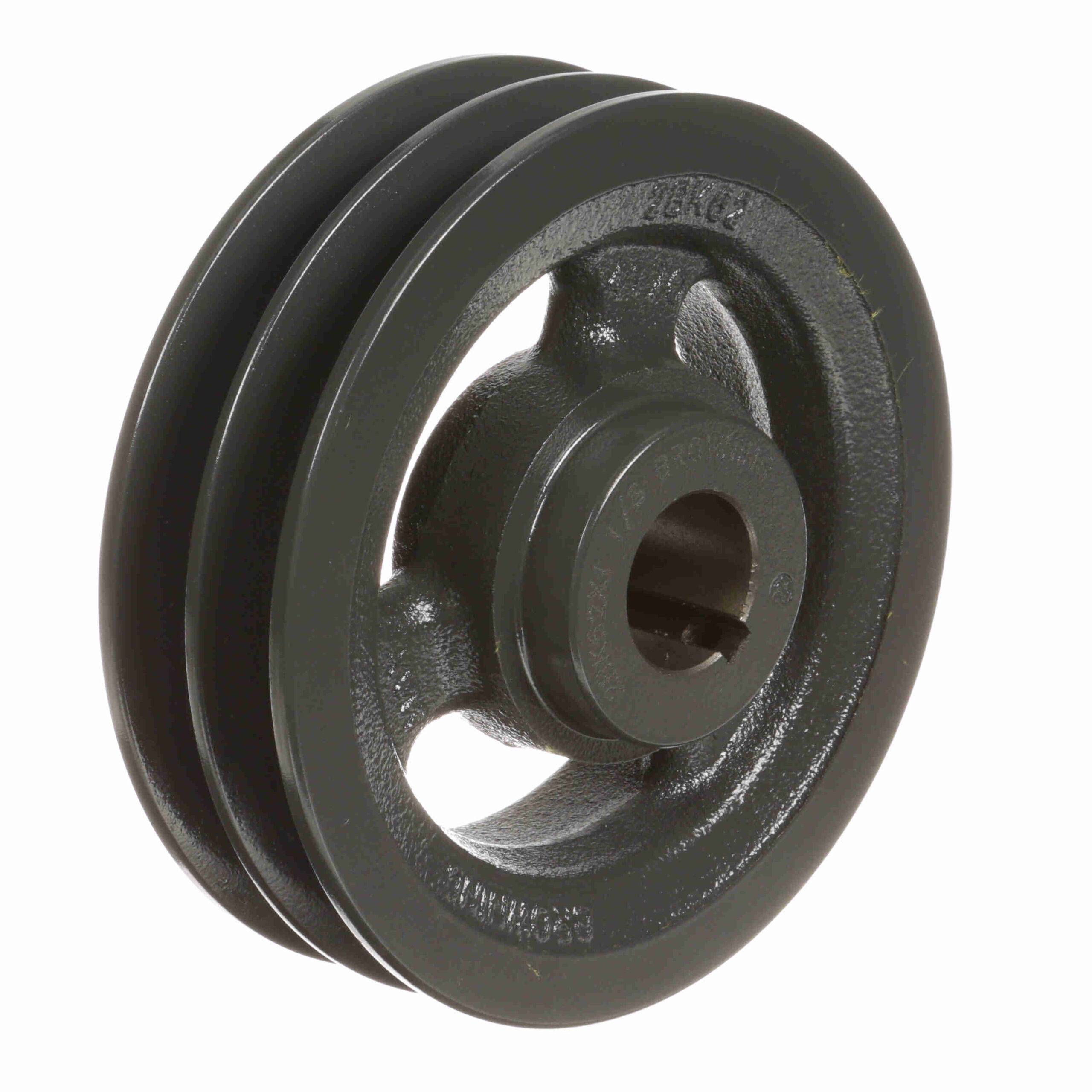

Browning 2 Groove Cast Iron FHP – Finished Bore Sheave – 2BK62X 1 1/8
$442.65
Out of stock
Out of stock
| Outside Diameter (in): | 5.95 in | Number of Grooves: | 2 |
|---|---|---|---|
| Pitch Diameter (A): | 5.4 | Model Name: | 2BK_Sheave_Master2 |
| Material: | Cast Iron | Pitch Diameter (B): | 5.9 |
| Bore (in): | 1.125 in | Belt Section: | A, B |
| Product Type: | FHP - Finished Bore | Bore Type: | Finished with Keyway and SS |
| Overall Width (in): | 2.21875 | Keyway Size: | .250 |
| Face Width (in): | 1.75 | Pulley Construction: | Spoked |
| Set Screw Tightening Torque (in-lb): | 90 | Set Screw Thread: | 5/16-18UNC-3AX1/4 |
| UPC: | 662289291366 | Weight: | 5.78 LB |
| Packaged Length: | 6.20 Inches | Packaged Width: | 6.40 Inches |
| Packaged Height: | 2.60 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
