- Combination Groove – All Browning B5V Sheaves permit the running of A, 4L, B, 5L& 5V Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
- Broad horsepower coverage – The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives
- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- New Casting design – The B5V castings were developed using CAD and Finite Elements Analysis to determine where to add and eliminate material.
2B5V42

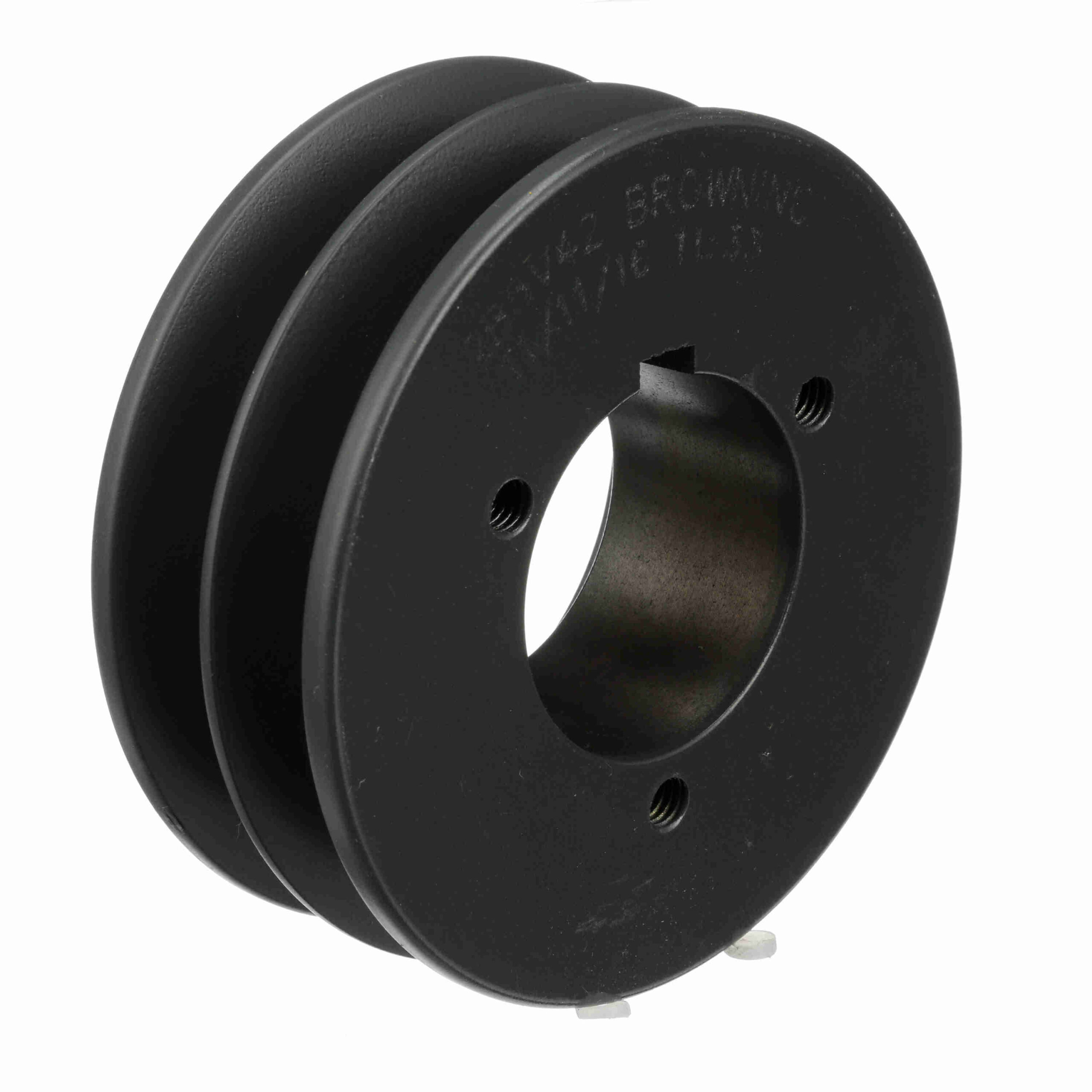

Browning 2 Groove Cast Iron Bushed Bore Multiple Sheave – 2B5V42
$88.65
Availability: 12 in stock
Availability: 12 in stock
| Material: | Cast Iron | Outside Diameter (in): | 4.48 in |
|---|---|---|---|
| Overall Length (in): | 2.546875 in | Pitch Diameter (B): | 4.5 |
| Datum Diameter (B): | 4.2 | Pitch Diameter (A): | 4 |
| Pulley Material: | Cast Iron | Datum Diameter (A): | 3.8 |
| Bushing Used: | P1 | Pitch Diameter (5V): | 4.3 |
| Model Name: | 2B5V-SheaveMaster | Number of Grooves: | 2 |
| Product Type: | Multiple Sheaves | Belt Section: | A, B, 5V |
| Bore (Min) (in): | 0.5 in | Bore Type: | Split Taper Bushed |
| Pulley Construction: | Plain | Bushing Bore Range: | 0.500 - 1.750 |
| Overall Width (in): | 2.59375 | Keyway Size: | 0.375 |
| Face Width (in): | 1.7188 | UPC: | 662289034444 |
| Weight: | 3.00 LB | Packaged Length: | 4.70 Inches |
| Packaged Width: | 5.00 Inches | Packaged Height: | 2.40 Inches |
| HTC: | 8483.50.9040 | Country of Origin: | Mexico |
