- Largest Selection of finished bore sheaves of any other manufacturer – Browning offers finished bore sheaves in both A& B Combination (A/B) configuration. 1& 2 Grooves are available to meet any fractional horsepower requirement.
- Sheaves are Statically Balanced – All sheaves are statically balanced to assure smooth, vibration free performance.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
2AK74X 1 3/16

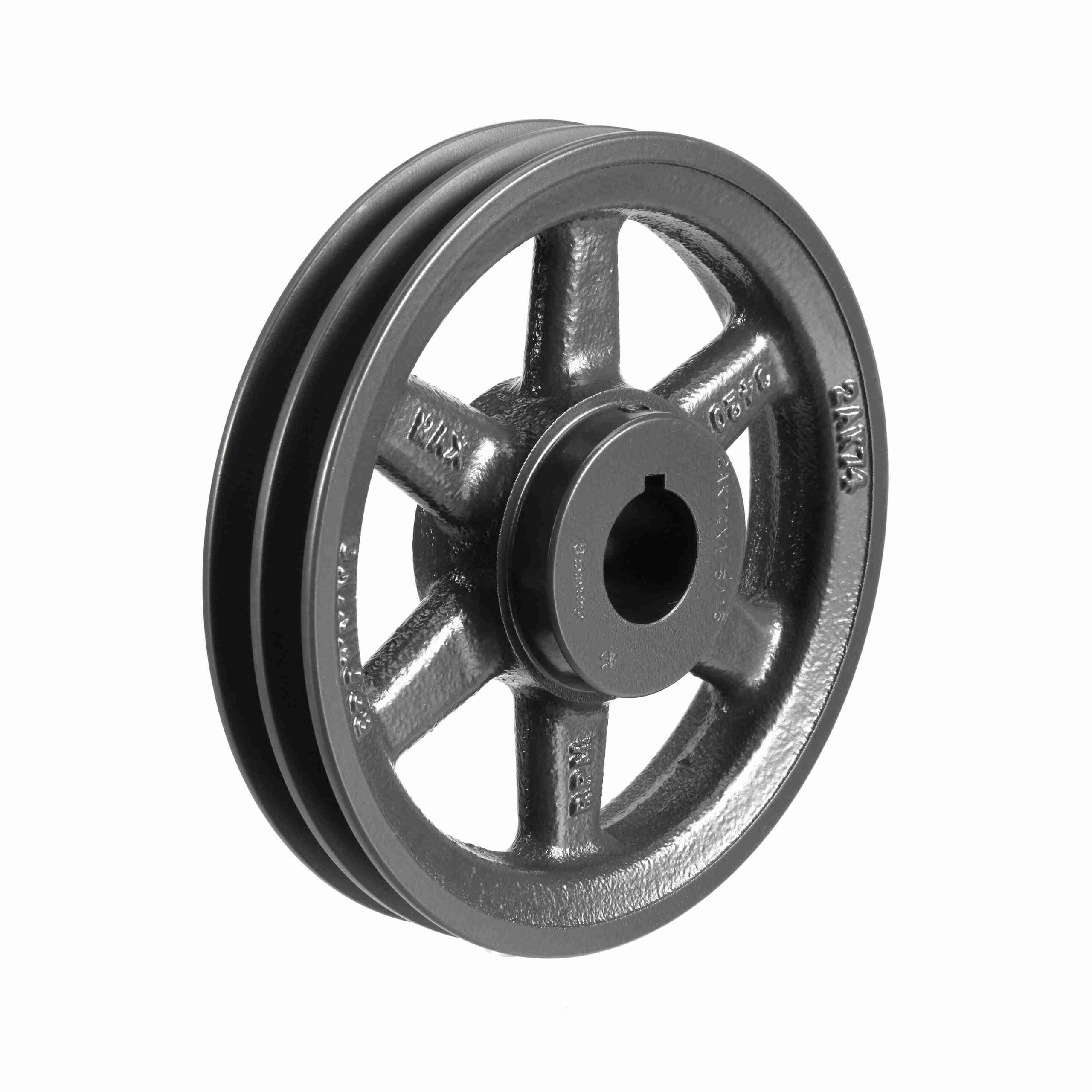

Browning 2 Groove Cast Iron FHP – Finished Bore Sheave – 2AK74X 1 3/16
$426.95
Out of stock
Out of stock
| Material: | Cast Iron | Pitch Diameter (A): | 7.2 |
|---|---|---|---|
| Datum (3L): | 6.66 | Outside Diameter (in): | 7.25 in |
| Number of Grooves: | 2 | Bore (in): | 1.1875 in |
| Product Type: | FHP - Finished Bore | Belt Section: | 3L, A |
| Bore Type: | Finished with Keyway and SS | Keyway Size: | .250 |
| Set Screw Tightening Torque (in-lb): | 165 | Set Screw Thread: | 5/16-18UNC-3AX3/8 |
| UPC: | 662289170432 | Weight: | 6.01 LB |
| Packaged Length: | 7.60 Inches | Packaged Width: | 7.50 Inches |
| Packaged Height: | 1.90 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
