- Metric stud type cam follower
- Crowned outside diameter
- Retained (caged) needle rolling elements
- Slot hole
- Eccentric bushing configuration
- Jam nuts and lube fitting included
MCFRE 62

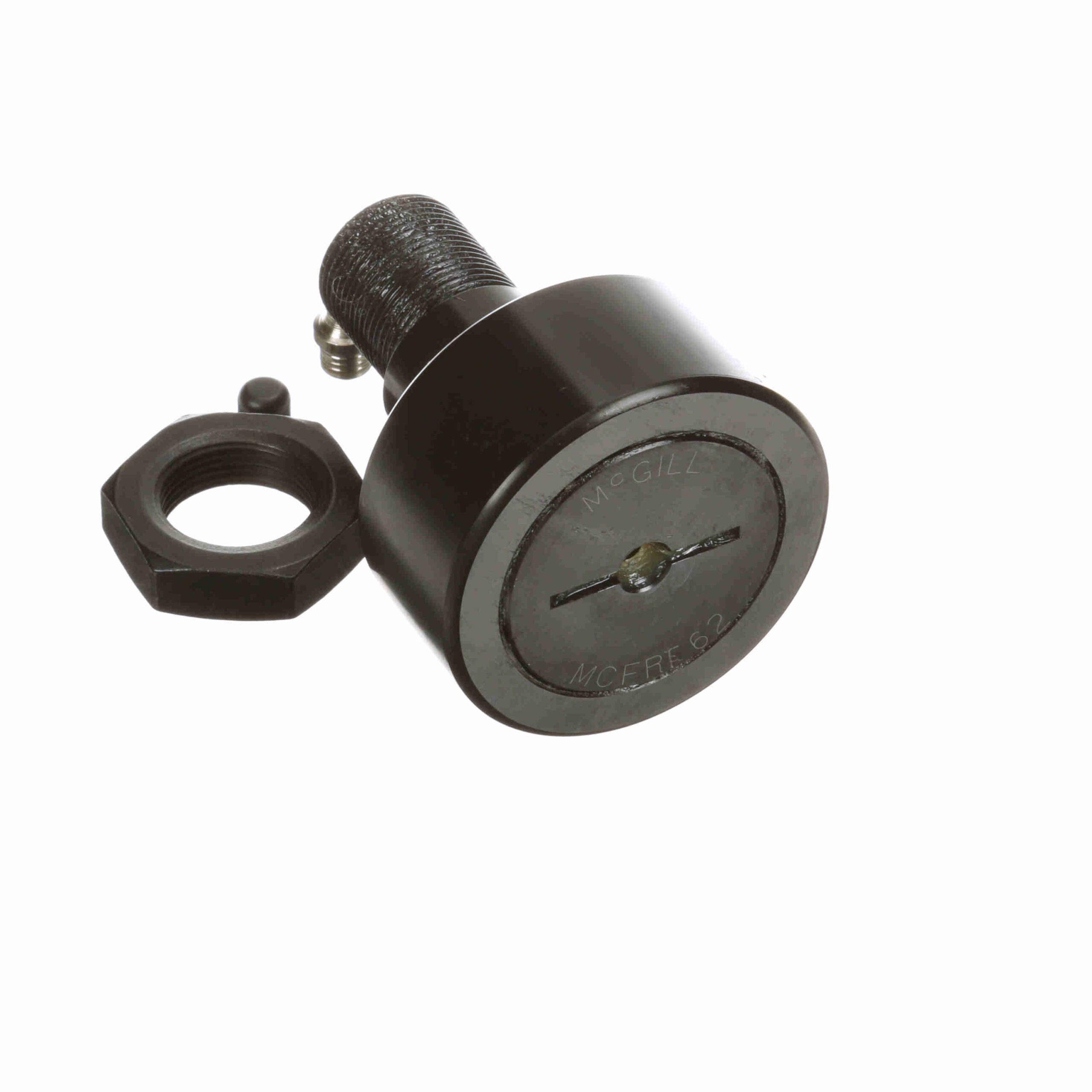

McGill CAMROL® Crowned Metric Cam Follower – Stud Mount Roller – Screwdriver Slot – MCFRE 62
Out of stock
| Hex/Slot: | Screwdriver Slot | Rolling Element: | Needle Roller - Caged |
|---|---|---|---|
| Adjustment: | Eccentric Bushing | Dynamic Track Roller Load Rating (N): | 26, 380 N |
| Sealing: | Unsealed | Limiting Speed: | 3 |
| O.D. Configuration: | Crowned | Dynamic Radial Rating: | 6 |
| Series: | Metric CAMROL® | Material: | Bearing Steel, Black Oxide Finish |
| Industry Standard: | DIN | Stud Type: | Standard Stud with Eccentric Bushing |
| Tolerance Class: | P0 Equivalent | Platform: | CAMROL® |
| Static Load Rating: | 46 | Static Track Roller Load Rating: | 46 |
| Roller Shape: | Crowned | Clamping Torque (Nm): | 216 N·m |
| Dynamic Load Rating (N): | 31, 680 N | Ability to Relubricate: | Yes |
| UPC: | 726166115838 | Weight: | 2.11 LB |
| Packaged Length: | 2.9 Inches | Packaged Width: | 3.4 Inches |
| Packaged Height: | 2.6 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | China |
