- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
262Q56H60 115

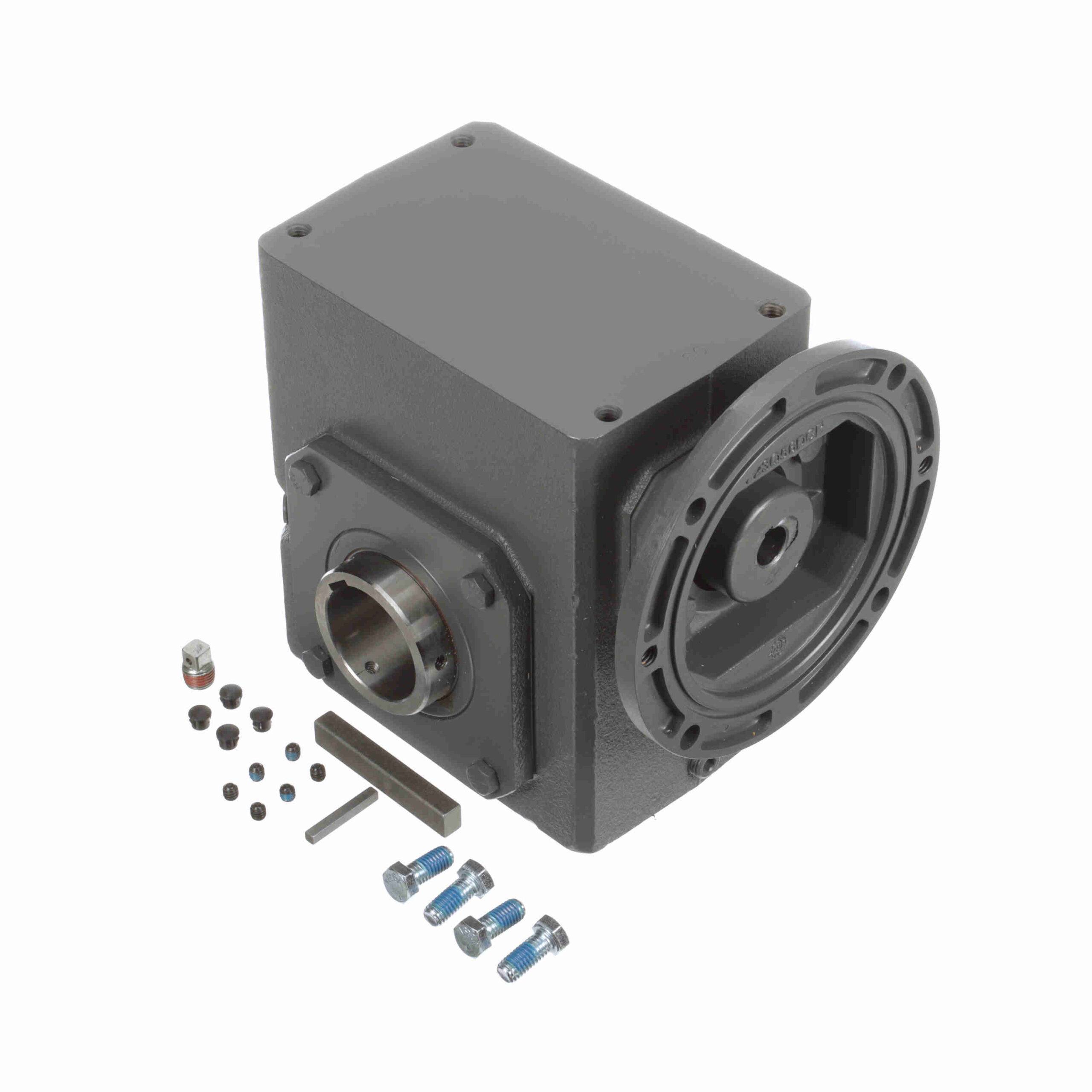

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 262Q56H60 115
$2,146.21
Out of stock
Out of stock
| Efficiency: | 80 | Ratio: | 60:1 |
|---|---|---|---|
| Input Bore (C Face): | 0.63 | Input Keyway (C Face): | 3/16x3/32 |
| Thrust Rating - output shaft: | 2091 | Reducer Style: | Standard |
| Motor Frame Size: | 56C | Input Speed: | 1750 |
| No. of Gear Reductions: | Single | Input Diameter (in): | 0.625 in |
| Gear Type: | Worm | Ratio Range: | 60:1 |
| Center Distance (in): | 2.63 | Output Diameter (in): | 1.938 in |
| Frame Size: | 56C | Input HP @ 1750 RPM: | 1.216 |
| Mounting Style: | Shaft Mt | Input Style: | C-Face Quill |
| Service Factor: | 1 | Series Code: | Raider |
| Product Type: | Worm Speed Reducer | Output Shaft Direction: | L or R |
| Output Shaft: | Hollow Bore | Housing Material: | Cast Iron |
| Overhung Load Rating (Output Shaft(lb)): | 1, 625 lb | Output Torque Rating (in-lb): | 1805 in-lbs @1750 input RPM in/lbs |
| UPC: | 6, 62288E+11 | Weight: | 42.79 LB |
| Packaged Length: | 12.2 Inches | Packaged Width: | 12.1 Inches |
| Packaged Height: | 11.5 Inches |
