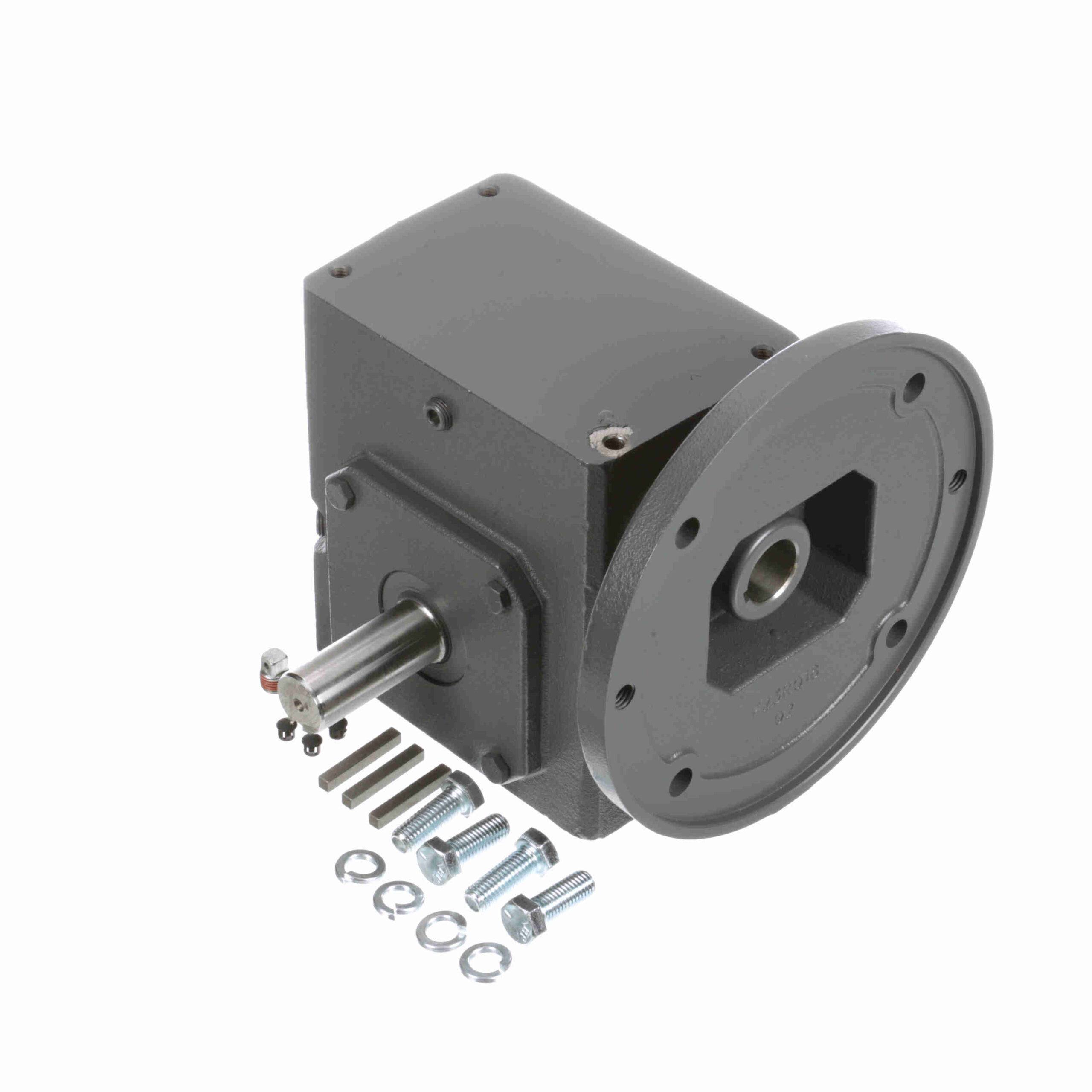

262Q180LR5

Rugged Cast-Iron Housing: Provides maximum strength and dependability.
High lead angle worm is case hardened, ground and polished.
Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Reducer Style:	Standard	Input Keyway (C Face):	1/4 X 1/8
Shaft Seal Material:	Nitrile	Thrust Rating - output shaft:	1596
Input Speed:	1750	Efficiency:	80
Motor Frame Size:	180TC	Input Bore (C Face):	1.125
Ratio:	5:1	Center Distance (in):	2.63
Output Shaft Assembly Code:	D	Input Diameter (in):	1.125 in
Frame Size:	180TC	Input Style:	C-Face Quill
Input RPM:	1, 750	Service Factor:	1
No. of Gear Reductions:	Single	Gear Type:	Worm
Mounting Style:	No Base	Ratio Range:	5:01
Output Shaft Orientation:	LR	Product Type:	Worm Speed Reducer
Output Diameter (in):	1.125 in	Assembly:	Q-LR
Model Code:	262Q	Output RPM:	350
Series Code:	Raider	Input HP @ 1750 RPM:	6.19
Output Key:	1/4 X 2.00	Reducer:	Worm - Right Angle
Output Shaft Direction:	Double	Output Torque Rating (in-lb):	1130 in-lbs @1750 input RPM in/lbs
Output Shaft:	Solid Shaft	Housing Material:	Cast Iron
Overhung Load Rating (Output Shaft(lb)):	1, 295 lb	UPC:	6, 62288E+11
Weight:	53.73 LB	Packaged Length:	16.3 Inches
Packaged Width:	12.9 Inches	Packaged Height:	12.9 Inches
