- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
133Q56L60

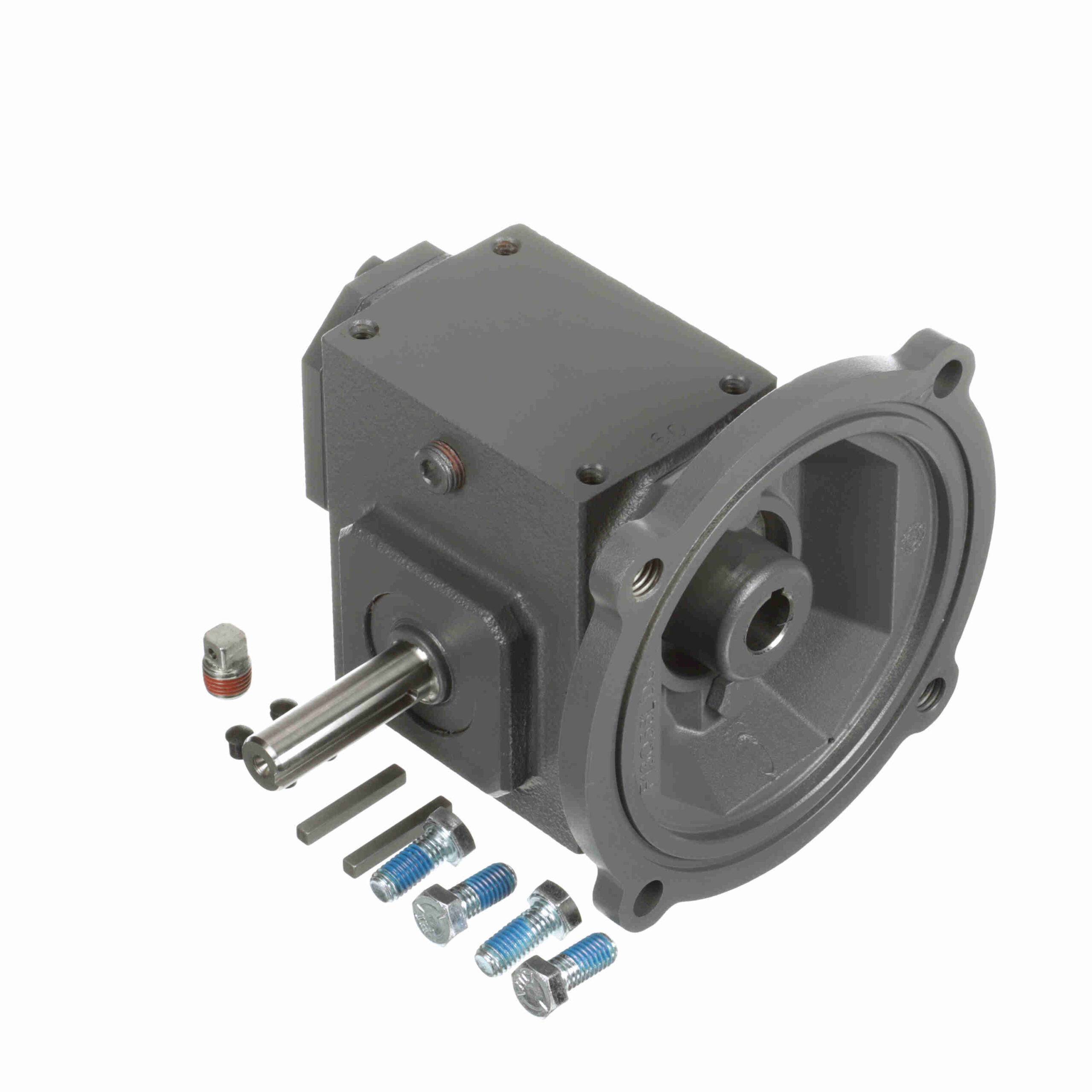

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 133Q56L60
$888.88
Out of stock
Out of stock
| Motor Frame Size: | 56C | Input Keyway (C Face): | 3/16 X 3/32 |
|---|---|---|---|
| Ratio: | 60:1 | Input Speed: | 1750 |
| Thrust Rating - output shaft: | 1399 | Shaft Seal Material: | Nitrile |
| Efficiency: | 80 | Input Bore (C Face): | 0.625 |
| Reducer Style: | Standard | Output Diameter (in): | 0.625 in |
| Center Distance (in): | 1.33 | Frame Size: | 56C |
| Input RPM: | 1, 750 | Model Code: | 133Q |
| Output Shaft Assembly Code: | L | Input Style: | C-Face Quill |
| Output Key: | 3/16 X 1.31 | Assembly: | Q-L |
| Reducer: | Worm - Right Angle | Ratio Range: | 60:01:00 |
| Input Diameter (in): | 0.625 in | Service Factor: | 1 |
| Product Type: | Worm Speed Reducer | Output RPM: | 29.1 |
| Mounting Style: | No Base | Gear Type: | Worm |
| No. of Gear Reductions: | Single | Series Code: | Raider |
| Input HP @ 1750 RPM: | 0.19 | Output Shaft Direction: | Left |
| Output Torque Rating (in-lb): | 313 in-lbs @1750 input RPM in/lbs | Housing Material: | Cast Iron |
| Output Shaft: | Solid Shaft | Overhung Load Rating (Output Shaft(lb)): | 458 lb |
| UPC: | 6, 62288E+11 | Weight: | 17.00 LB |
