- Non-Lubricated design for toughest industrial applications.
- Provides torsional damping to reduce torsional vibration and cushion shock loads.
- Redundant fail safe design with interlocking parts.
- Easy to assemble and operate in hot, wet, gritty tough environment.
25 UB RHUB

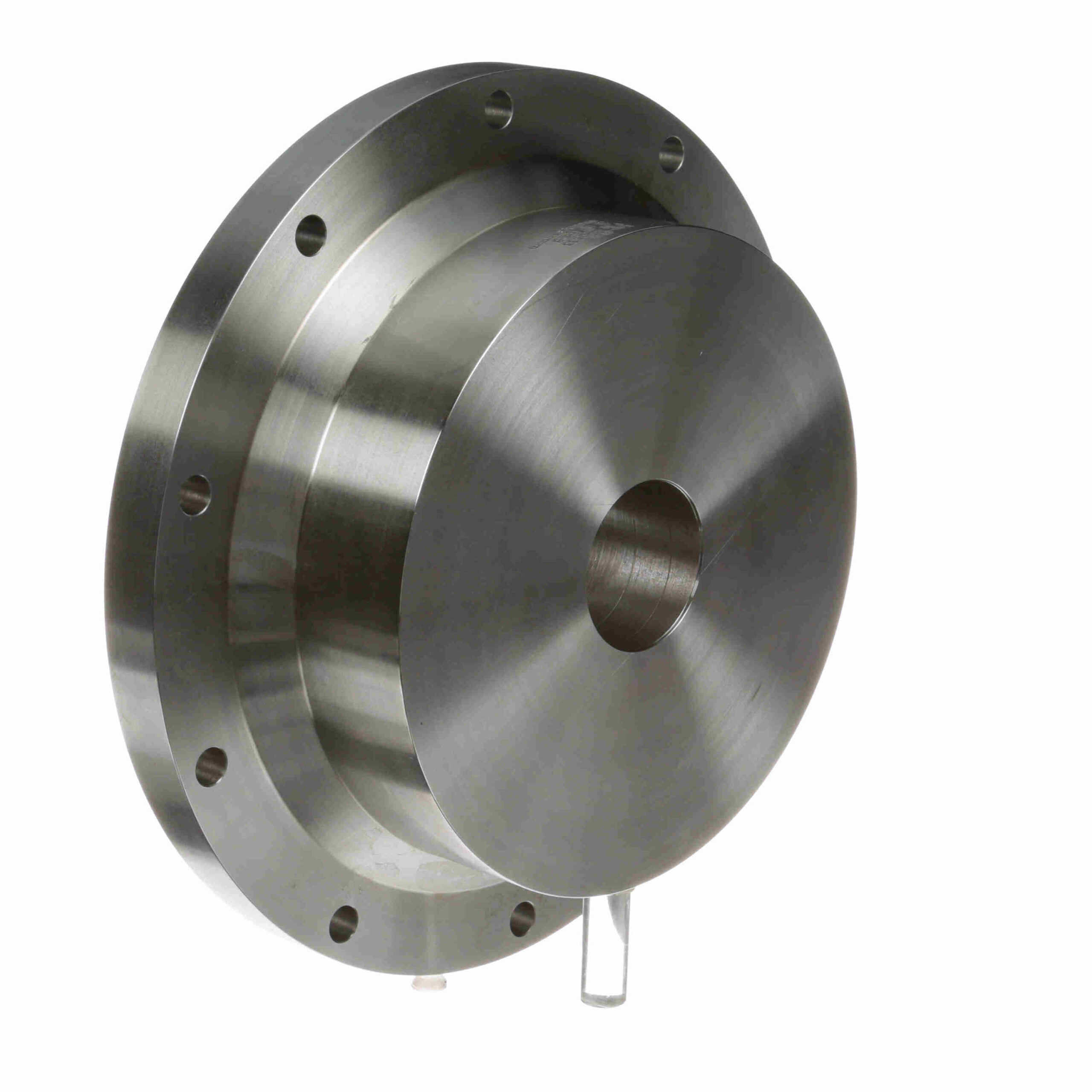

Kop-Flex Elastomeric Coupling Rigid Hub – Style UB – Size 25 – Rough Bore – 25 UB RHUB
Out of stock
| Model: | Max-C | Bore Type: | Rough Bore |
|---|---|---|---|
| Style: | UB | Coupling Size: | 25 |
| Material: | Carbon Steel | Measurement System: | Imperial |
| Lube/Non-Lube: | Non-Lubricated | Coupling Type: | Elastomeric Coupling |
| Outside Diameter (in): | 9.5 in | Component Type: | Rigid Hub |
| Hub Diameter (in): | 6.75 in | Length Through Bore (in): | 2.62 in |
| Speed Max (rpm): | 3, 200 rpm | Torque Rating (in-lb): | 13, 900 in/lbs |
| Max Bore Rigid Hub (in): | 3.88 in | Max Bore Flex Hub (in): | 2.62 in |
| Stock Rough Bore (in): | 3.88 in | UPC: | 662384109580 |
| Weight: | 33.67 LB | Packaged Length: | 9.7 Inches |
| Packaged Width: | 9.8 Inches | Packaged Height: | 4.6 Inches |
| HTC: | 8483.90.8010 | Country of Origin: | United States of America |
