- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available from Stock
25 O/L 2P

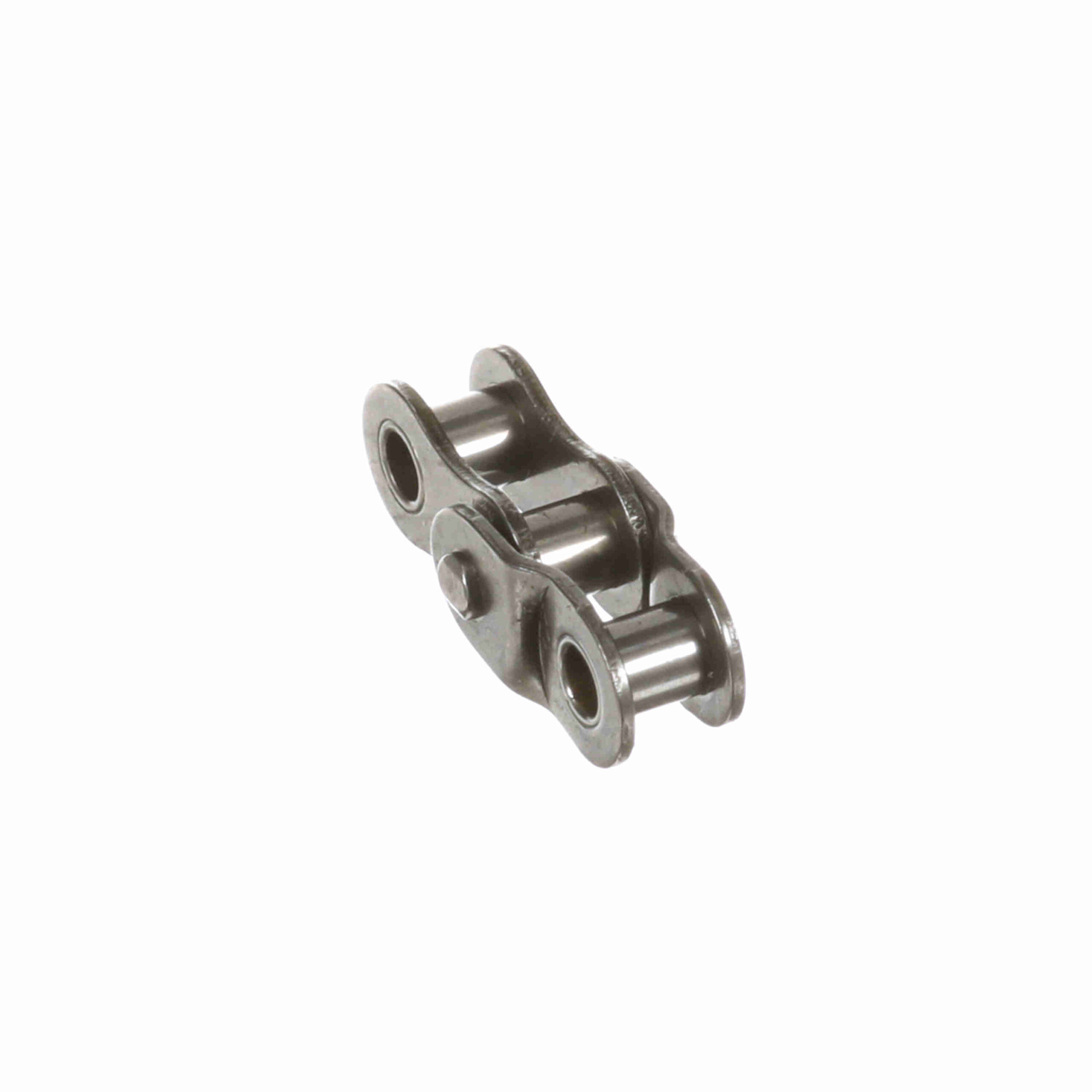

Morse Standard Roller Chain Offset Link – 25 O/L 2P
$5.63
Out of stock
Out of stock
| Centerline to Opposite cotter Pin Side: | 0.156 | Chain Size: | 25 |
|---|---|---|---|
| Number of Strands/Width: | 1 | Width Over Pins/Total Width: | 0.312 |
| Side Plate Cfg.: | Hourglass | Average Ultimate Tensile Strength (psi): | 875 |
| Pin Diameter (in): | 0.0905 in | Roller Width (in): | 0.125 in |
| Two Pitch Offset Link: | Riveted | Roller Diameter (in): | 0.13 in |
| Centerline to Outside of cotter Pin: | 0.188 | Inside Plate Height: | 0.234 |
| Plate Thickness: | 0.03 | Material: | Steel |
| Chain Pitch (in): | 0.25 in | Chain Type: | Standard |
| Product Type: | Roller Chain | Link Type: | Offset Link |
| UPC: | 662460388823 | Weight: | 0.01 LB |
| Packaged Length: | 3.00 Inches | Packaged Width: | 0.95 Inches |
| Packaged Height: | 0.35 Inches | HTC: | 7315.19.0000 |
| Country of Origin: | Japan |
