- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
237UR30

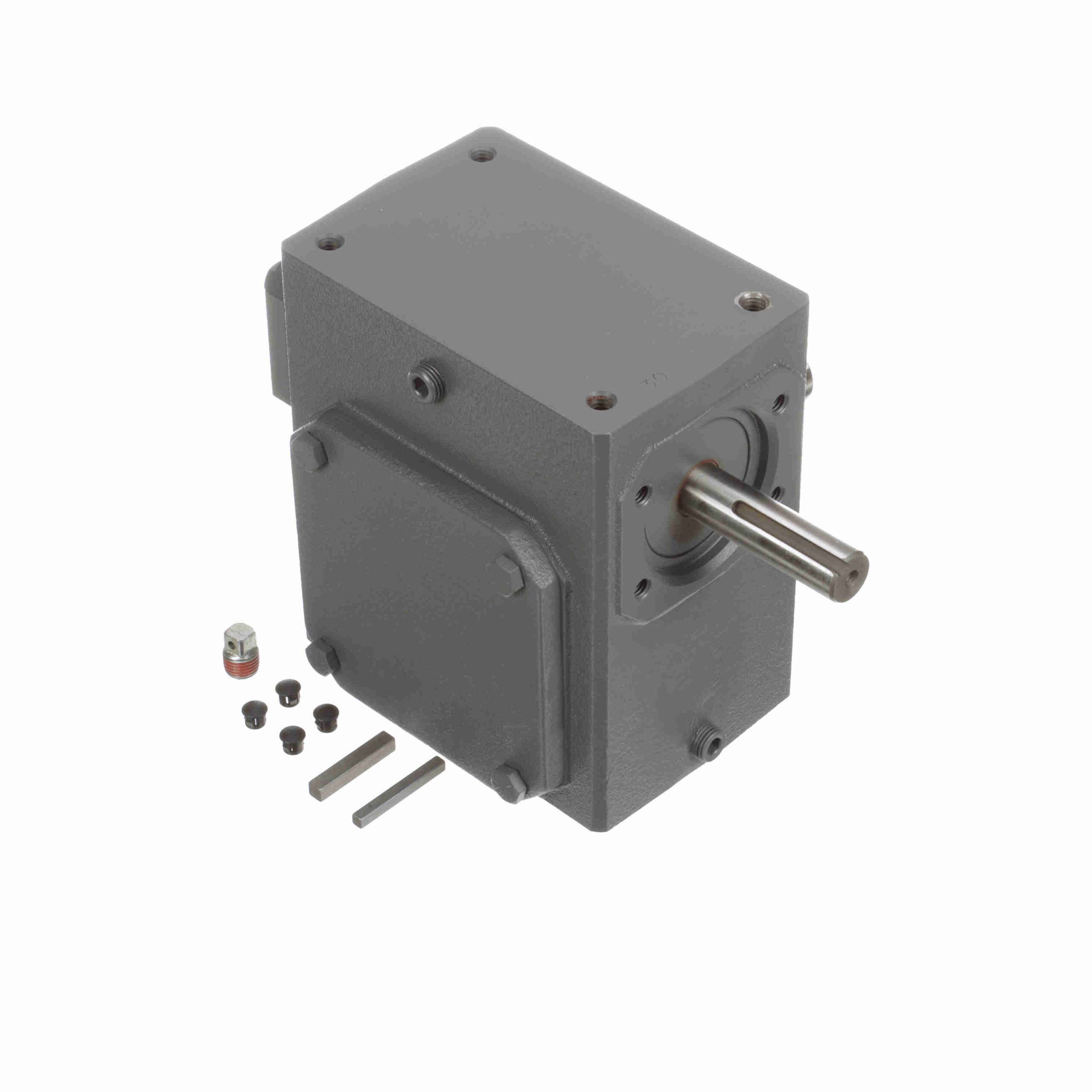

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 237UR30
$1,298.59
Out of stock
Out of stock
| Reducer Style: | Standard | Thrust Rating - output shaft: | 2305 |
|---|---|---|---|
| Ratio: | 30:1 | Key Length: | 1.63 |
| Key Sq.: | 0.1875 | Input Speed: | 1750 |
| Efficiency: | 80 | Shaft Seal Material: | Nitrile |
| Ratio Range: | 30:1 | Output Key: | 1/4 X 1.75 |
| No. of Gear Reductions: | Single | Gear Type: | Worm |
| Center Distance (in): | 2.38 | Input Style: | Solid Shaft |
| Output RPM: | 58.3 | Input Keyway: | 3/16 X 1.31 in |
| Mounting Style: | No Base | Input HP @ 1750 RPM: | 1.45 |
| Assembly: | U-R | Output Shaft Assembly Code: | R |
| Input RPM: | 1, 75 | Service Factor: | 1 |
| Model Code: | 237U | Reducer: | Worm - Right Angle |
| Output Diameter (in): | 1.125 in | Series Code: | Raider |
| Product Type: | Worm Speed Reducer | Input Diameter (in): | 0.75 in |
| Output Shaft Direction: | Right | Housing Material: | Cast Iron |
| Overhung Load Rating (Output Shaft(lb)): | 843 lb | Output Torque Rating (in-lb): | 1423 in-lbs @1750 input RPM in/lbs |
| Output Shaft: | Solid Shaft | UPC: | 6, 62288E+11 |
| Weight: | 40.00 LB |
